Configuration Chapter 7
WinLink 1000 User Manual Release 1.9.40 7-7

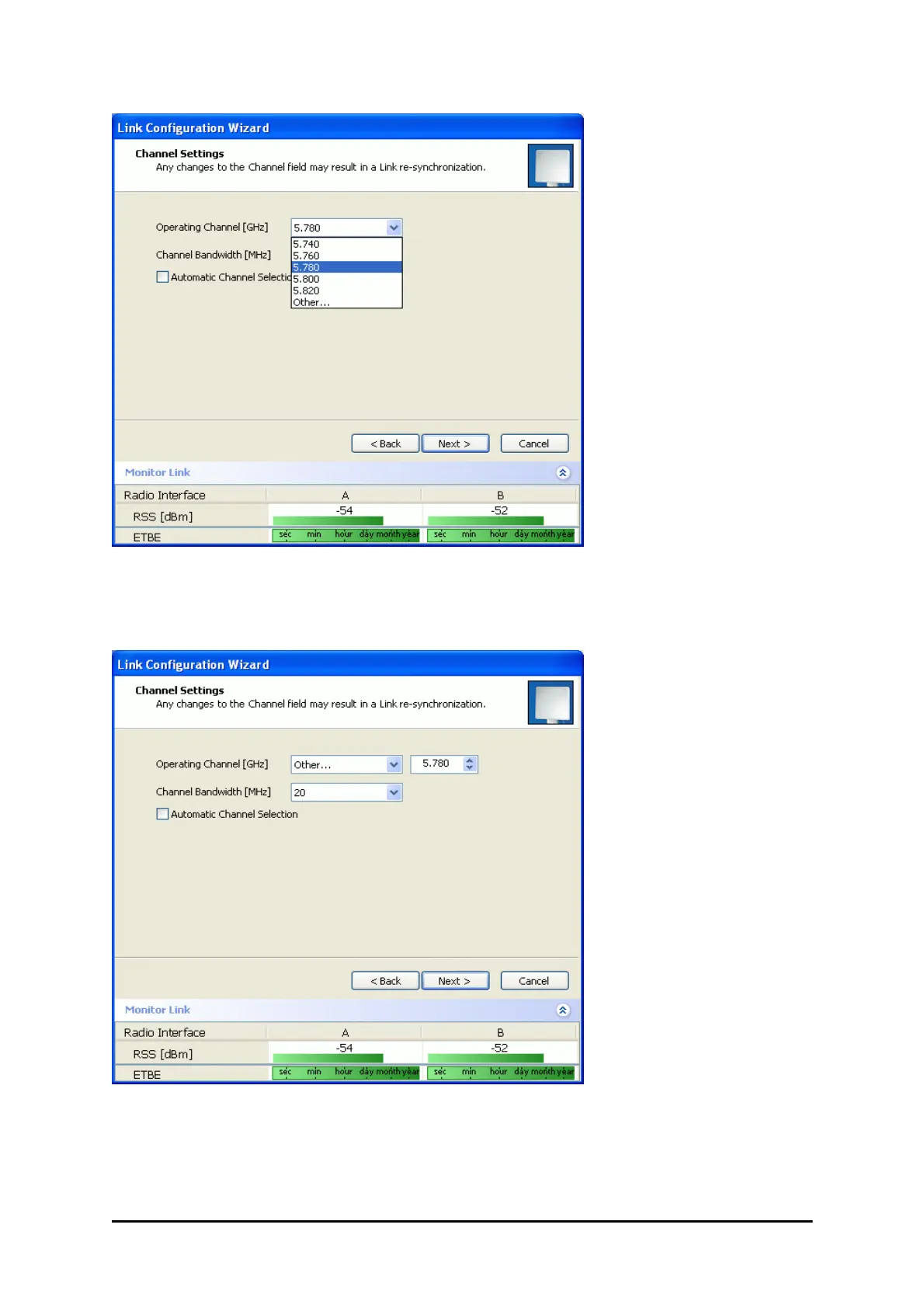

Figure 7-6: Channel frequency options
Selecting one of the frequencies presented returns you to the status of Figure 7-5 with the
appropriate change. If you choose Other..., the following window opens:
Figure 7-7: Choosing an “Other” Operating Channel frequency
The right hand drop-down list (showing the current Operating Channel) allows you to fine-
tune the frequency in increments of ±5MHz within a range of the operating band, which in
this example is 5.740 - 5.835GHz.

Radwin WinLink 1000 Specifications

General

Product Type	Wireless Access Point
Max Throughput/Maximum Data Rate	100 Mbps
Range	Up to 30 km
MIMO Technology	2x2 MIMO
Ethernet Ports/Interface	1 x 10/100/1000 Mbps Ethernet
Modulation	OFDM
IP Rating	IP67
Frequency Band	5 GHz
Power Supply	48VDC
Security	AES 128
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
