ODU/HSS Unit Connection Pinout Chapter 10
WinLink 1000 User Manual Release 1.9.40 10-7

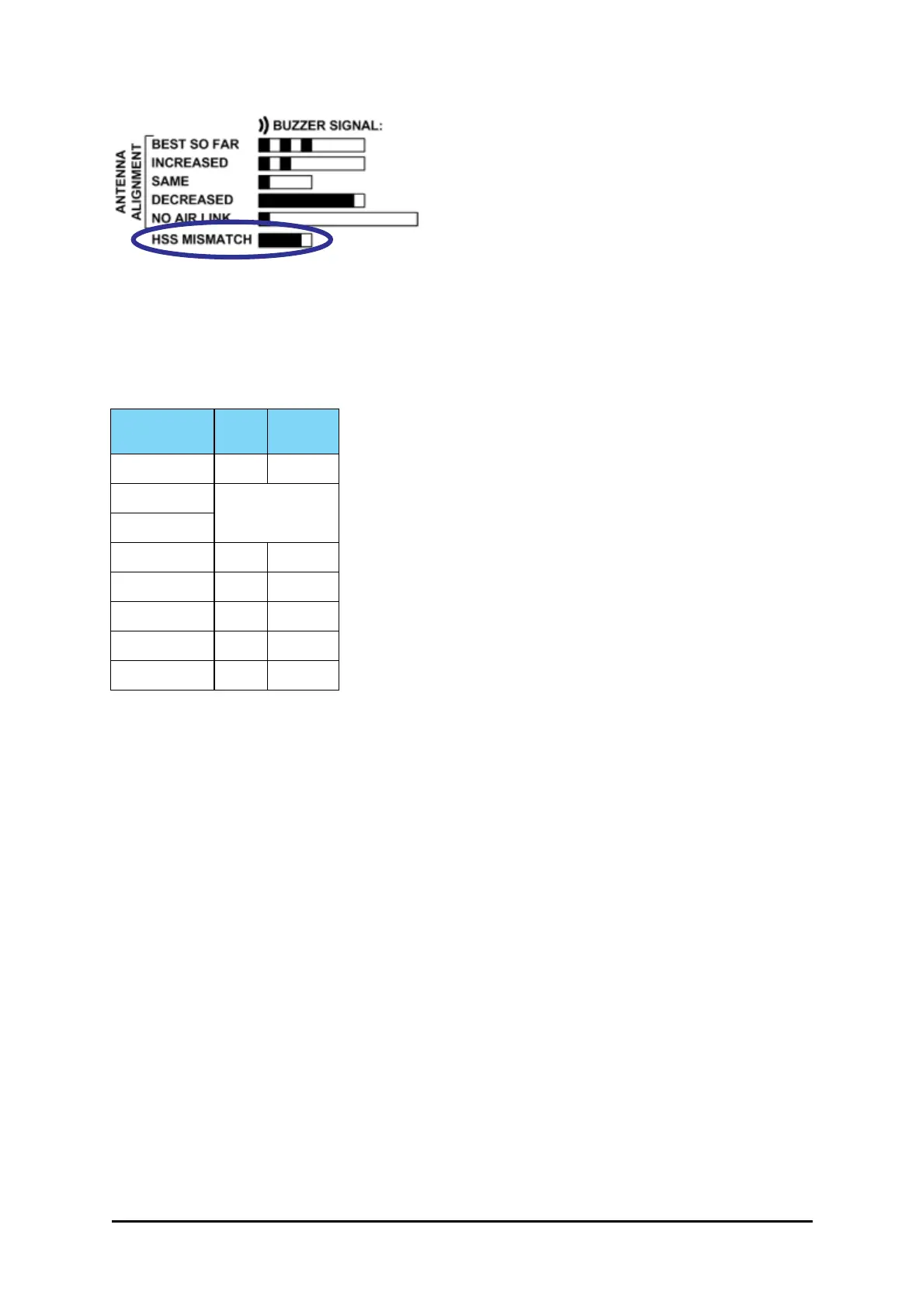

Figure 10-9: ODU beep for HSS Error
ODU/HSS Unit Connection Pinout
Radio Frame Pattern (RFP)
A Radio Frame Pattern (RFP) is the cycle duration of transmit and receive of the air-frame.
Without HSS
When selecting TDM or Ethernet services, the system automatically and transparently
chooses the optimal RFP. When TDM and Ethernet services are configured, the RFP is opti-
mized for TDM.
RFP and HSS
When HSS is used, the RFP for the collocated radios must be selected manually.
Both WinLink 1000 and RADWIN 2000 use the Time Division Duplex (TDD) mechanism.
Under HSS, TDD enables synchronization of transmission for the collocated units as shown in
Figure 10-10:
Table 10-1: ODU/HSS Unit Connection Pinout
Color
ODU
RJ-45
HSS UNIT
RJ-45
White/Green 1 1
Green
Not connected
White/Orange
Orange 6 6
Blue 4 4
White/Blue 5 5
White/Brown 7 7
Brown 8 8
