System Operation description Chapter 12
WinLink 1000 User Manual Release 1.9.40 12-14

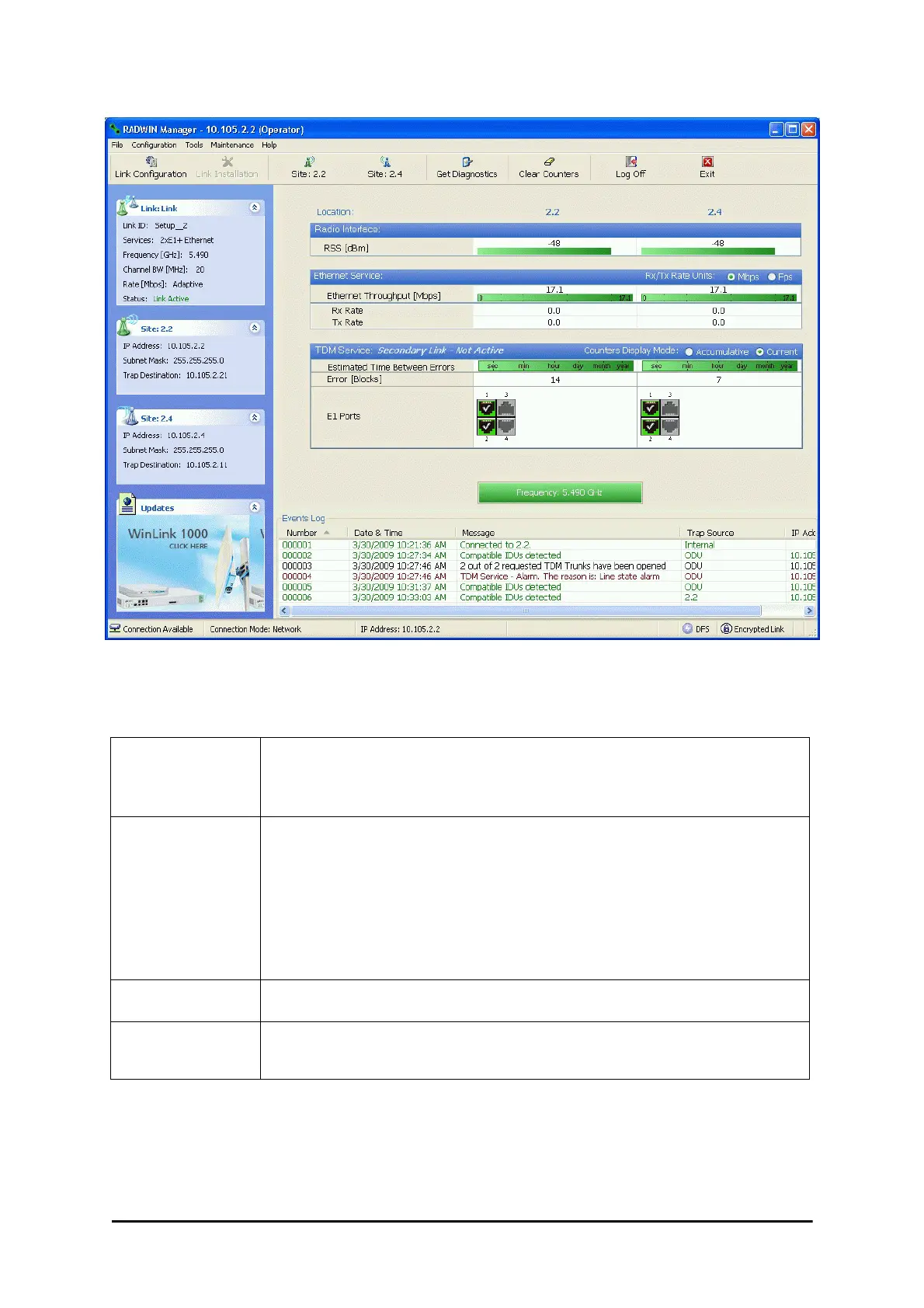

Figure 12-12: Secondary Link operating after the switch back to Primary
System Operation description
Normal operation
• TDM services are carried by the primary link
• The secondary link (equipment and air interface) is operating but not carrying user traffic
• TDM ports on the secondary IDUs are tri-state
Switching to backup
• Switching to secondary will occur in the following cases:
• Loss of the primary air interface due to sync loss
• Loss of the primary air interface due to failure of the receiver to acquire expected
TDM data during a period of 24ms
• Primary equipment power off (either ODU or IDU, local or remote)
• The switching result would be:
• TDM ports on the primary IDUs turn to tri-state
• TDM ports on the secondary IDUs become active
Backup operation • TDM services are carried by the secondary link
Switching back to
primary
• Switching back to primary will occur as soon as the Primary link is fully functional for 1
second

Radwin WinLink 1000 Specifications

General

Product Type	Wireless Access Point
Max Throughput/Maximum Data Rate	100 Mbps
Range	Up to 30 km
MIMO Technology	2x2 MIMO
Ethernet Ports/Interface	1 x 10/100/1000 Mbps Ethernet
Modulation	OFDM
IP Rating	IP67
Frequency Band	5 GHz
Power Supply	48VDC
Security	AES 128
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
