Tip: How to Recover a Forgotten ODU IP Address Chapter 19

WinLink 1000 User Manual Release 1.9.40 19-6

Tip: How to Recover a Forgotten ODU IP Address

If you have an ODU with lost or forgotten IP address, use the above procedure to log on to it

using Local Connection. The IP address will appear in the left hand status area:

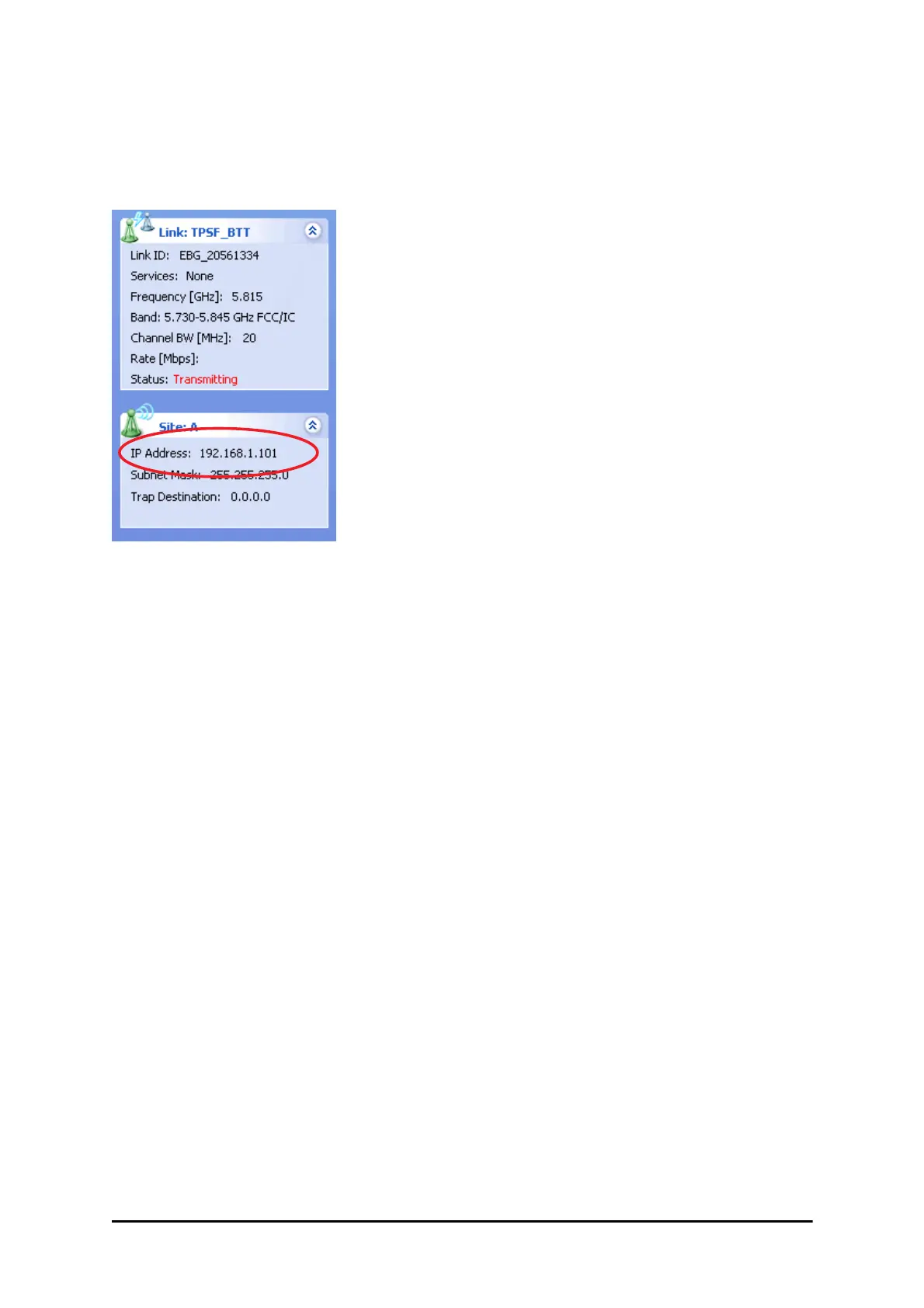

Figure 19-8: Existing IP address displayed after log-on with Local Connection
