HSS Status LED on the IDU-C and New Style IDU-E
The IDU-C and IDU-E have a front panel HSS status LED:
Link Configuration and HSS
For WinLink 1000 HSS-enabled units and all RADWIN 2000 units, the Hub Site Synchroniza-
tion Settings dialog box appears in both the Link Installation and Configuration Wizards.

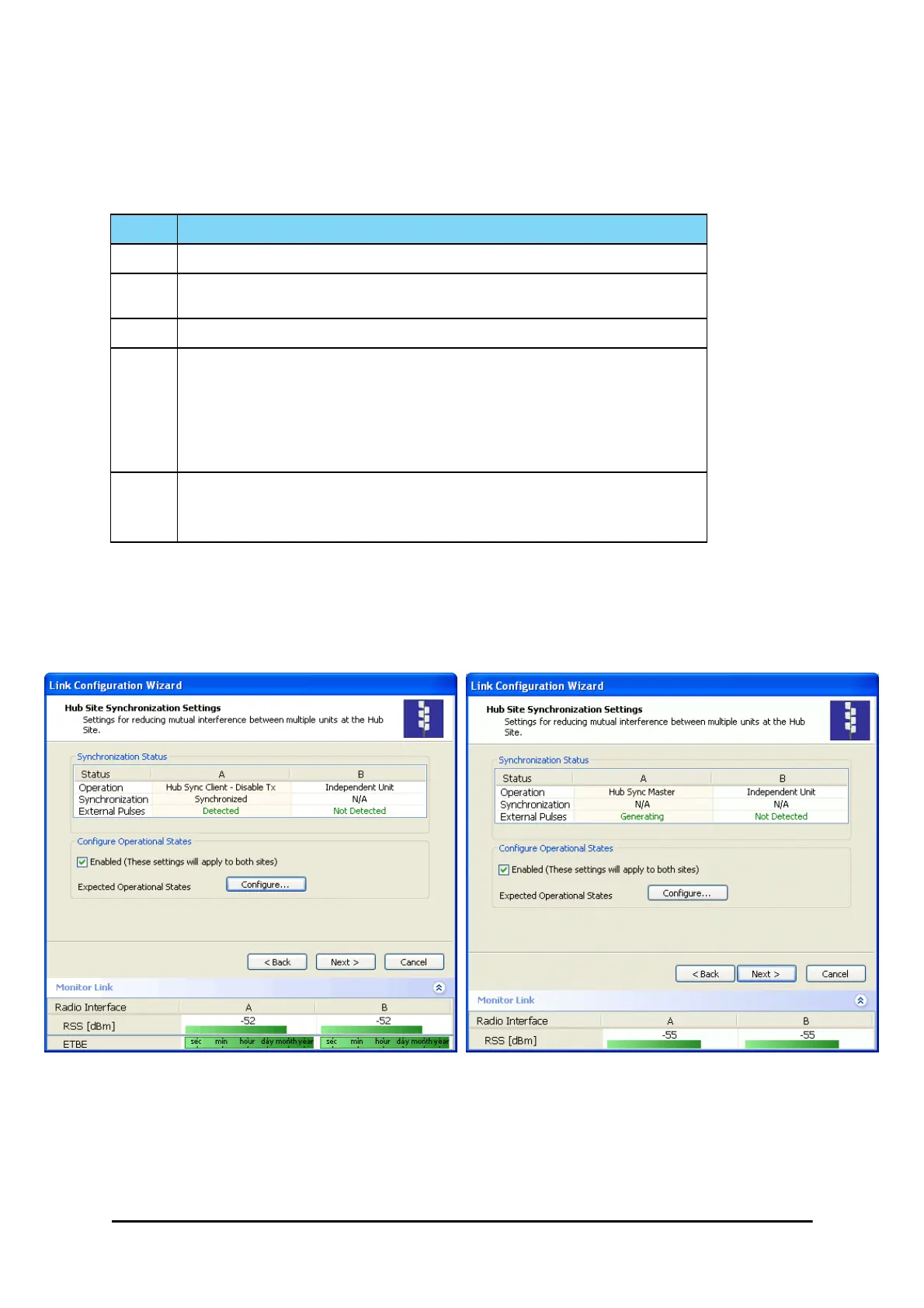

Figure 10-13: HSS Settings: Left - WinLink 1000 client, Right - RADWIN 2000 master
The Synchronization Status dialog box displays the current status of each side of the link.
• Operation: Type of unit
• Hub Sync Master (HSM)
• Hub Sync Client - Disable Transmission (HSC-DT)
Table 10-5: IDU-C and New Style IDU-E Front Panel LEDs for HSS
Color Function
Green This ODU is HSS master, generating signal, and HSS Sync is OK
Blinking
Green
This ODU is a HSS client and in Sync
Red HSS not operational due to improper signal detection. This ODU is not transmitting
Orange
HSS is operational. One of the following conditions apply:
• This ODU is a master that is generating signals and detecting signals
• This ODU is a master that is generating signals but detected improper signals
• This ODU is a client “Continue Tx” but is not detecting signals
• This ODU is a client “Disable Tx” and is detecting signals from multiple sources
All orange cases transmit.
Off
HSS is not activated
HSS is not supported (WinLink 1000 only)
Disconnection between ODU and IDU
