Installation Chapter 5
WinLink 1000 User Manual Release 1.9.40 5-14
Ethernet Ring
To install and use the Ethernet Ring feature, see Chapter 13.
Setting the TDM Jitter Buffer
To set the TDM Jitter Buffer size:
1. Click the TDM Jitter Buffer tab. The following dialog appears:

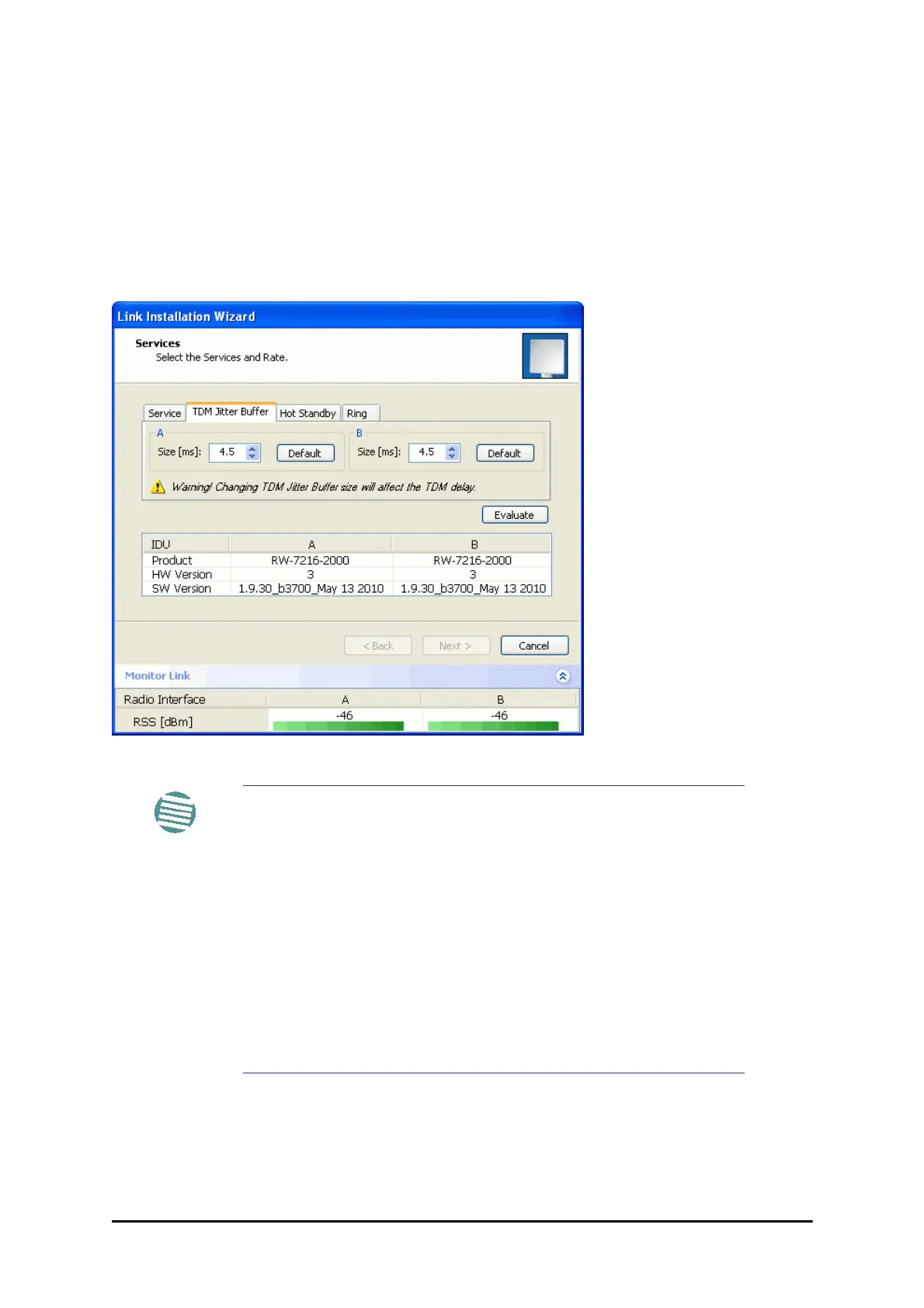

Figure 5-16: TDM Jitter Buffer Configuration
Note
• The receiver jitter buffer for each site can be enlarged,
thereby increasing system resistance to interference (the
larger the jitter buffer, the longer the interference period
that the system will overcome without TDM errors).
• You can also decrease the jitter buffer to decrease the sys-
tem delay.
• The jitter buffer can be configured between 2.0 and 16.0
ms.
• After setting the new value you must evaluate the expected
quality. During the evaluation the ETBE (Expectecd Time
Between Errors) bar is displayed. You select either Next,
which performs the change or Back to cancel the change.
Notice that the Jitter Buffer is configured per site.
