Radwin WinLink 1000 User Manual

ODU Package Contents Chapter 3
WinLink 1000 User Manual Release 1.9.40 3-3
• the RADWIN Manager
• Quick Start Guide
• User Manual - the document you are reading
• Link Budget Calculator
• Label showing the MAC address and the alternative Community string. The label is
self-adhesive. You should keep this label safe
• Cable glands (to be used with the ODU-IDU cable)

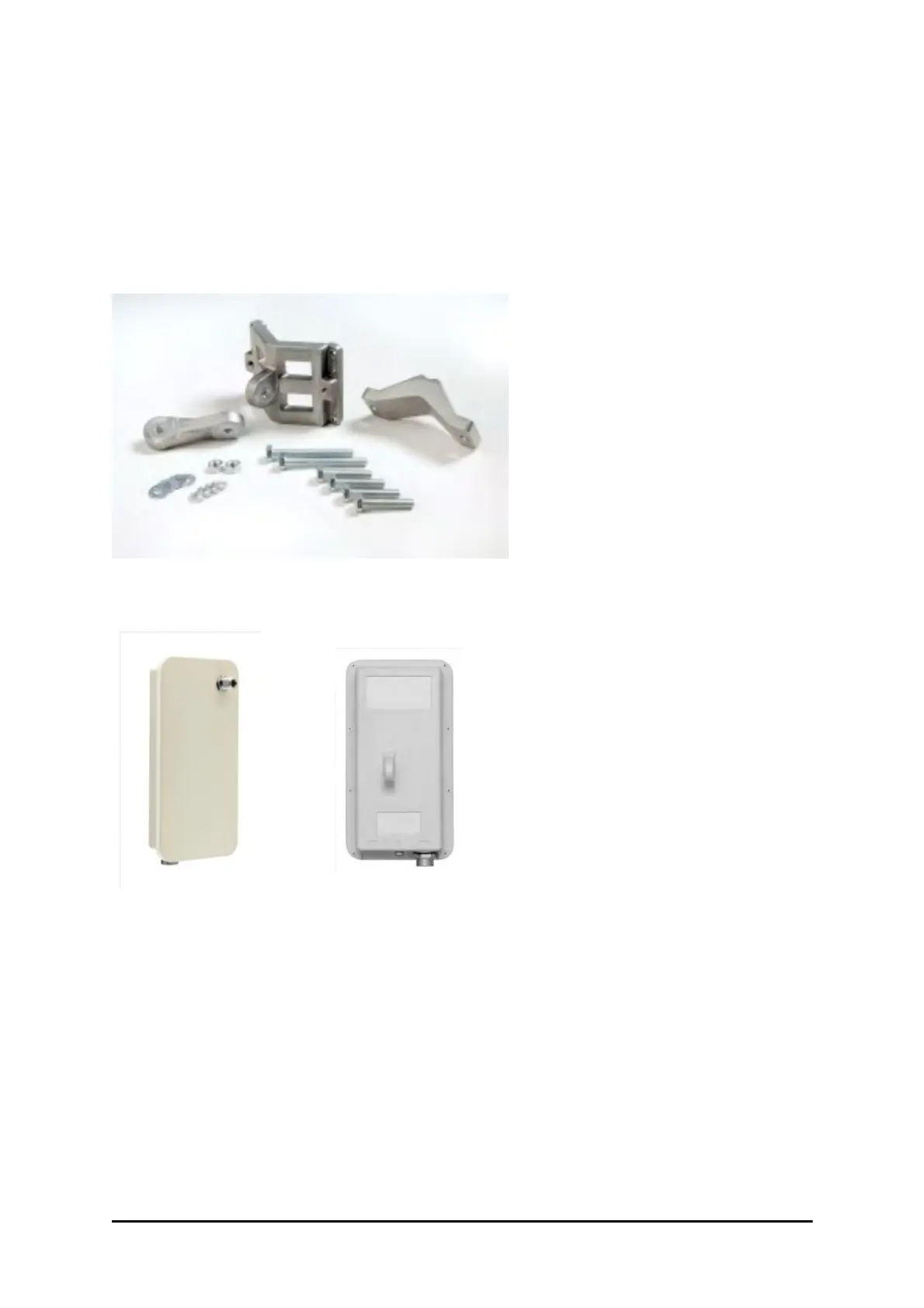

Figure 3-1: ODU Mounting kit
Figure 3-2: Connectorized ODU - Front and rear views
ODU - Front View ODU - Rear View

Radwin WinLink 1000 Specifications

General

Brand	Radwin
Model	WinLink 1000
Category	Wireless Access Point
Language	English
