Installing Cascaded Links Chapter 24

WinLink 1000 User Manual Release 1.9.40 24-2

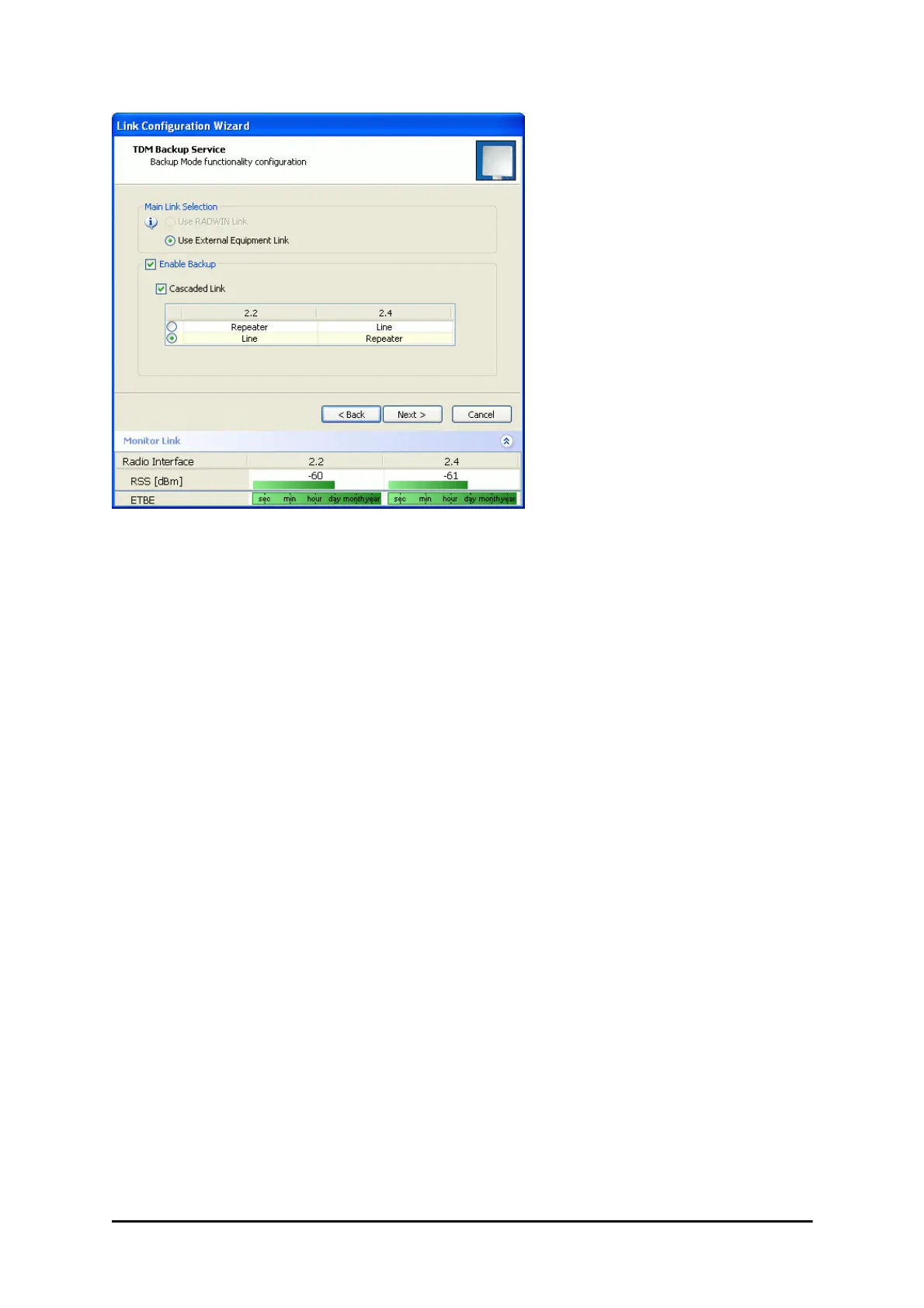

Figure 24-2: Configuring an IDU-R in a cascaded link

To backup a single hop, leave Cascaded Link unchecked. In a cascaded situation, check it

and then chose the Line / Repeater combination that reflects your setup.

You should repeat this procedure for the second link, making sure that your definition of Line

/ Repeater IDU-Rs is consistent.
