Muting the alignment tone buzzer Chapter 8
WinLink 1000 User Manual Release 1.9.40 8-25
4. From the Open File dialog box, navigate to your backup storage area and choose file
to upload. Click OK.
Muting the alignment tone buzzer
The ODU alignment tone becomes audible as soon as power is supplied, and continues until
the ODUs are aligned and the link established.
It is possible to mute the tone during regular operation of the link. It must be enabled when
performing the alignment procedure.
To mute the alignment tone buzzer:
1. Choose a site. The Configuration dialog box opens.
2. In the Configuration dialog box, click the Buzzer button.

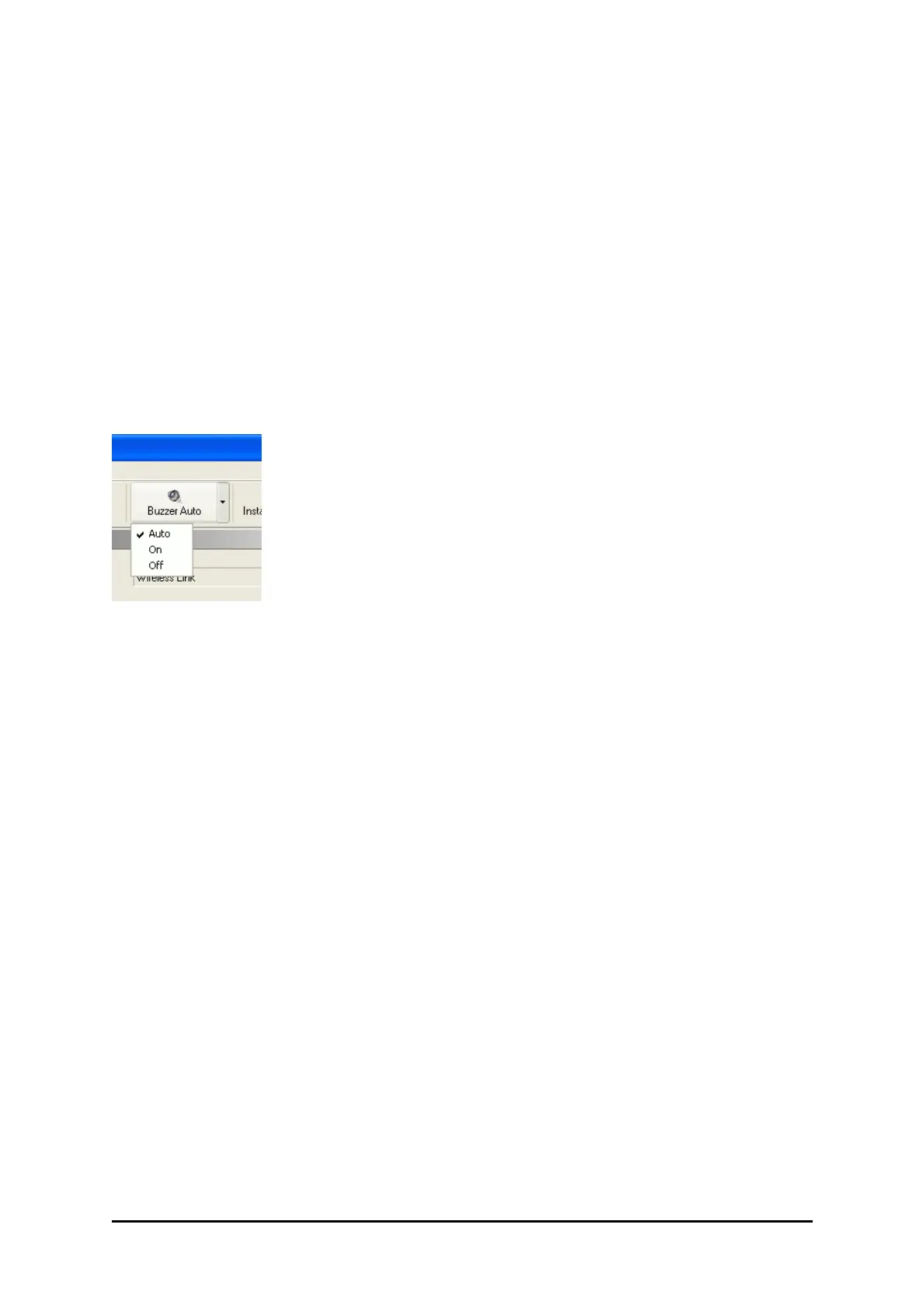

Figure 8-21: Alignment tone buzzer states
3. Click Off. The tone is disabled.
To restore the alignment tone buzzer:
1. Choose a site. The Configuration dialog box opens.
2. Click On to have the buzzer beep continuously or Auto to have the buzzer beep only
in install mode.
Configuration with Telnet
A Telnet terminal can be used to configure and monitor the WinLink 1000.
To start a Telnet session, use telnet <ODU_IP>.
For example, if you run Telnet as follows,
telnet 192.168.2.101
you will be asked for a user name and password.
The Telnet log on user name is the password that you used to enter the RADWIN Manager
(for example, the default: admin). The Telnet password is the corresponding Community
string (default: netman).
