PoE-8 Package Containing: Chapter 3
WinLink 1000 User Manual Release 1.9.40 3-5

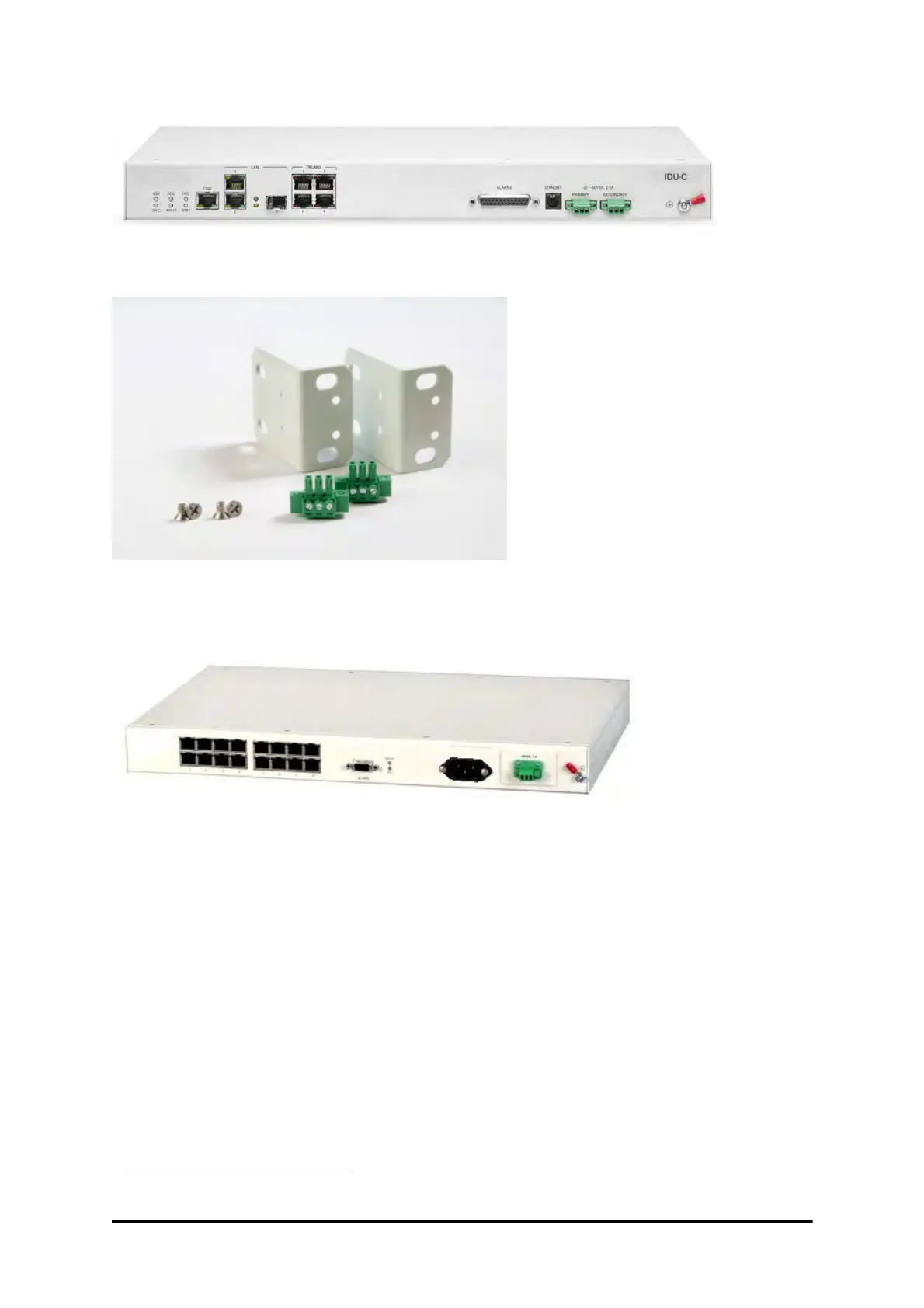

Figure 3-6: IDU-C Package contents - the IDU-C, 4 E1/T1 ports
1
Figure 3-7: IDU-C Package contents - the mounting kit and DC power plugs
PoE-8 Package Containing:
Figure 3-8: PoE-8 Unit
• PoE-8
• 110/240 VAC with IEC 60320 socket cable
• 3-prong terminal block connector (green)
• 19" mounting kit
1. The IDU-C is available with 0, 4, 8 or 16 TDM ports. WinLink 1000 supports 0 or 4 TDM ports.
