The Outdoor Unit (ODU) Chapter 1
WinLink 1000 User Manual Release 1.9.40 1-7

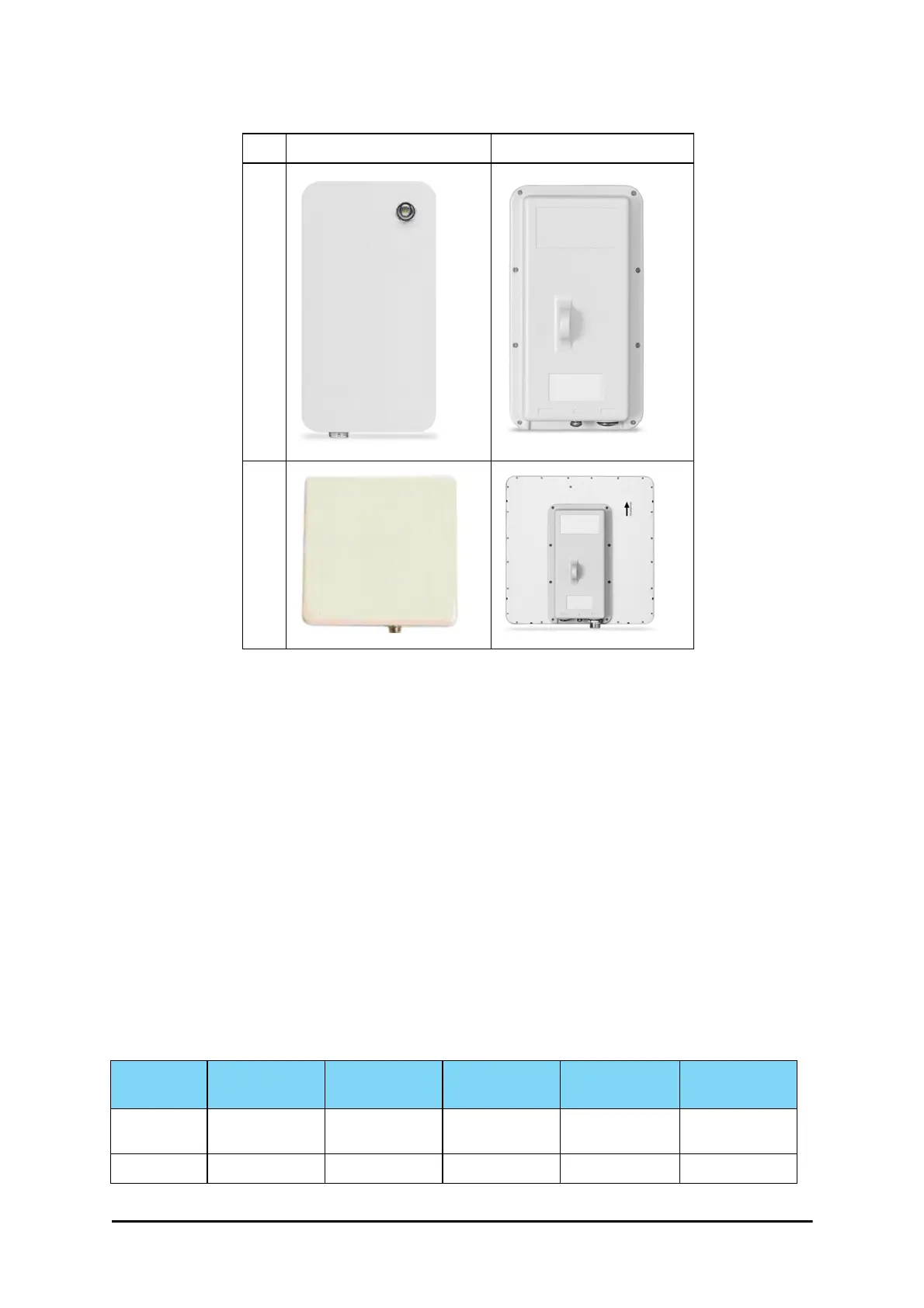

Figure 1-8: ODU Form Factors
• Integrated Antenna ODU
This ODU has an integrated 370mm (1.2ft) flat panel antenna. The ODU contains both
the radio and the antenna as a single unit housed in a weatherproof case.
• Connectorized ODU
This ODU has one N-type connector for connecting an external antenna.
There are five series of WinLink 1000 ODU’s:
• WinLink 1000 Access
• WinLink 1000 Access Pro
• WinLink 1000 VS
• WinLink 1000
• WinLink 1000 High End
The following table shows the differences between the four systems:
Front Rear
ConnectorizedIntegrated
Table 1-1: ODU Series Typical Characteristics
WinLink 1000
Access
WinLink 1000
Access Pro
WinLink 1000
VS
WinLink 1000
WinLink 1000
High End
Max Ethernet
Throughput
2Mbps 6Mbps 2/5 Mbps 18Mbps 18Mbps
Max. Range 20Km 80Km 20Km 80Km 80Km
