Radwin WinLink 1000 User Manual

BDU Package Contents Chapter 3
WinLink 1000 User Manual Release 1.9.40 3-6
BDU Package Contents

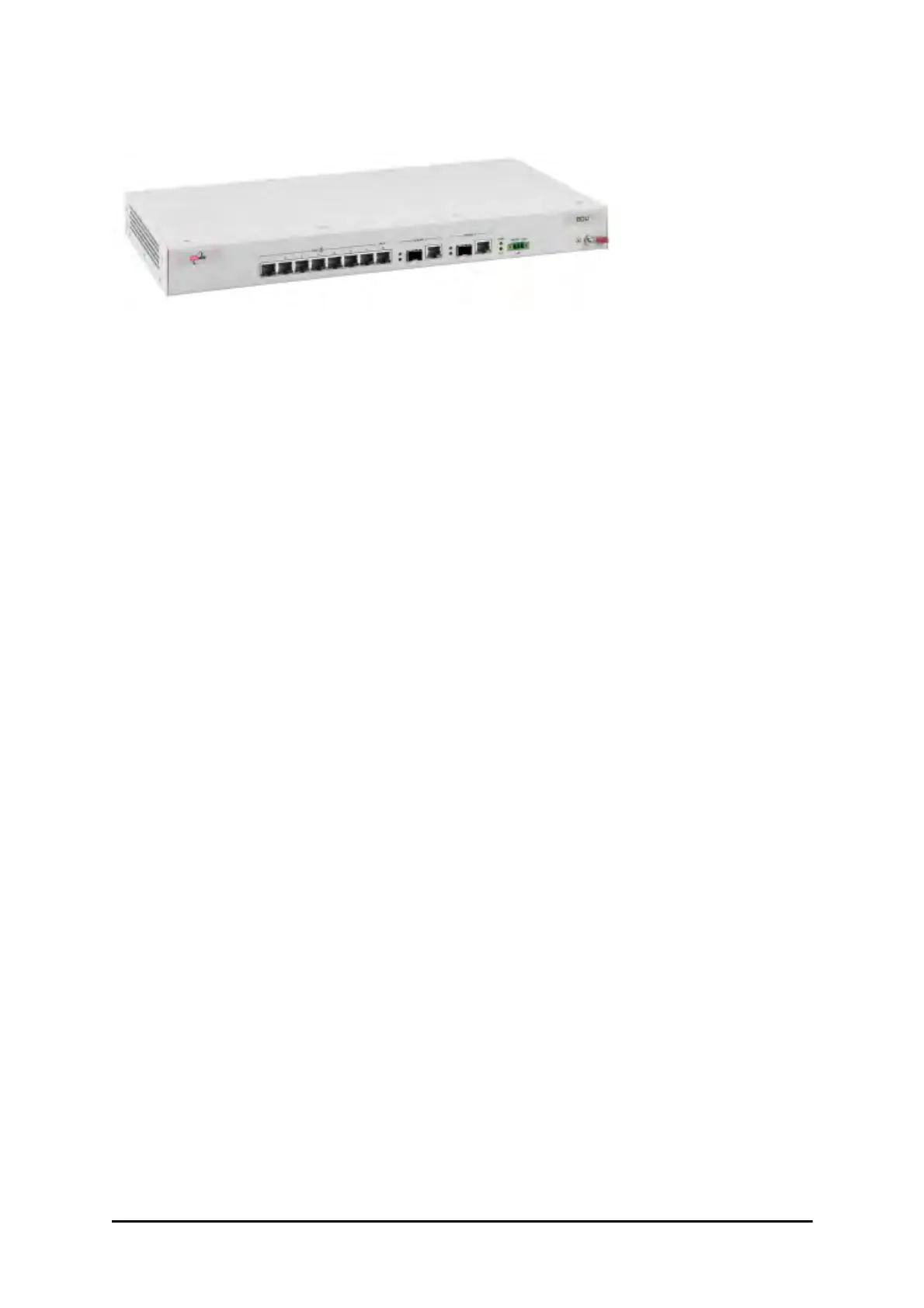

Figure 3-9: RADWIN BDU
• BDU
• 19” rack mounting kit - see Figure 3-7
• DC power plug for power cable
External Antenna Package Contents
• Antenna
• RF cable 1m (3’) long; two cables supplied with bipolar antennas, single cable sup-
plied with monopolar antennas
• Mounting kit
Additional Tools and Materials Required
The following is a list of the equipment and materials required to install WinLink 1000 hard-
ware.
Tools and Materials
• Crimping tool for RJ-45 (if the ODU-IDU cable is without connectors)
• Spanner/wrench 13 mm (½”)
• Drill (for wall mounting only)
• Cable ties
• Sealing material
Cables and connectors
• ODU grounding cable 12AWG
• IDU grounding cable 18AWG
• ODU-IDU cable (outdoor class, CAT-5e, 4 twisted pairs, 24AWG)
• For PoE based links: A crossed Ethernet LAN cable
• O-PoE 10AWG grounding cable if applicable
• BDU grounding cable 18AWG if applicable
Hardware Installation Sequence
The following steps are required to install the WinLink 1000 system:
1. Mounting the ODUs, page page 3-8.
