Radwin WinLink 1000 User Manual

TDM MHS Status Chapter 8
WinLink 1000 User Manual Release 1.9.40 8-21
TDM MHS Status
Here you can see the TDM MHS status. There is nothing to set.

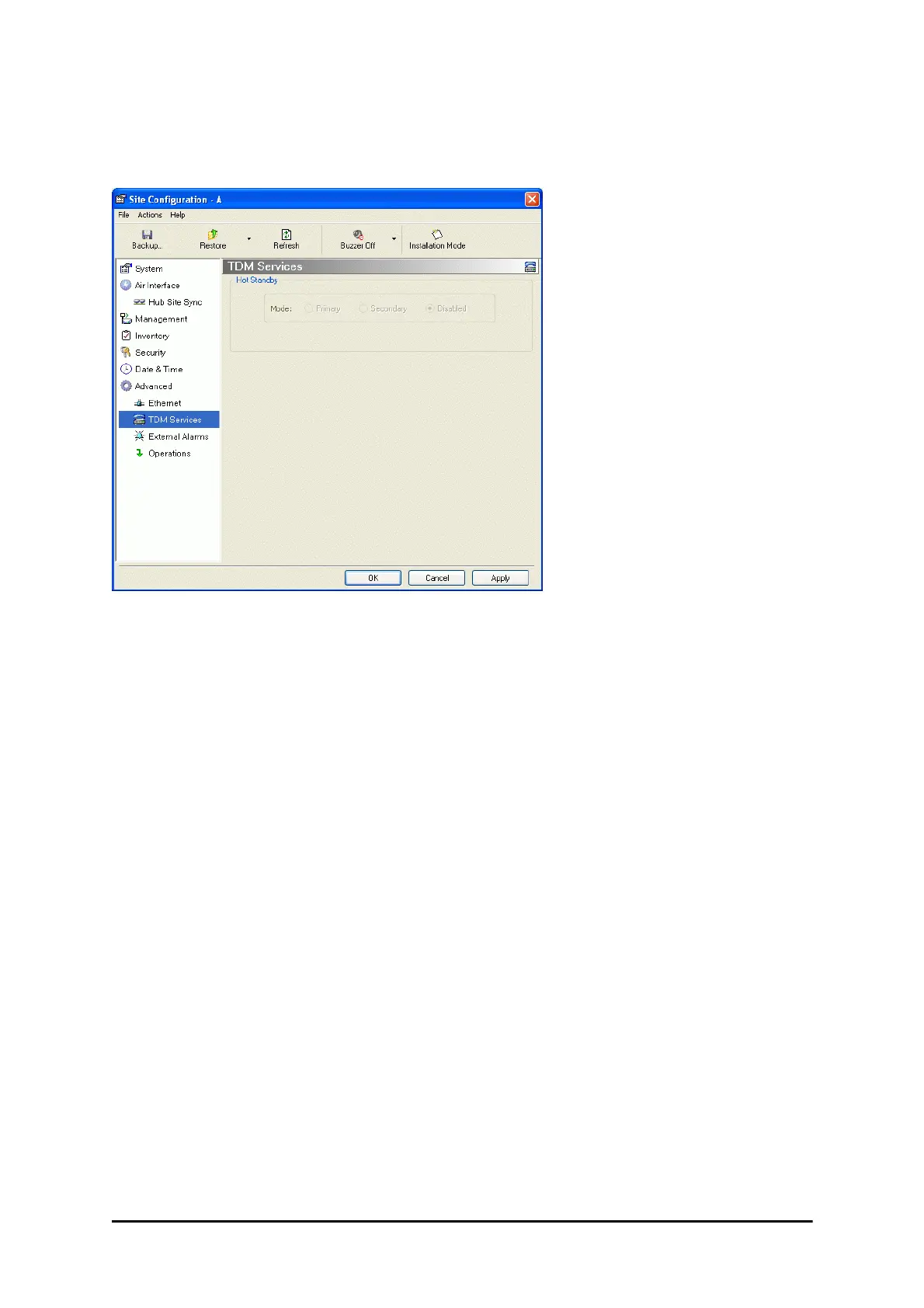

Figure 8-18: TDM MHS status
Setting External Alarm Inputs
The IDU-C, IDU-R, IDU-E-AL and the new style IDU-E have four external alarm inputs and
four external alarm outputs in the form of dry-contact relays. The Alarm interface is located
on the front panel of the IDU-C and is a 25-pin D-type female connector. See Appendix B,
for wiring specifications and pinout. You may enable or disable each of the alarms and config-
ure the alarm description text appearing in the alarm trap message. The ODU sends the
alarm within less than a second from actual alarm trigger.
 To set the external alarm inputs:
1. Choose External Alarms from the Site Configuration window.

Radwin WinLink 1000 Specifications

General

Product Type	Wireless Access Point
Max Throughput/Maximum Data Rate	100 Mbps
Range	Up to 30 km
MIMO Technology	2x2 MIMO
Ethernet Ports/Interface	1 x 10/100/1000 Mbps Ethernet
Modulation	OFDM
IP Rating	IP67
Frequency Band	5 GHz
Power Supply	48VDC
Security	AES 128
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
