Configuring the Bridge Chapter 8
WinLink 1000 User Manual Release 1.9.40 8-16

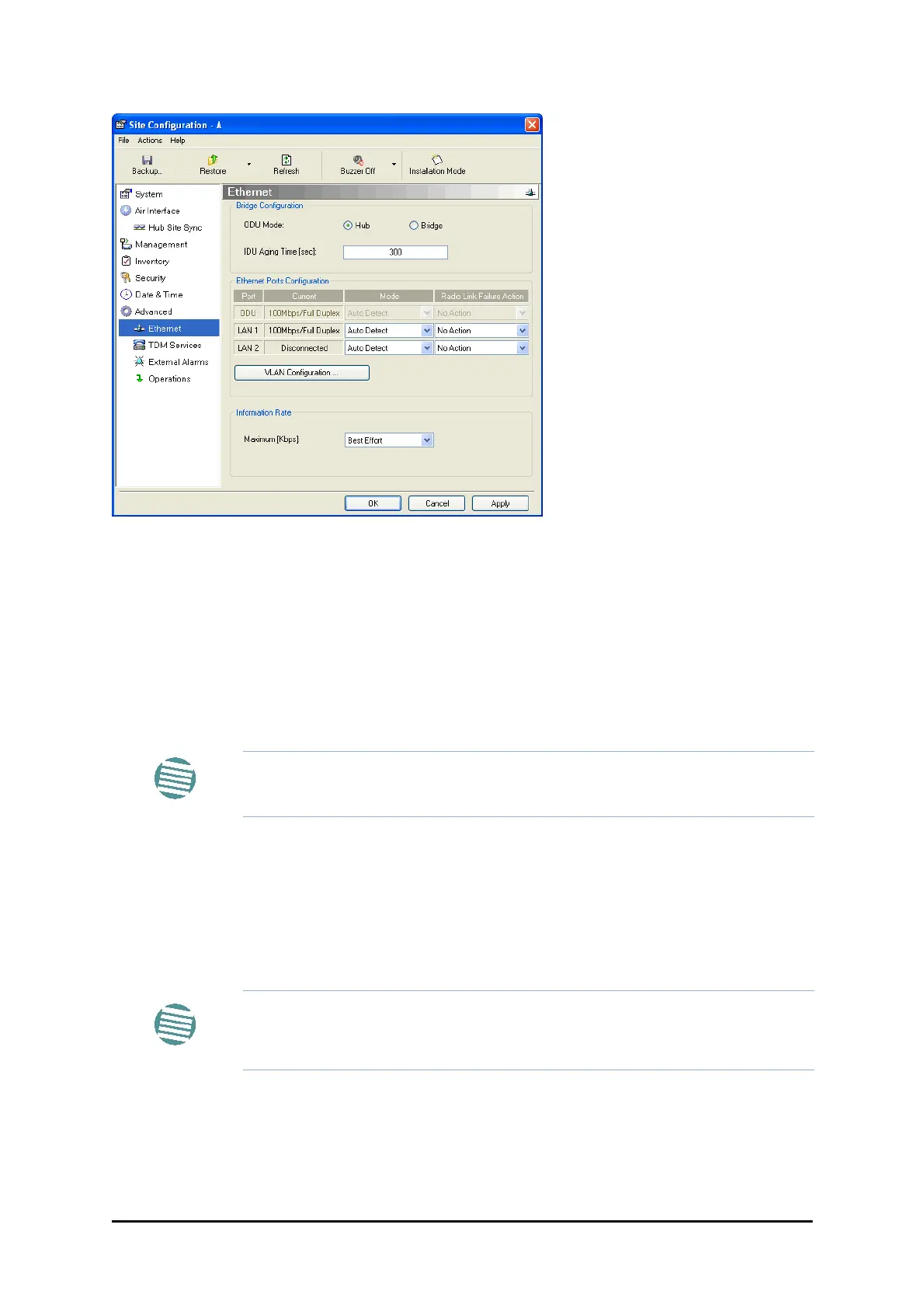

Figure 8-14: Bridge, VLAN and MIR Configuration
ODU Mode
This parameter controls the ODU mode with two optional values:
• Hub Mode - in Hub mode the ODU transparently forwards all packets over the wireless
link.
• Bridge Mode - In Bridge mode the ODU performs both learning and aging, forwarding
only relevant packets over the wireless link. The aging time of the ODU is fixed at 300
seconds.
IDU Aging time
This parameter controls the IDU aging time.
The aging time parameter controls the time after which each MAC address is dropped from
the MAC address learning table.
The default value is 300 seconds.
Note
Changing these modes requires system reset.
Note
• Any change to these parameters is effective immediately.
• Each side of the link can be configured separately, with different
aging times.
