Security Features Chapter 8

WinLink 1000 User Manual Release 1.9.40 8-9

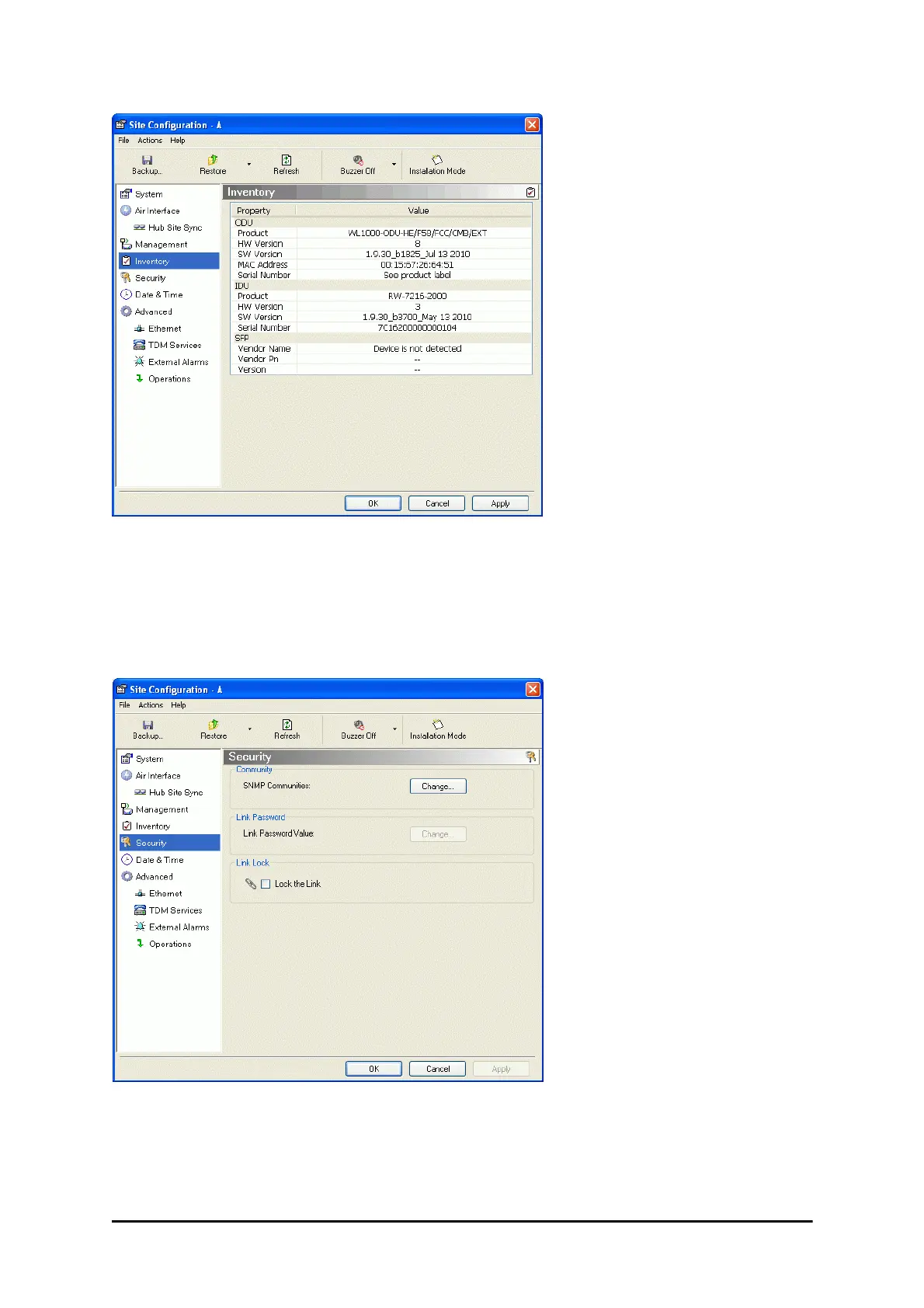

Figure 8-7: Inventory window

Security Features

The Security dialog enables you to change the Link Password and the SNMP Community

strings and use the Link Lock feature:

Figure 8-8: Available security features
