Configuring the GSU Chapter 11

WinLink 1000 User Manual Release 1.9.40 11-7

Using Site Configuration for the GSU

Site Configuration: System

Here is the opening window for Site Configuration:

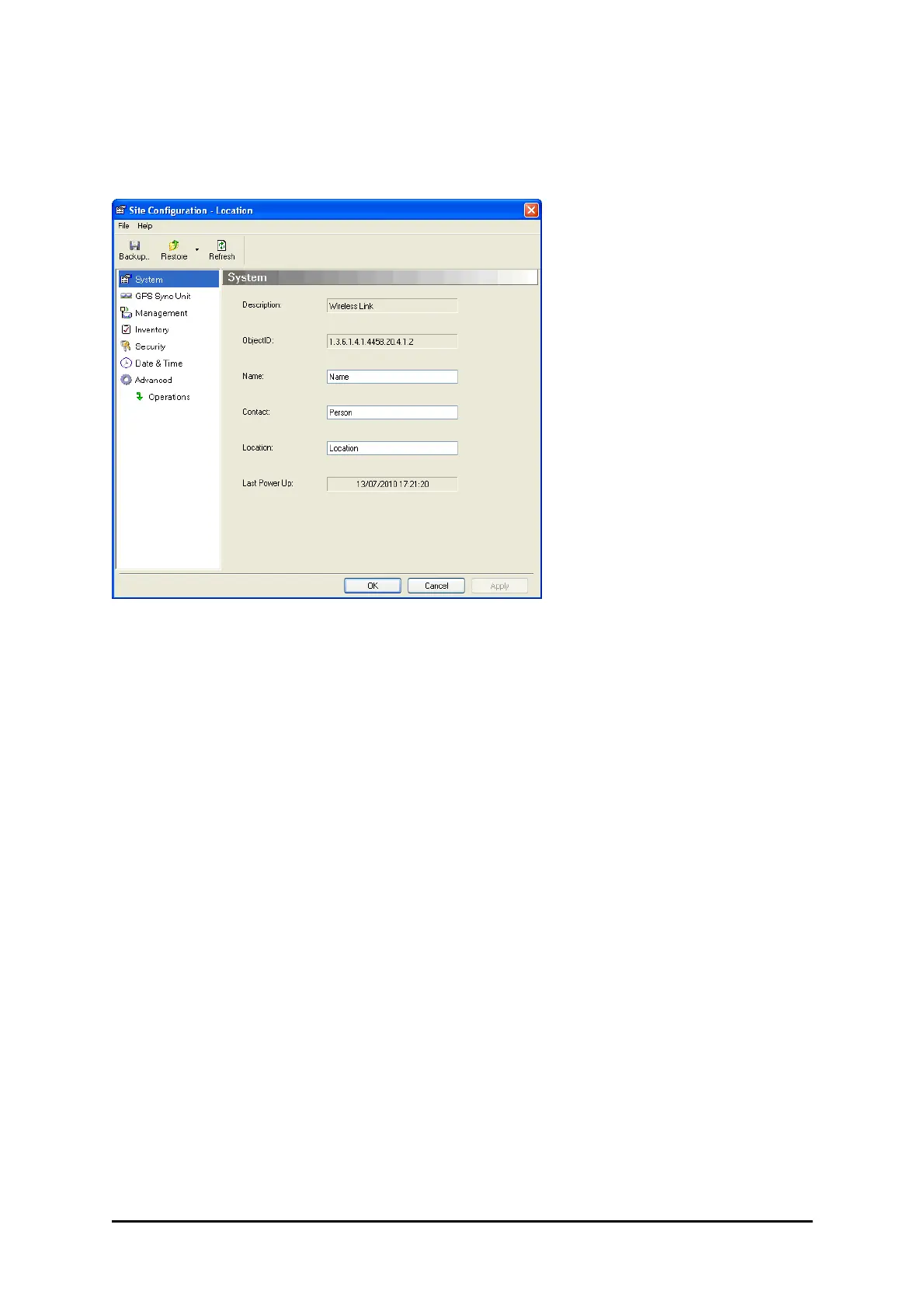

Figure 11-7: Site Configuration: System

It is similar to that of the WinLink 1000.
