Power Over Ethernet (PoE) Devices Chapter 1
WinLink 1000 User Manual Release 1.9.40 1-11
Power Over Ethernet (PoE) Devices
Basic PoE Device
The basic PoE device provides Ethernet service only,
with power for the ODU. The PoE device is extremely
compact, having one Ethernet port, one ODU port and
a standard 3 pin male AC power socket.
It may be used with both WinLink 1000 and RADWIN
2000 radios.

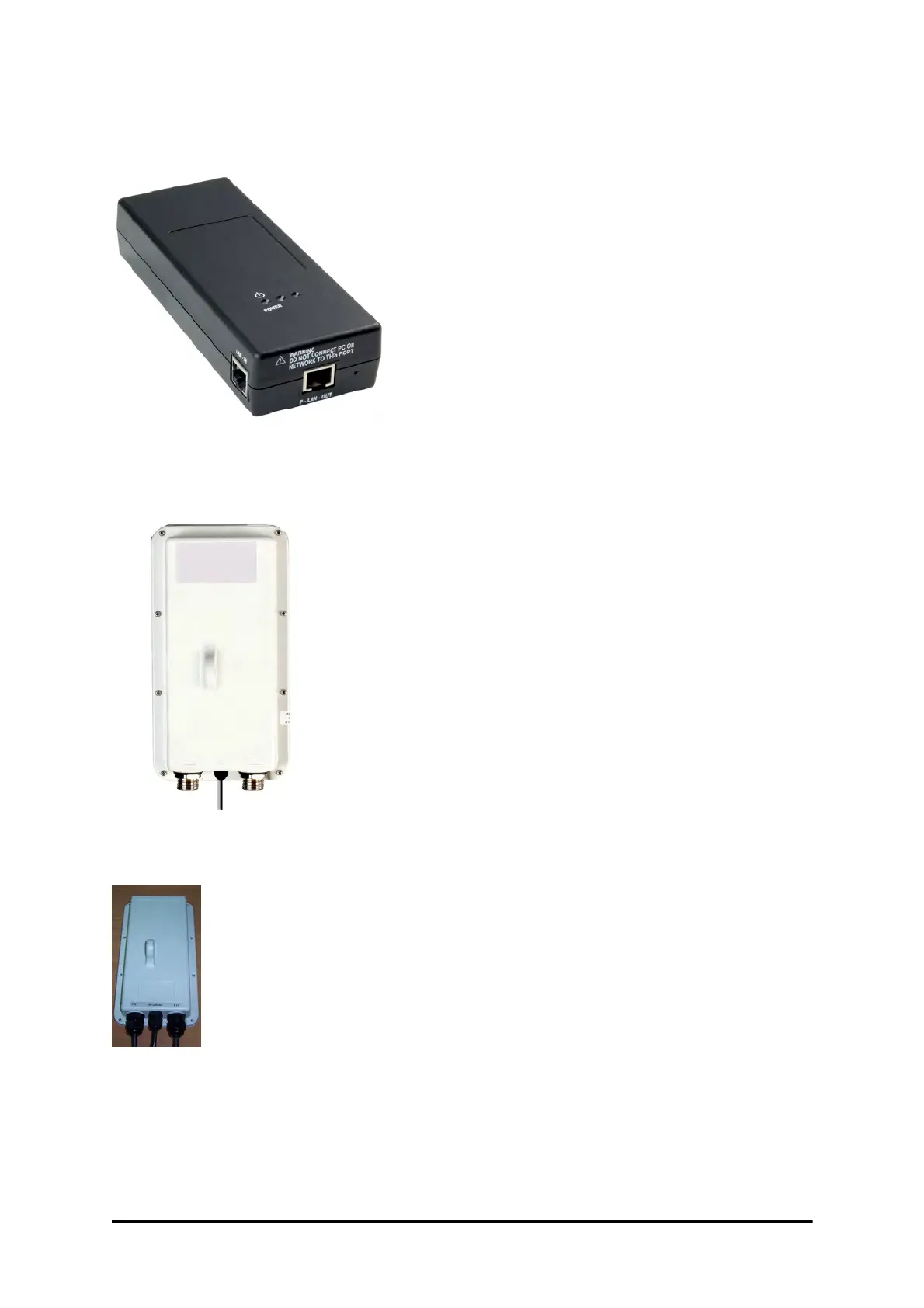

Figure 1-15: Basic PoE device - showing the radio Ethernet port
Outdoor (Ruggedized) DC PoE Device
This unit may be used with both WinLink 1000 and RADWIN
2000 radios.
Figure 1-16: Ruggedized DC-PoE Device: Input is -20 to -60 VDC (single input)
Outdoor PoE Device (OPoE)
The OPoE is similar to the PoE device, with weatherproof casing and sealed con-
nectors that enables outdoor connectivity (a special mounting kit is supplied for
attachment to a mast).
This unit can only be used with WinLink 1000 radios.
Figure 1-17: O-PoE device: Input is mains AC power
PoE-8
The PoE-8 is a 19 inch, 1U metal unit providing 8 Ethernet ports enabling connection to collo-
cated Ethernet applications. The PoE-8 interfaces with WinLink 1000 ODU units to provide
high-quality network connectivity and power.
