Radwin WinLink 1000 User Manual

The procedure Chapter 19
WinLink 1000 User Manual Release 1.9.40 19-4

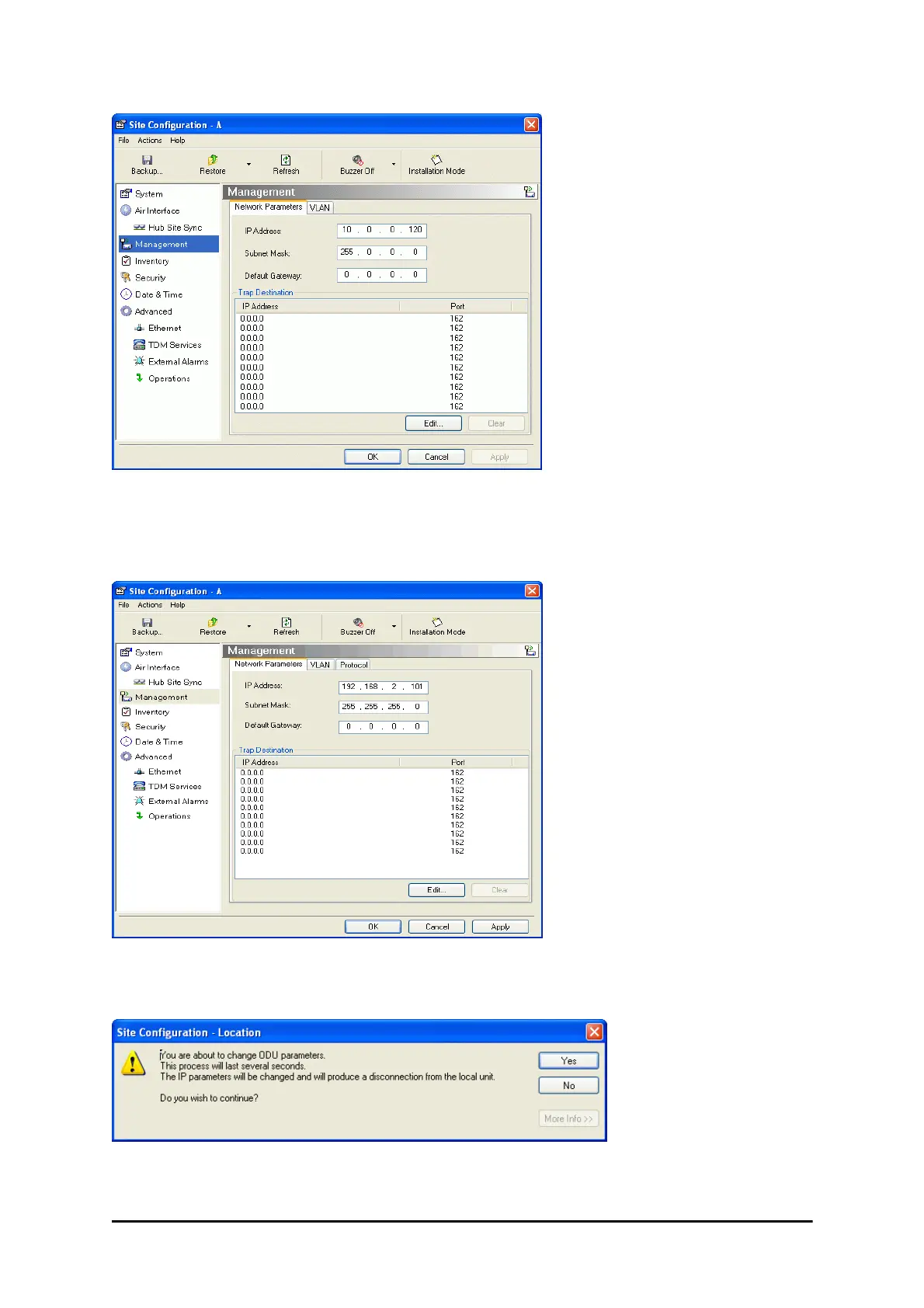

Figure 19-4: Management Addresses - Site Configuration dialog box
10. Enter the IP Address, Subnet Mask and Default Gateway as requested. For example,
the ODU used here is to be configured as follows:
Figure 19-5: ODU with IP Addressing configured
11. Click OK. You are asked to confirm the change:
Figure 19-6: Confirmation of IP Address change

Radwin WinLink 1000 Specifications

General

Product Type	Wireless Access Point
Max Throughput/Maximum Data Rate	100 Mbps
Range	Up to 30 km
MIMO Technology	2x2 MIMO
Ethernet Ports/Interface	1 x 10/100/1000 Mbps Ethernet
Modulation	OFDM
IP Rating	IP67
Frequency Band	5 GHz
Power Supply	48VDC
Security	AES 128
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
