FCC/IC 5.4/5.3 GHz Link Configuration Chapter 16

WinLink 1000 User Manual Release 1.9.40 16-5

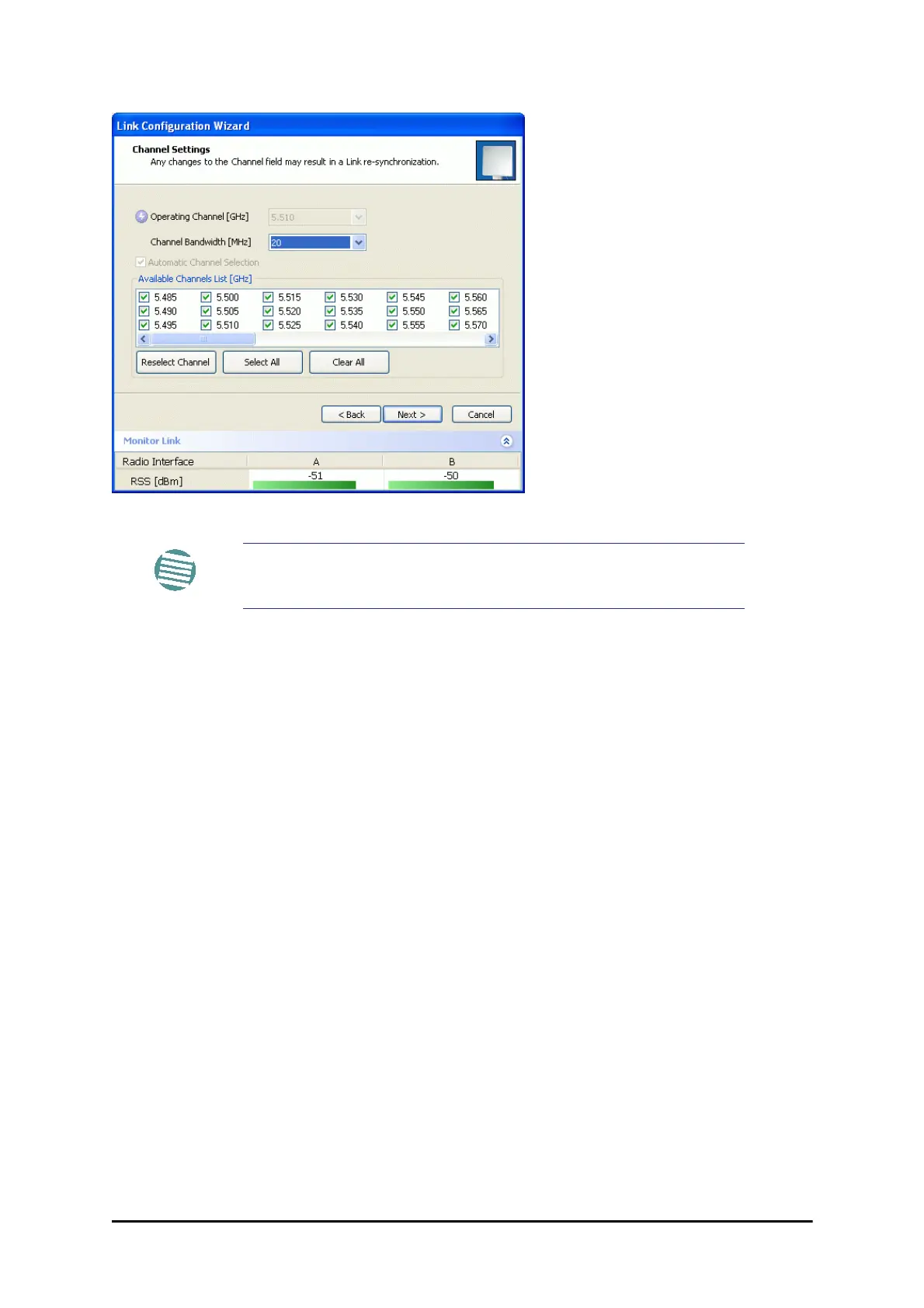

Figure 16-5: Channel Select dialog box - ACS permanently enabled

Upon completion of the wizard, the Site configuration dialogs can be used in the usual way.

Once operational, the RADWIN Manager window is the same as for other radio equipment

models.

Here is the RADWIN Manager main window upon completion of the wizard:

Note

ACS cannot be disabled.
