Figure 1-20: Typical Multiple Point-to-Point deployment with wireless uplink
The BDU can only be used with WinLink 1000 radios.
GSU
The GPS-based synchronization unit (GSU) is designed to handle inter-site interferences
under large-scale deployment scenarios.
The GSU is an outdoor unit consisting of a standard WinLink 1000 enclosure, a GPS antenna
and a PoE device.
The GSU is connected to the HSS Unit using a standard HSS cable. It synchronizes the trans-
mission timing of multiple Hub-Sites to the same clock source thus eliminating mutual inter-
ference (see Chapter 11).

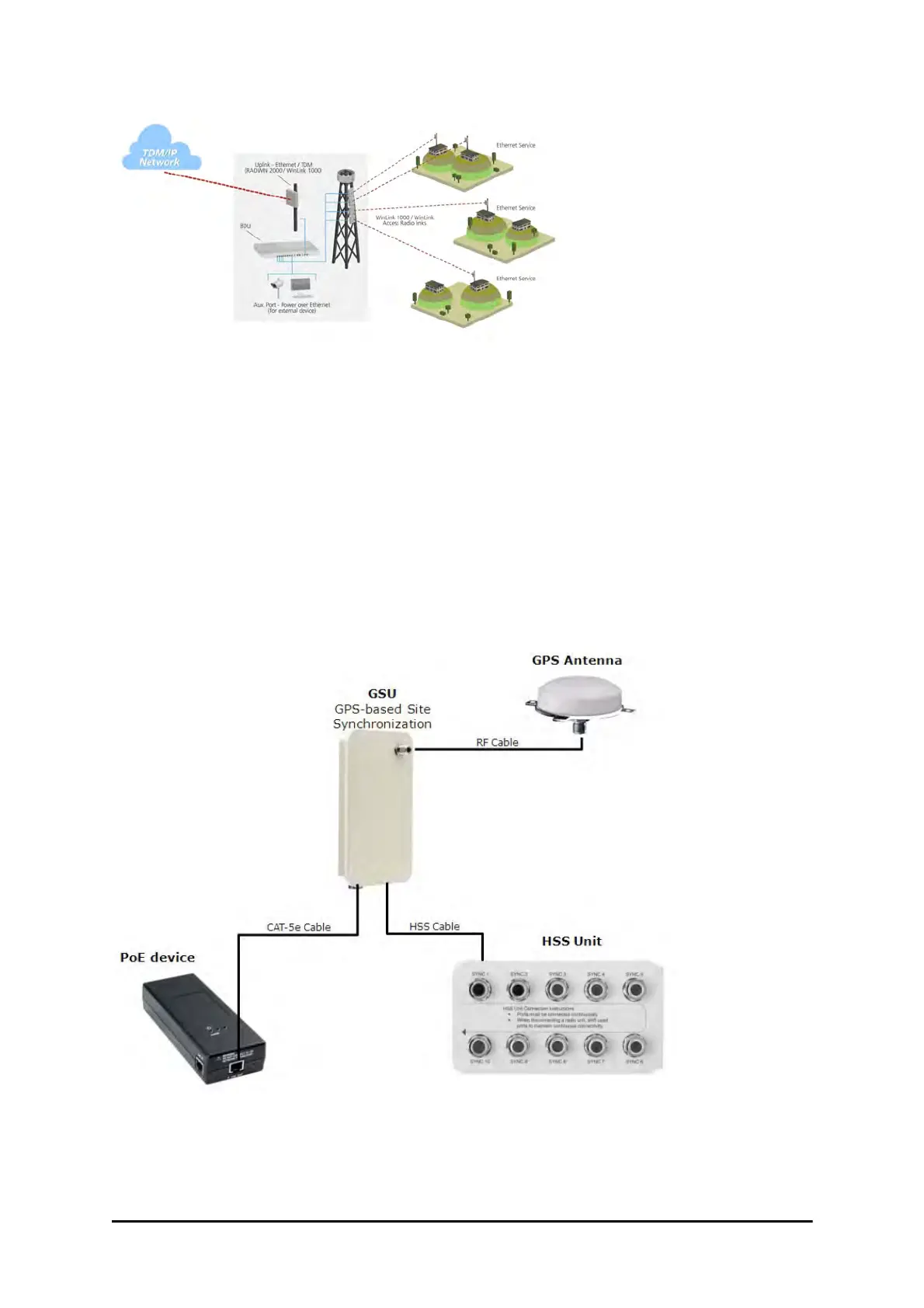

Figure 1-21: General GSU configuration
