Example: Binning configuration data for a resistor measurement

The example defines a binning measurement that returns the measurement results for

the resistance and impedance parameter pair (Rs-X), specified for 4 measurement cat-

egories. The R&S LCX returns the nominal value as absolute value, and the deviation

in percent (NOMPCT).

#Signal,BOTH

#Measurement,Rs-X

#PrimaryFormat,NOMPCT

#SecondaryFormat,ABS

Pri0,Pri1

1e3,0.1

1e3,1

1e3,5

1e3,10

Loading the binning file

To upload the binning, proceed as follows:

1. Connect the USB stick to the USB B connector at the front panel of the instrument.

2. To access the binning settings dialog, select [settings] > "Functions" > "Binning".

3. Select "Load from File".

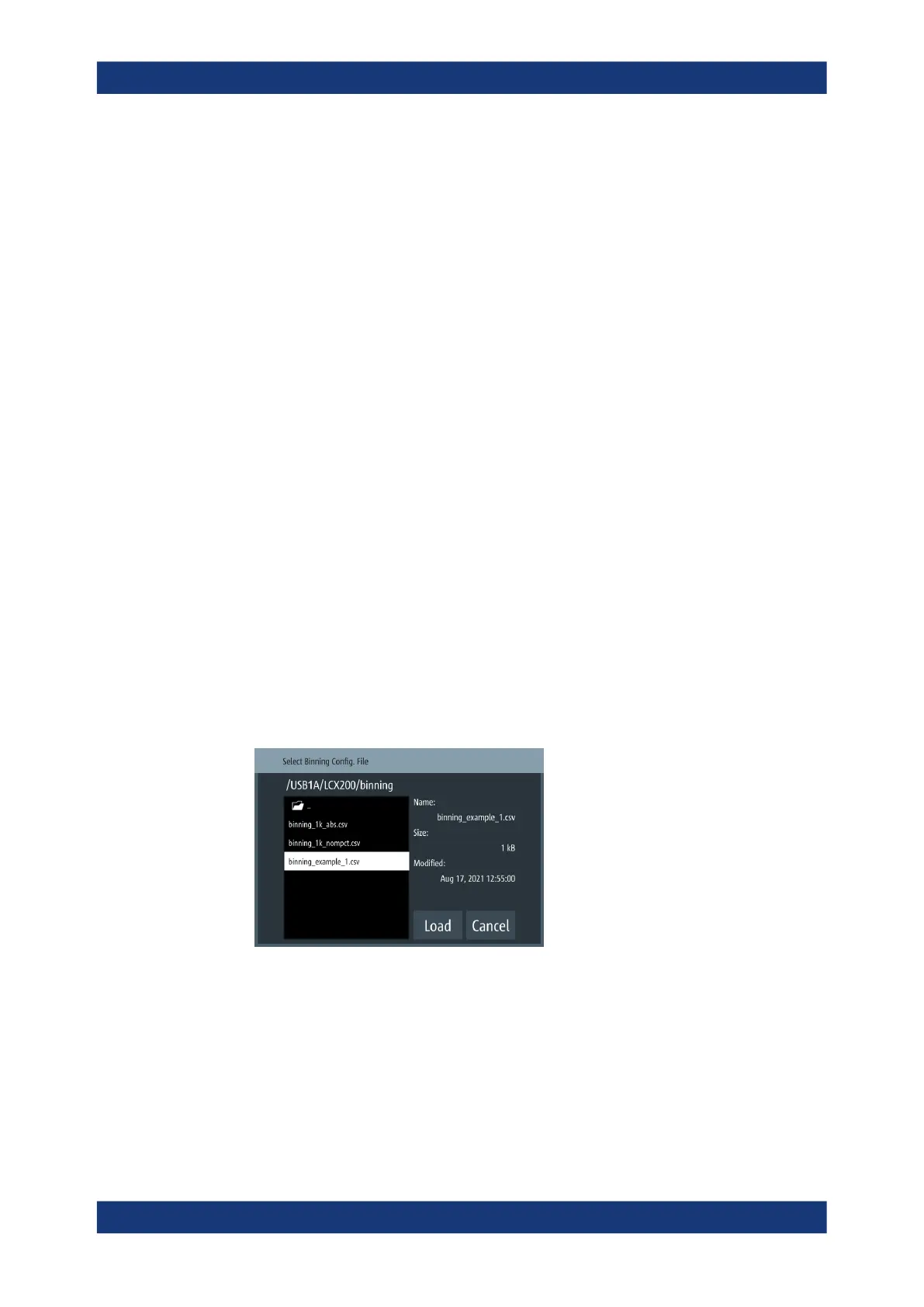

4. Select the partition "USB1A".

If a binning folder exists on the memory stick, the R&S LCX leads you to this direc-

tory automatically.

5. Select the corresponding *.csv binning file.

The R&S LCX indicates the file properties of the selected file on the right.

6. Confirm your selection with "Load".

Returned to the "Binning" dialog, the instrument indicates the selected file and

memory location.
