Getting started
R&S
®
LCX Series
27User Manual 1179.2260.02 ─ 02

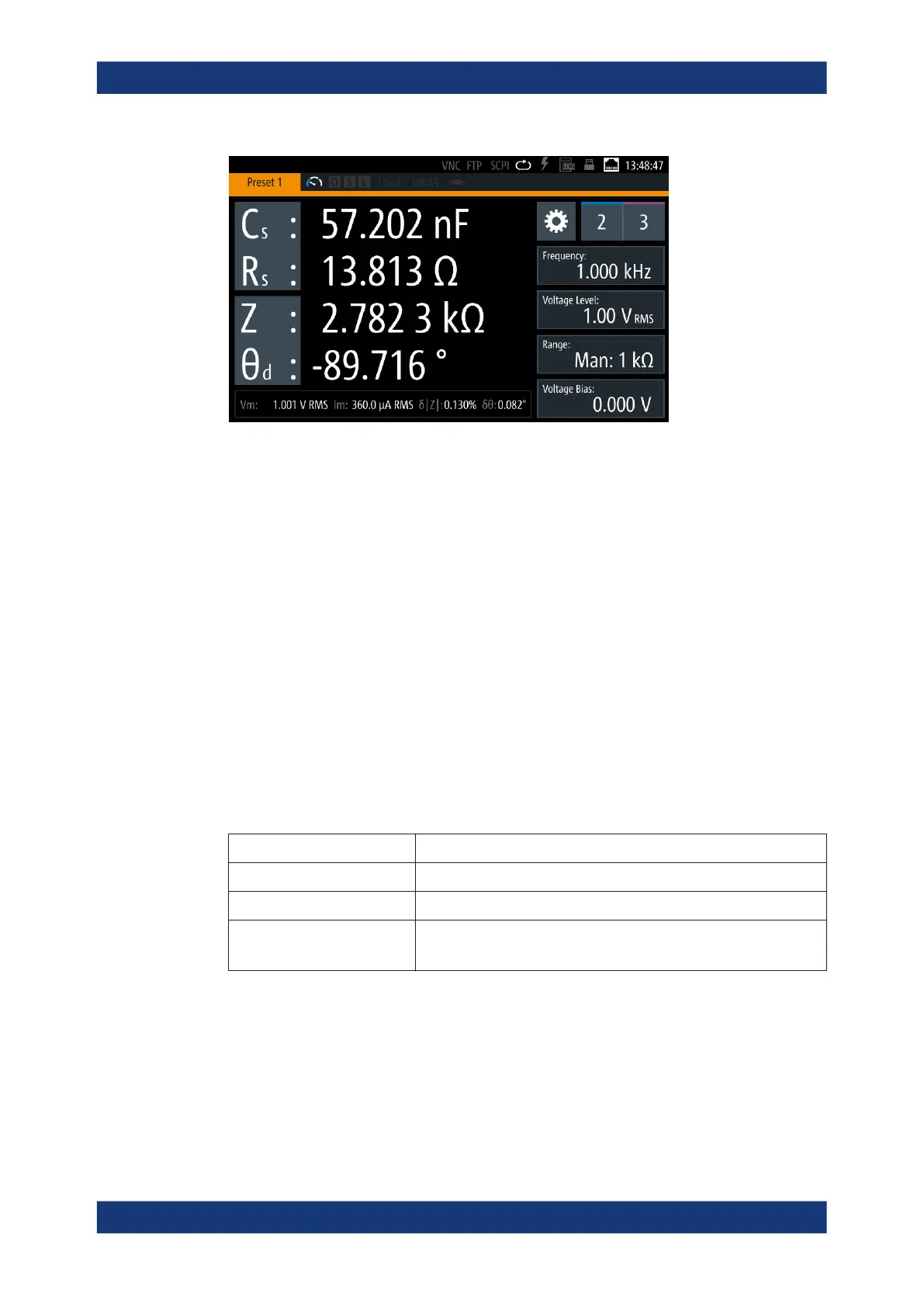

Figure 4-5: Touchscreen display
For details on the screen display, see Chapter 4.4.2.1, "Understanding the display
information", on page 36.
The touch-sensitive panel provides an alternative means of user interaction for quick
and easy handling of the instrument, see Chapter 4.4.2, "Means of manual interaction",
on page 35.
4.2.1.2 Keys
This section introduces the functionality of the hardkeys at the front panel. These con-
trols lead you to menus and dialogs displayed on the screen. For information on how to
operate the instrument, see Chapter 4.4.2, "Means of manual interaction",
on page 35.
Basic display keys
The utility keys arrange different windows on the display.
Table 4-1: Display keys
Display key Assigned functions
[home] Returns to the initial feature screen.
[settings] Displays a menu list for accessing general instrument functions.
[★ (User)] Executes a previously assigned user action.
Press and hold accesses the favorites menu for assigning a user action.
Navigation controls
The navigation controls include a rotary knob and navigation keys. They allow you to
navigate within the display or within dialogs, see Chapter 4.4.2, "Means of manual
interaction", on page 35.
Instrument tour
To Next Page
