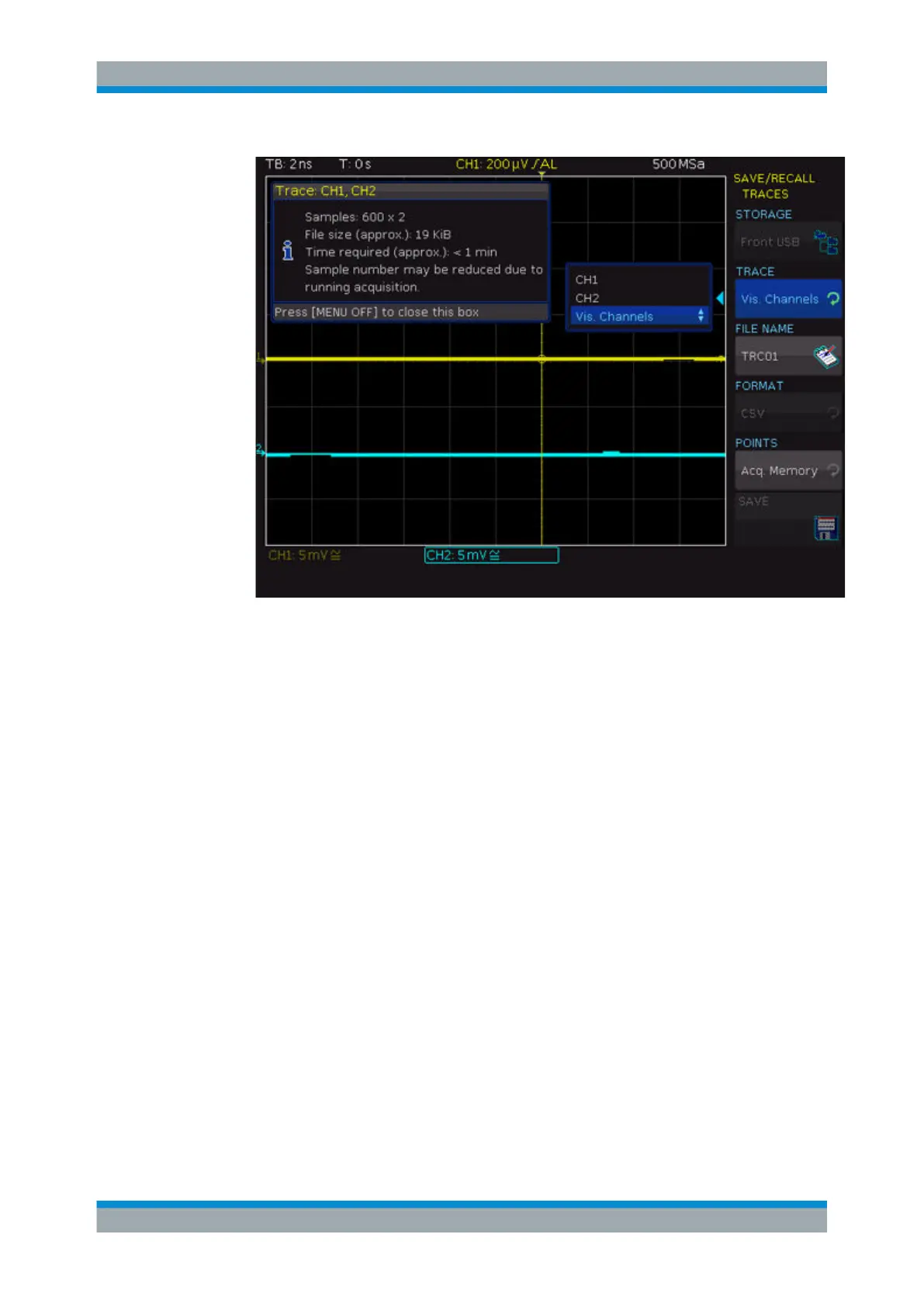

Figure 8-4: Trace storage menu
3. To select the target directory, press "STORAGE".
a) Use the softkey "SORT ENTRIES" to sort the files by name, type, size or date.
b) Change, create or delete directories.
c) Select the target directory.
d) Press "ACCEPT DIR." to confirm the target directory and you return automati-
cally to the curve main menu.
4. Press "TRACE". Use the UNIVERSAL knob to select the channel, math waveform,
reference, or pod.
You can select only active waveforms. You can also save all visible channels to
one file.
5. Press "FILE NAME". Enter the file name.
6. Press "FORMAT". Select the target format, see Chapter 8.3.1, "Waveform File For-
mats", on page 101.
Note: If "Max. Sampling Rate" is set in the "ACQUIRE" menu, two rows are affixed
with a time stamp during the CSV export because a minimum and a maximum
value must be assigned to this time value. To acquire an amplitude value per time
stamp, activate "Automatic" in the "ACQUIRE" menu.
7. Press "POINTS". Select whether you want to read out the display memory ("Dis-
play Data") or the entire acquisition memory ("Acq. Memory").
8. Press "SAVE".
Waveforms (Traces)
To Next Page
