R&S RTC1000 - Operating Concept

Operating Basics
R&S
®
RTC1000
23User Manual 1335.7352.02 ─ 02
9 10
1 2 4 5 6 7 8
2
3
11
12

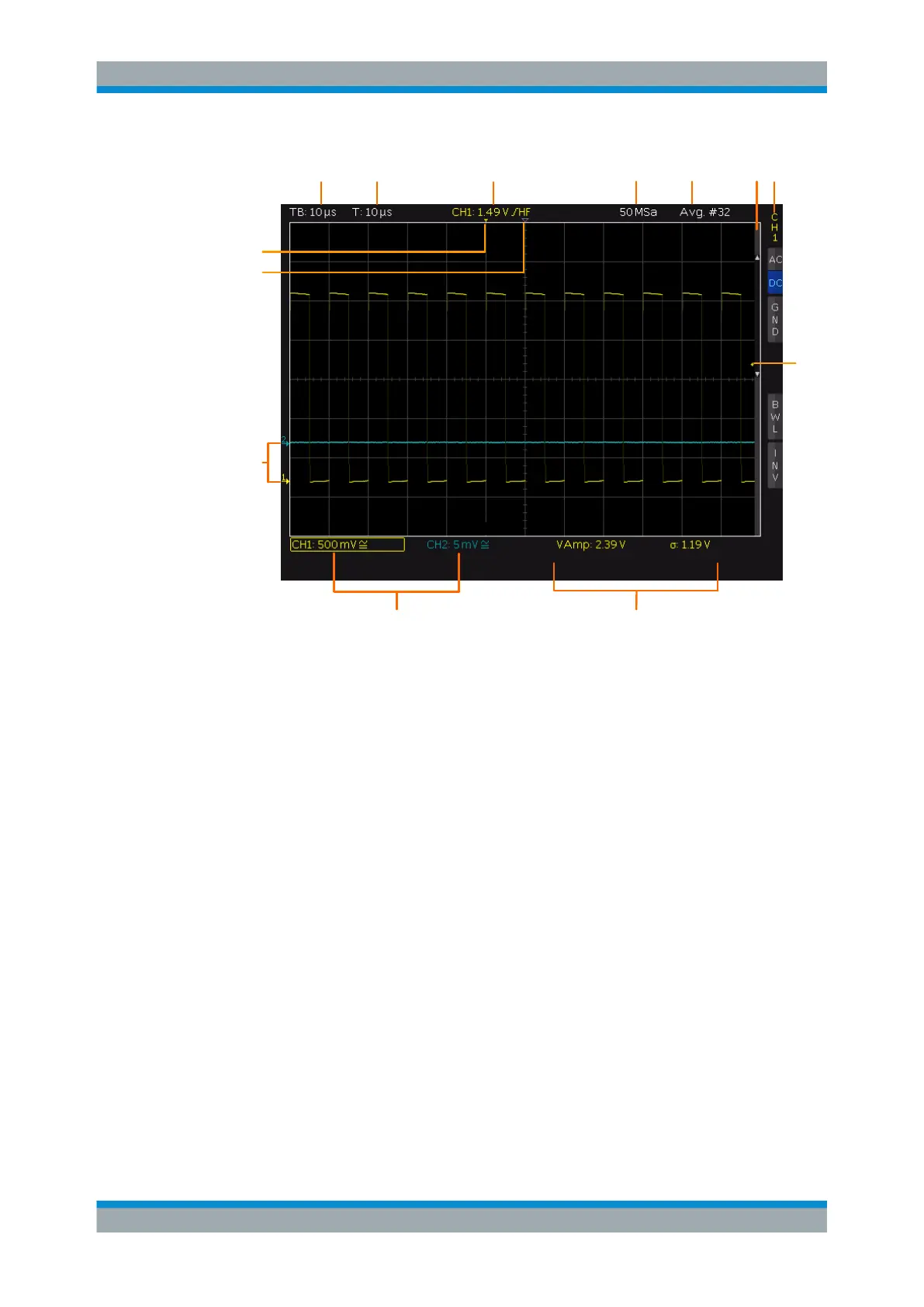

1 = Horizontal scale (time base), in s/div
2 = Trigger position
3 = Time reference, zero point of the time axis
4 = Trigger settings: source, level, type, and filter conditions
5 = Sample rate
6 = Acquisition mode
7 = Vertical scrollbar, visible if virtual screen with 20 vertical divisions is on
8 = Short menu with most important settings of the selected channel
9 = Vertical settings of active waveforms: vertical scale in V/div, coupling, and bandwidth limit (if set).
Channel 1 is selected.
10 = Measurement results
11 = Reference potentials of the channels
12 = Trigger level
3.3 Operating Concept
The general operating concept is based on a few key principals, recurring with various
settings and functions:
●
Keys work in one of these ways:
– The key opens a soft menu when pressed once. It closes the soft menu when
pressed a second time.
– The key activates a specific function. Pressing this key a second time deacti-
vates the function.
