Operating Basics
R&S
®
RTC1000
25User Manual 1335.7352.02 ─ 02

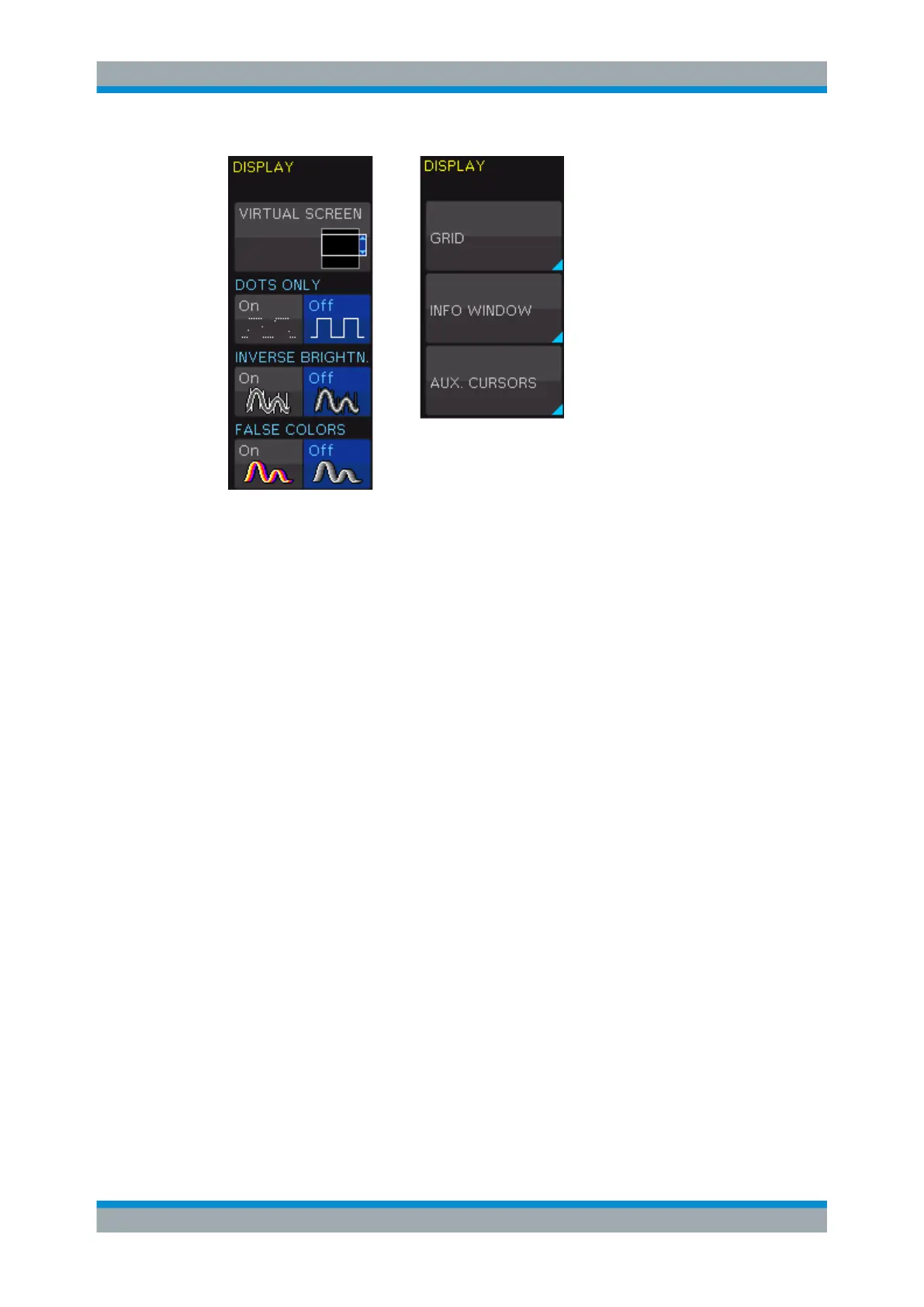

Figure 3-1: Display menu, page 1/2 (left) and page 2/2 (right)
VIRTUAL SCREEN
See Chapter 3.5.2, "Virtual Screen", on page 26.
DOTS ONLY
If enabled, only the acquired data points are shown. The data points are not connected
by lines. If disabled, interpolated data points are also shown, and the waveform is a
continuous line.
INVERSE BRIGHTN.
Iinverts the brightness of the displayed signals points. Normally, frequently captured
dots are displayed more brightly than rare dots. If inverted, rare events are displayed
with higher brightness. To capture rare events in a signal, this setting can be used in
combination with persistence.
FALSE COLORS
Converts the brightness level of the displayed signal points to a color scale, ranging
from blue, magenta, red and yellow to white. Due to the higher contrast, you can see
signal details easily. This setting applies to all signals.
GRID
Sets the display of the grid: "LINES", "RETICLE", or "OFF".
INFO WINDOW
Info windows are small windows that appear on the screen depending on the current
application. You can change the format of information windows:
"TRANSPARENCY"
Use the Universal knob to or the KEYPAD to change the value from
0% to 100%.
