Status Reporting System
R&S
®
RTC1000
350User Manual 1335.7352.02 ─ 02
– The Event Status Register (ESR) with the associated mask register standard
Event Status Enable (ESE).
– The STATus:OPERation and STATus:QUEStionable registers which are
defined by SCPI and contain detailed information on the instrument.
●
Output buffer
The output buffer contains the messages the instrument returns to the controller. It
is not part of the status reporting system but determines the value of the MAV bit in
the STB and thus is represented in the overview.
All status registers have the same internal structure.
As shown in the following figure, the status information has a hierarchical structure.

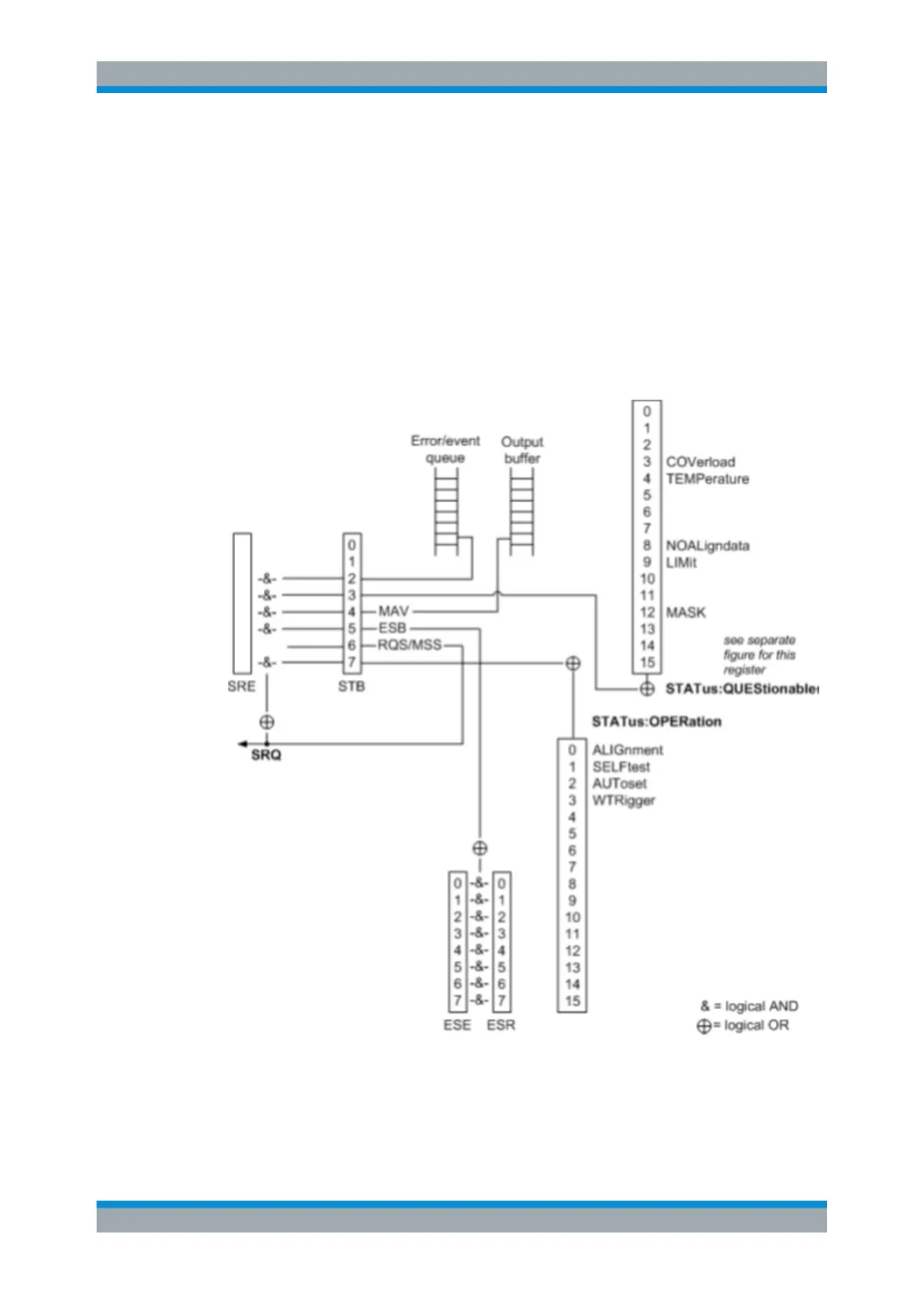

Figure C-2: Overview of the status registers hierarchy
Hierarchy of status registers
