R&S RTC1000 User Manual

Documenting Results
R&S
®
RTC1000
98User Manual 1335.7352.02 ─ 02

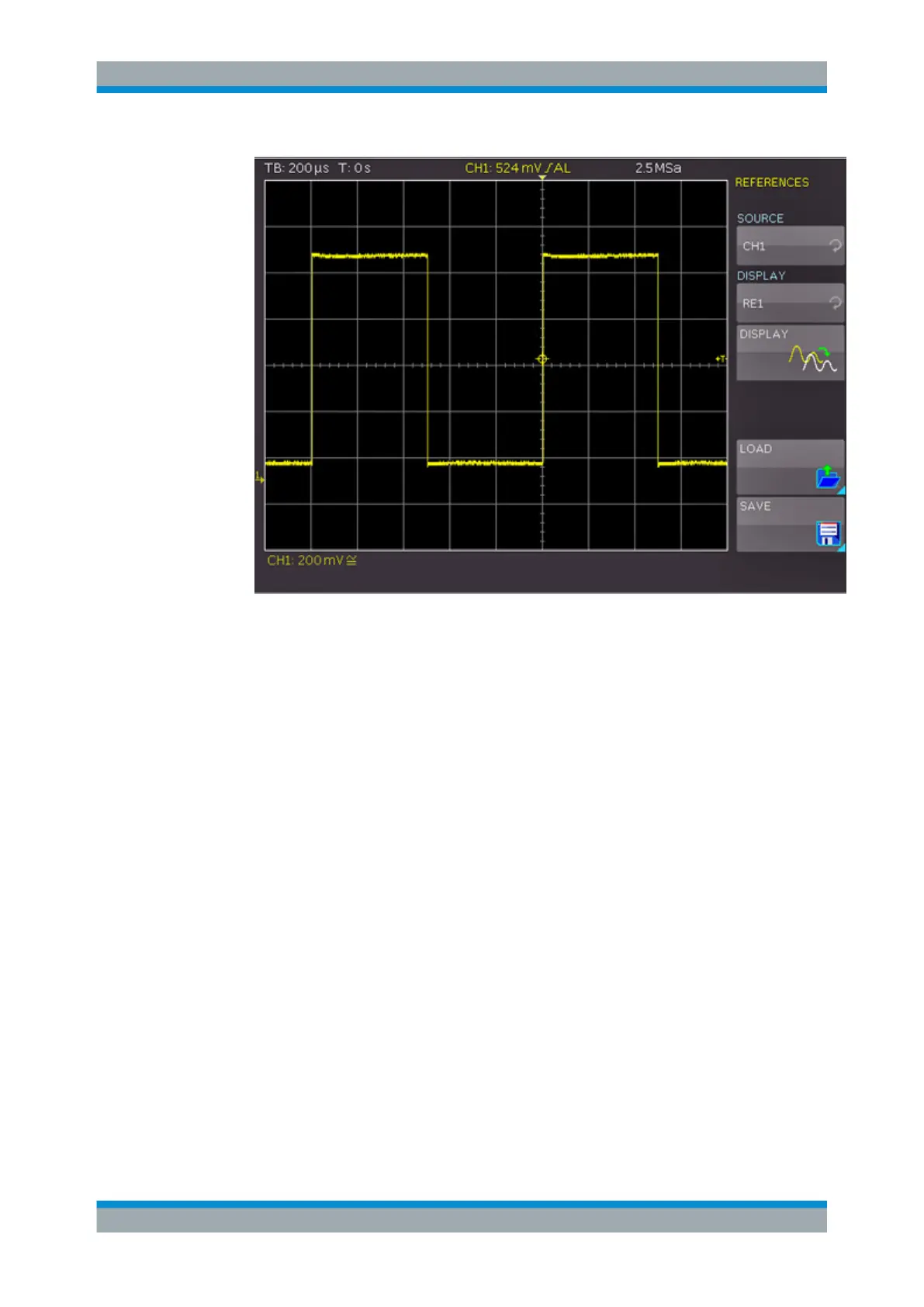

Figure 8-3: Menu for references
3. To create and display a reference waveform:
a) Press "SOURCE". Use the UNIVERSAL knob to select the waveform that you
want to store as reference.
You can select from active channels, other reference waveforms, pod and
mathematical waveforms.
b) Press the upper "DISPLAY" softkey. Select one of the references "RE1" to
"RE4".
c) Press the lower "DISPLAY" softkey.
The data is written to the reference storage, and the reference waveform is dis-
played.
4. To save a reference:
a) Press "SAVE".
b) Press "TRACE". Select the waveform that you want to save as reference wave-
form.
c) Select the "STORAGE": internal or USB flash drive.
d) Enter the "FILE NAME".
e) Press "SAVE".
The reference file is saved in TRF format.
5. To load a reference from a USB flash drive or the internal memory:
a) In the "REFERENCES" menu, press "LOAD".
Reference Waveforms
