Rexroth EcoDrive Cs Drives Mains and Supply Voltage Connection 6-5
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
6.3 Inrush Current and Mains Phase Current

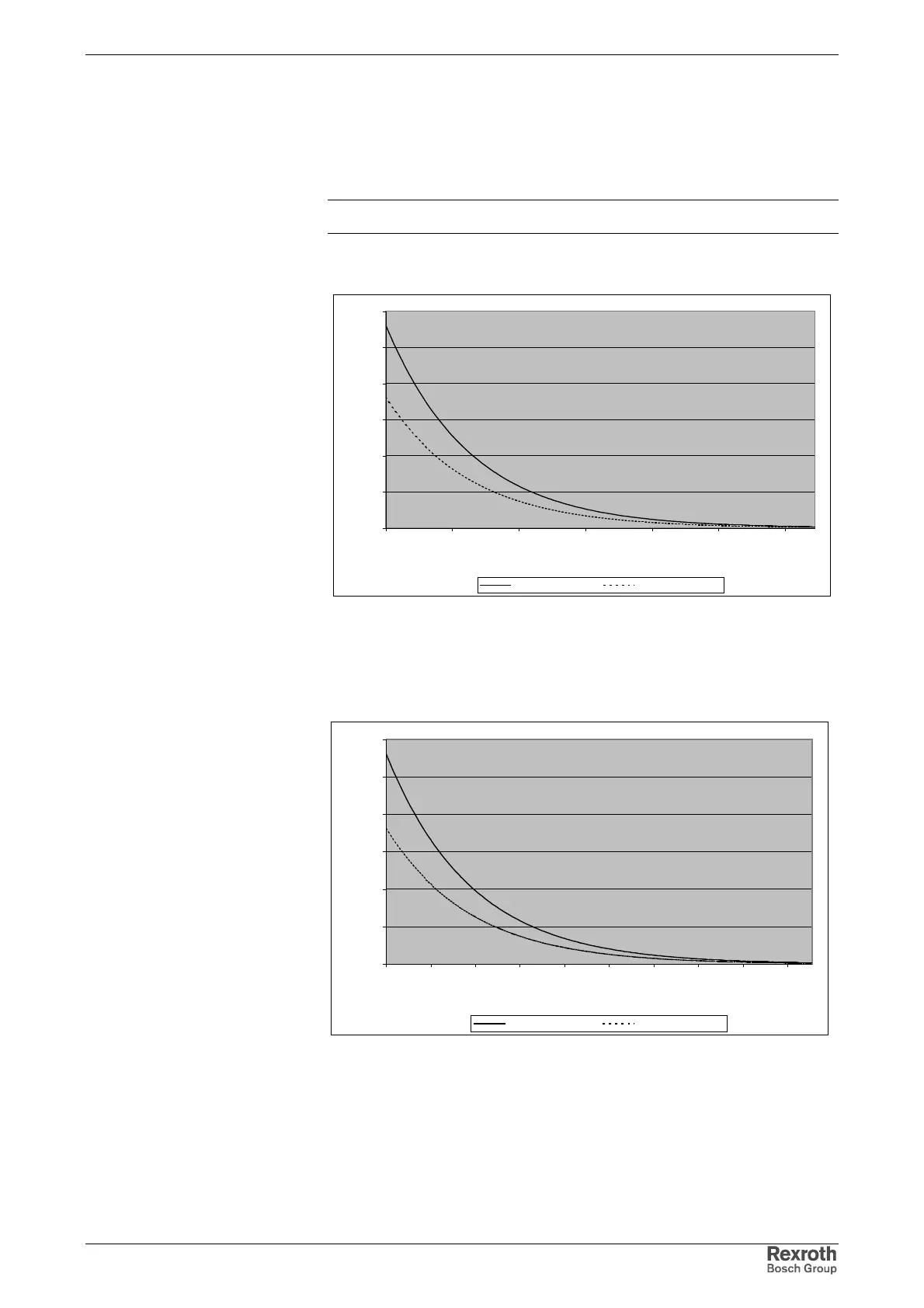

Characteristic of Inrush Current
Note: For n parallel-switched inputs the current inrush is n-fold.
DKC**.3-004 (100 W)
Fig. 6-5: Inrush current characteristic of DKC**.3-004 (100 W)
DKC**.3-008 (200 W), DKC**.3-012 (400 W),
DKC**.3-018 (750 W)
Fig. 6-6: Inrush current characteristic of DKC**.3-008 (200 W), DKC**.3-012
(400 W), DKC**.3-018 (750 W)
0A
10A
20A
30A
40A
50A
60A
024681012
time [ms]
inrush current [A]
inrush current max. inrush current min.
0A
10A
20A
30A
40A
50A
60A
0 2 4 6 8 1012141618
time [ms]
inrush current [A]
inrush current max. inrush current min.
