REXROTH EcoDrive Cs - DKC16.3 - Devicenet Interface with Sealed Micro-Style Connector

Rexroth EcoDrive Cs Drives Electrical Connections 5-41
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
DKC16.3 – DeviceNet Interface with Sealed Micro-Style Connector
Note: How to proceed when replacing a master communication
module: see page 5-47.
Master Communication Card
ECM01.1-DN02
View of Interface to Master Communication
devicenet_16_front.FH7
H163
NET
H161
MOD
H162
H160
H165
IO
H164
S160
Data Rate
PGM
500
250
125
diagnostic indicators
DeviceNet Interface X160
(male, 5 pins)
51
2
4
3
switch
data rate

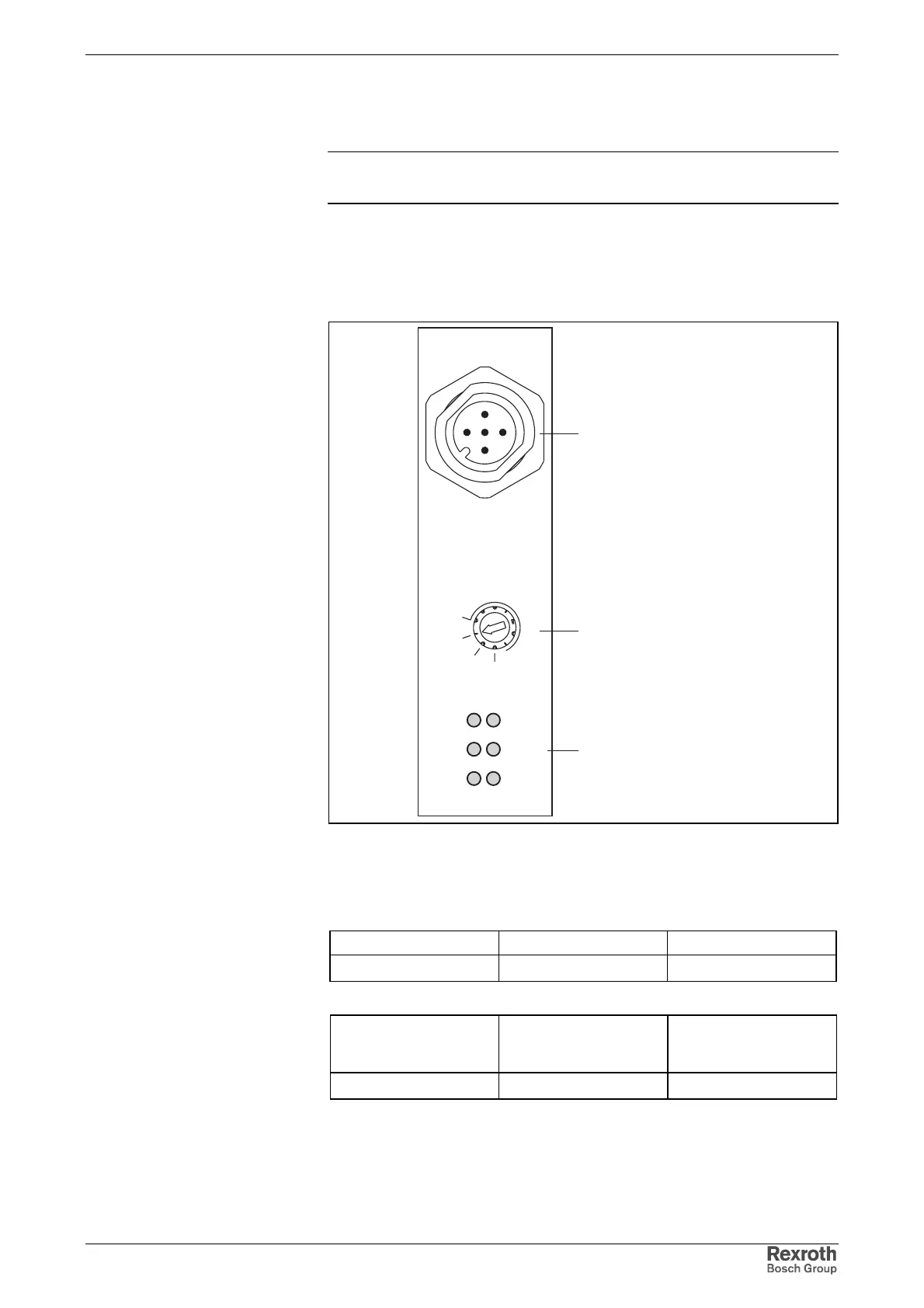

Fig. 5-81: View of interface to master communication
Technical Data of the Terminal Connector
Type Number of poles Type of design
sealed micro-style 5 pins on unit
Fig. 5-82: Design
Cross section
single-core
[mm²]
Cross section
multi-core
[mm²]
Cross section
in AWG
gauge No.
0.2-2.5 0.2-1.5 24-16
Fig. 5-83: Connection cross section
Design
Connection Cross Section
