REXROTH EcoDrive Cs - Key; Cables at the Motor

8-14 Motors Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Key
passfeder.fh7
A
B
C
D
E
ABCDE
20 18 4h9 4 8.5
all data in mm

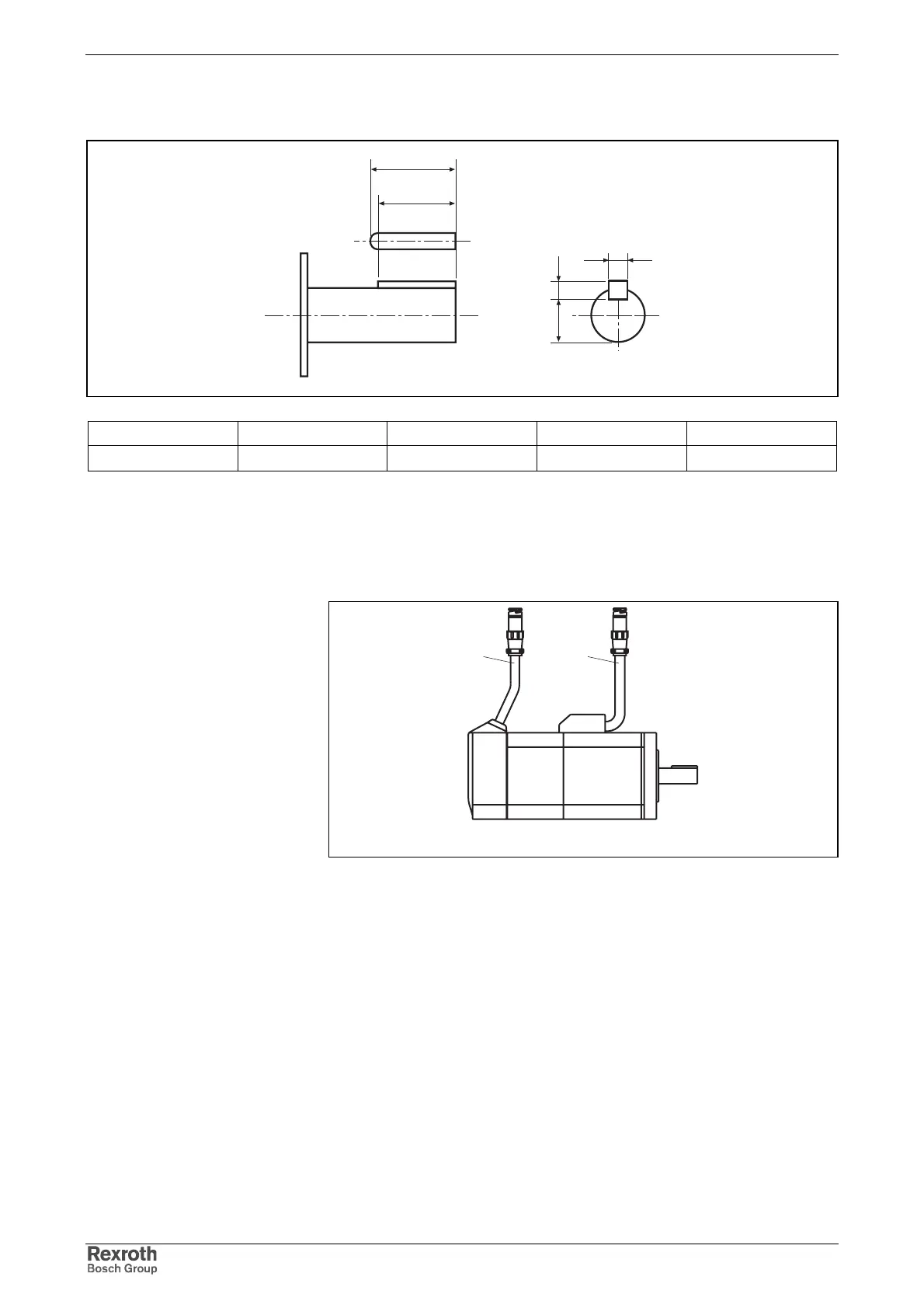

Fig. 8-14: Key
Cables at the Motor
motor_kabel_m_g.fh7
1 2
1: encoder cable
2: motor cable
Fig. 8-15: Cables at the motor
Length of cables (motor ↔ connector):
• motor cable: 200 mm (+70 mm connector)
• encoder cable: 220 mm (+62 mm connector)
See chapter 10.1
See chapter 10.1
Motor Cable
Encoder Cable
