REXROTH EcoDrive Cs - Msm040 B; Dimensions

Rexroth EcoDrive Cs Drives Motors 8-21
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
8.7 MSM040B
Dimensions
eco_cs_motor.fh7
E
D
CB
G
A
H
F
K
L
A
M
N

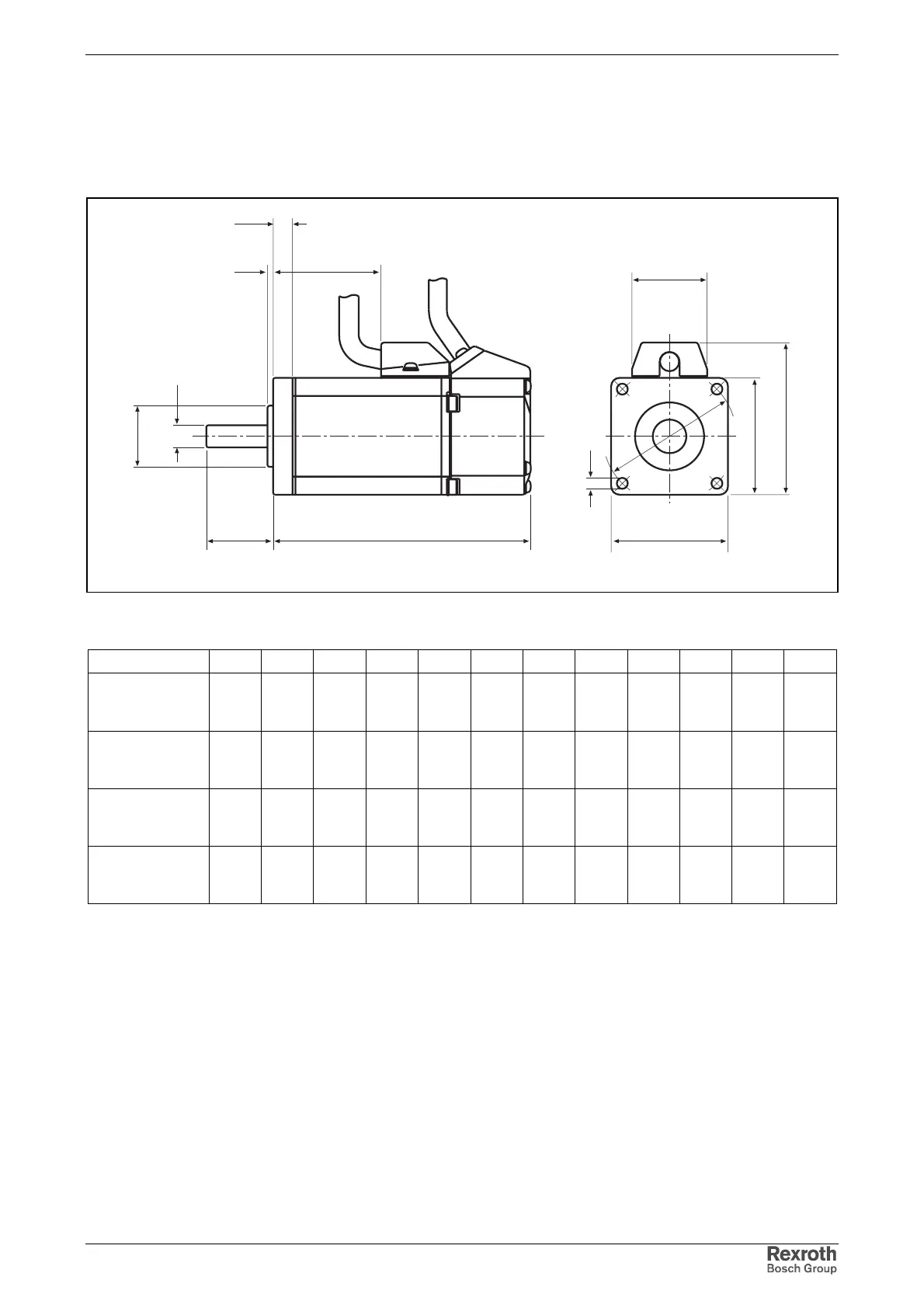

Fig. 8-26: Front and side view of a motor
Motor type A B C D E F G H K L M N
without brake
with incremental
encoder
80 142.5 35
∅19
h6
∅ 70
h7
∅ 90 ∅ 6.0
93 76.0 27 3 8
with brake
with incremental
encoder
80 176.5 35
∅19
h6
∅ 70
h7
∅ 90 ∅ 6.0
93 76.0 27 3 8
without brake
with absolute
encoder
80 157.5 35
∅19
h6
∅ 70
h7
∅ 90 ∅ 6.0
93 76.0 27 3 8
with brake
with absolute
encoder
80 191.5 35
∅19
h6
∅ 70
h7
∅ 90 ∅ 6.0
93 76.0 27 3 8
all data in mm
Fig. 8-27: Dimensions
