REXROTH EcoDrive Cs - Encoder Extension Cable IKS0232

10-4 Additional Components Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Encoder Extension Cable IKS0232
white
brown
black
red
grey
pink
0,5 mm²
0,5 mm²
0,25 mm²
0,25 mm²
0,25 mm²
0,25 mm²
9
1
2
3
4
5
6
Shield
VCC
GND
VB
GND
SD
/SD
100
2990
100
2990
0500
3040
3000
3010
3050
Shield
VCC
GND
VB
GND
SD
/SD
3060
3040
3020
3030
3060
3050
9
1
2
3
4
5
6
INK0750
remove
sheath
35 mm
strip
4 mm
remove
sheath
35 mm
strip
4 mm
Secure solder joint (strand - shield) with shrink hose (3070 = 12 mm)!
order length = length of unfinished cable
INS0758/C01
INS0753/C01
IKS0232 IKS0232

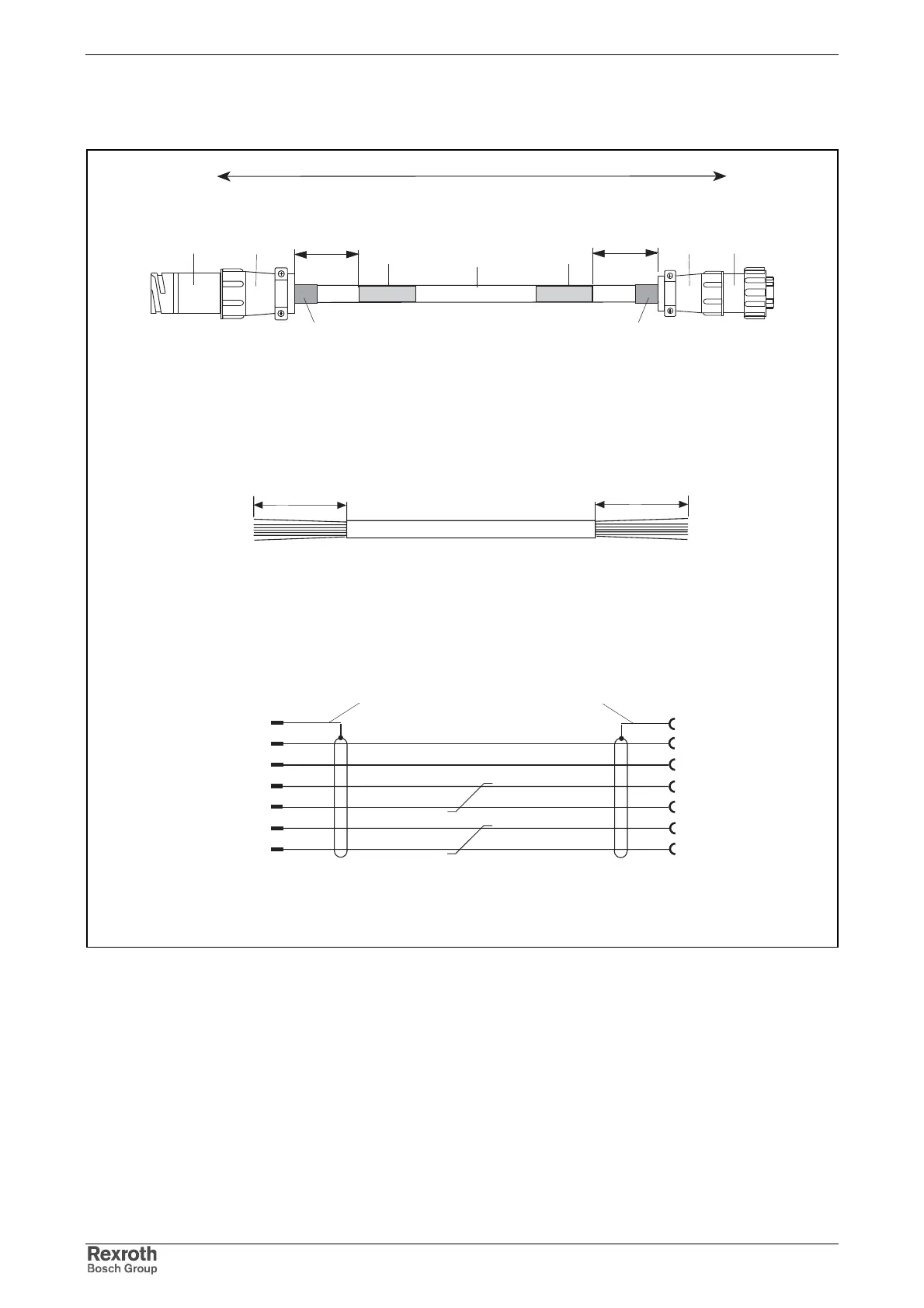

Fig. 10-4: Encoder extension cable IKS0232
