REXROTH EcoDrive Cs - RS232 Cable IKB0041

10-6 Additional Components Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P

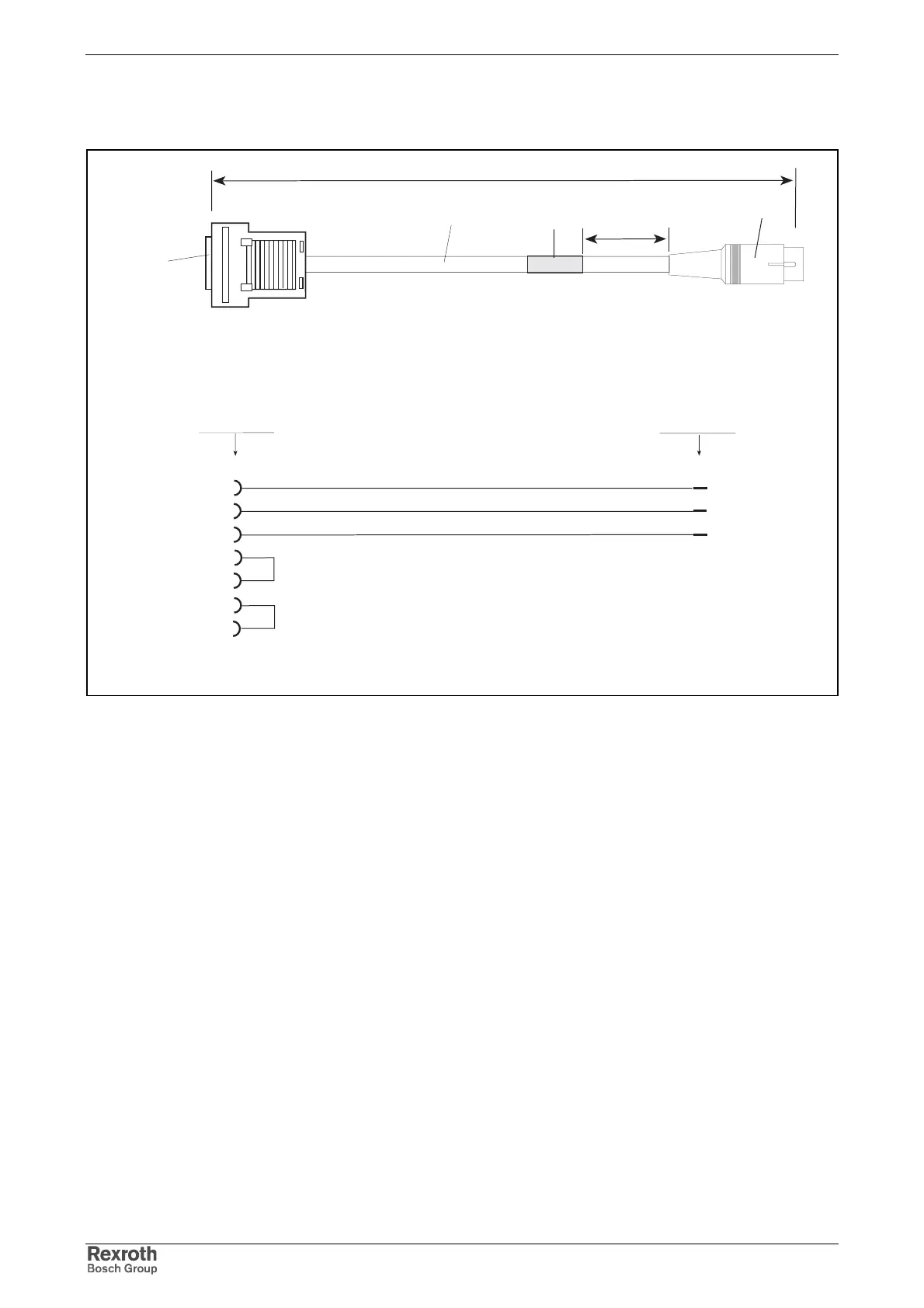

RS232 Cable IKB0041
white
brown
green
2
3
5
4
6
7
8
1
3
5
4
computer
3,4,5
2
6
1
9
Secure solder joint with shrink hose (Pos. 7)!
RxD
TxD
GND
DTR
DSR
RTS
CTS
amplifier
100
TxD
RxD
GND
order length = length of unfinished cable
INS0457
IKB0041
INS0663
Fig. 10-6: RS232 cable
Cable IKB0041 replaces cable IKS0199 formerly used.
