REXROTH EcoDrive Cs - Encoder Cable IKS0230

Rexroth EcoDrive Cs Drives Additional Components 10-3
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Encoder Cable IKS0230
Secure solder joint (strand - shield) with shrink hose (3060 = 12 mm)!
order length = length of unfinished cable
remove
sheath
25 mm
Reduce braided shield to 6 mm,
pull it back over the outer sheath
and wrap adhesive copper tape
(item 3080) around it.
remove
sheath
35 mm
strip
4 mm
strip
4 mm
6
white
brown
black
red
grey
pink
0.5 mm²
0.5 mm²
0.25 mm²
0.25 mm²
0.25 mm²
0.25 mm²
1
2
3
4
5
6
9
1
2
3
4
5
6
The overall shield is connected to the
metallized connector housing via the strain
relief!
VCC
GND
VB
GND
SD
/SD
3030
Shield
VCC
GND
VB
GND
SD
/SD
IKS0230/xxx,x (var.)
IKS0230/005,0
IKS0230/010,0
IKS0230/015,0
IKS0230/020,0
295 922
296 148
296 149
296 140
296 142
part no.order type
INS0756/L01
INS0753/C01
100
2990
100
2990
0500
IKS0230
3040
3020
3000
3010
3070 3080
IKS0230

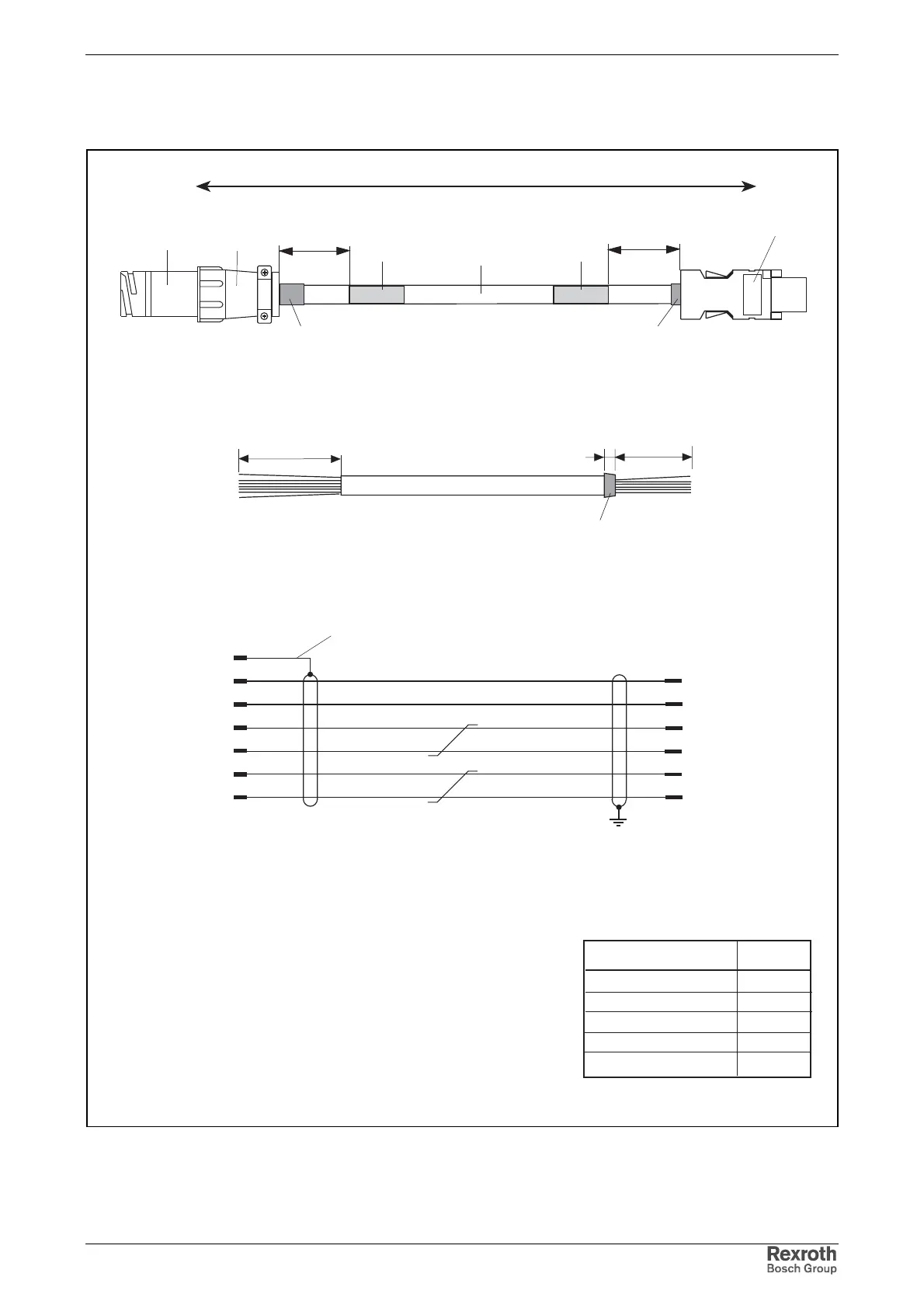

Fig. 10-3: Encoder cable IKS0230
