REXROTH EcoDrive Cs - X3, Motor

Rexroth EcoDrive Cs Drives Electrical Connections 5-9
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
X3, Motor
DANGER
Lethal electric shock caused by live parts with
more than 50 V!
⇒ Before starting to work on the drive controller switch
off the voltage supply via the main switch or the fuse.
⇒ Always mount or dismount both connectors (motor
connection and mains connection) at the drive
controller.
⇒ Observe the notes in the "Safety Instructions for
Electric Drives and Controls" chapter.
Technical Data of the Terminal Connector
schnittstellen_X3.fh7
TX
RX
S20
2
1
ON
X4
X5
X6
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
ADDRESS
NODE
00
Rexroth
ECODRIVE
Cs
S1
H1
S2
S3
LINE ERROR
X20
X21
X4
X5_3 X5_2 X5_1
INPUTíF200V-240V
X3 X2 X1
X6
U
V
W
Ground

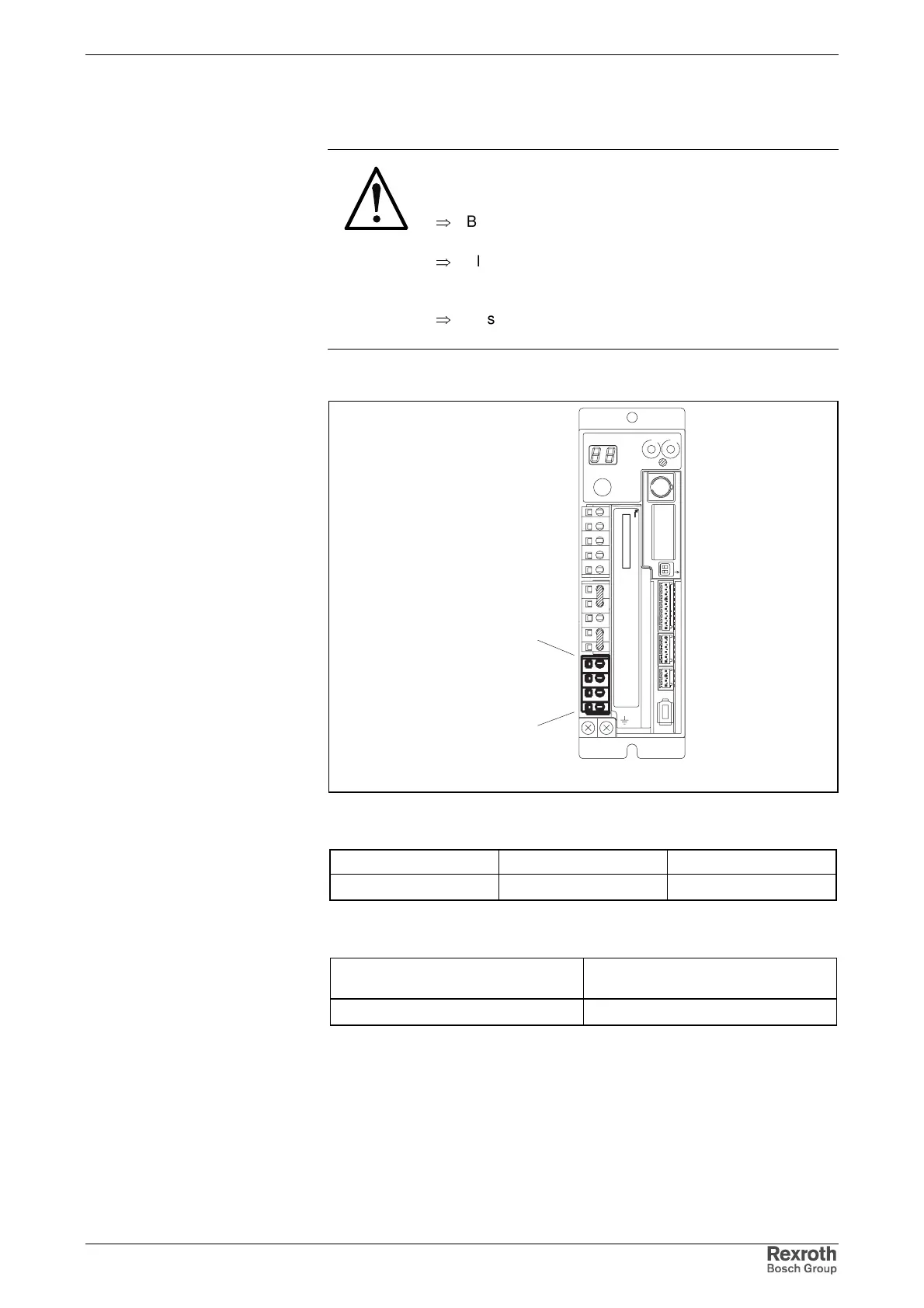

Fig. 5-15: Terminal connector X3
Type Number of poles Type of design
spring tension 4 socket on connector
Fig. 5-16: Design
Max. connectable cross section
[mm²]
Max. cross section in AWG
gauge No.:
0,75 - 2 18 - 14
Fig. 5-17: Connection cross section
Graphic Representation
Design
Connection Cross Section
