REXROTH EcoDrive Cs - Msm030 C; Dimensions

Rexroth EcoDrive Cs Drives Motors 8-17
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
8.6 MSM030C
Dimensions
eco_cs_motor.fh7
E
D
CB
G
A
H
F
K
L
A
M
N

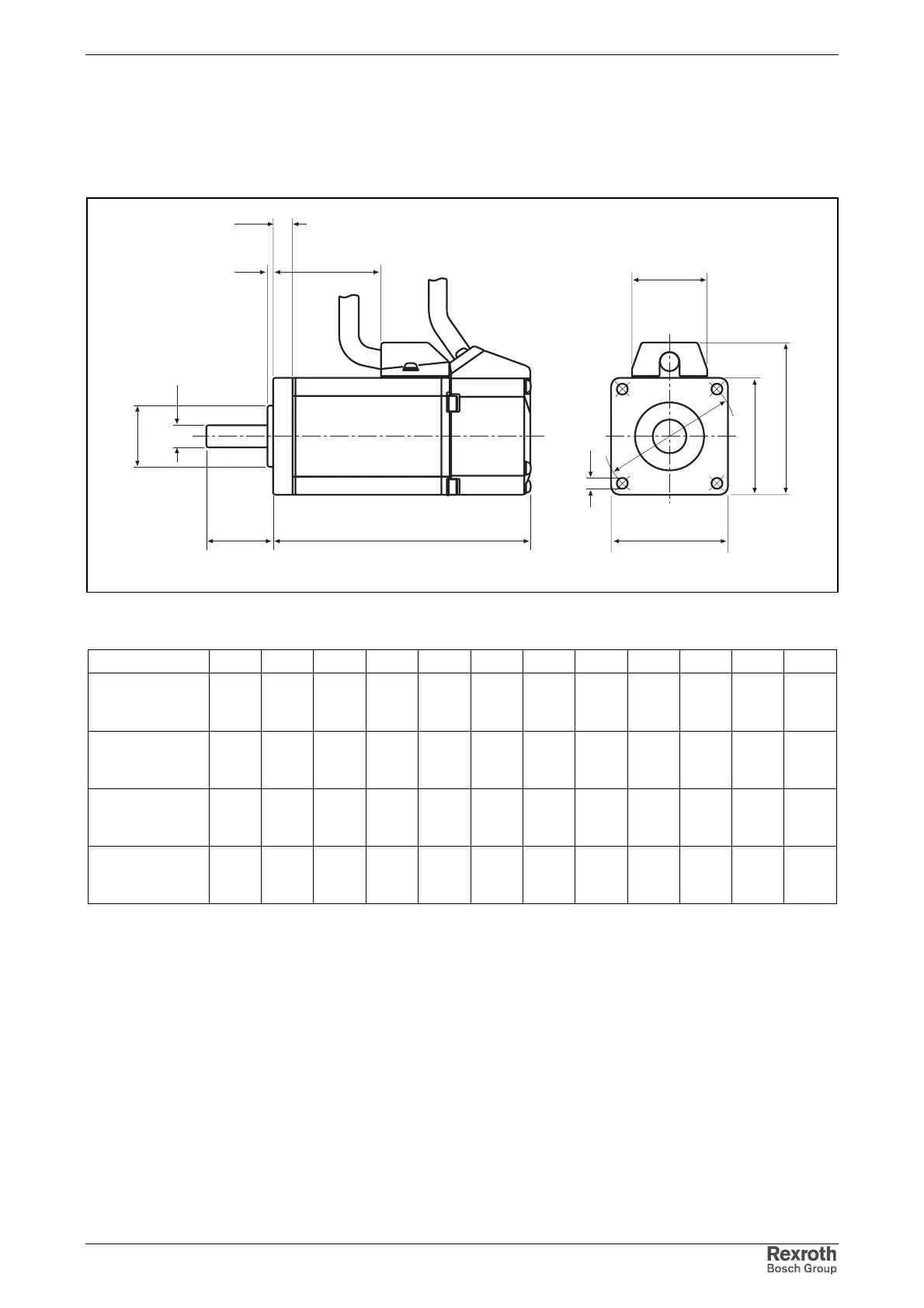

Fig. 8-19: Front and side view of a motor
Motor type A B C D E F G H K L M N
without brake
with incremental
encoder
60 123.5 30
∅14
h6
∅ 50
h7
∅ 70 ∅ 4.5
73 61.5 27 3 7
with brake
with incremental
encoder
60 156.5 30
∅14
h6
∅ 50
h7
∅ 70 ∅ 4.5
73 61.5 27 3 7
without brake
with absolute
encoder
60 138.5 30
∅14
h6
∅ 50
h7
∅ 70 ∅ 4.5
73 61.5 27 3 7
with brake
with absolute
encoder
60 171.5 30
∅14
h6
∅ 50
h7
∅ 70 ∅ 4.5
73 61.5 27 3 7
all data in mm
Fig. 8-20: Dimensions
