REXROTH EcoDrive Cs - Msm030 B; Dimensions

Rexroth EcoDrive Cs Drives Motors 8-13
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
8.5 MSM030B
Dimensions
eco_cs_motor.fh7
E
D
CB
G
A
H
F
K
L
A
M
N

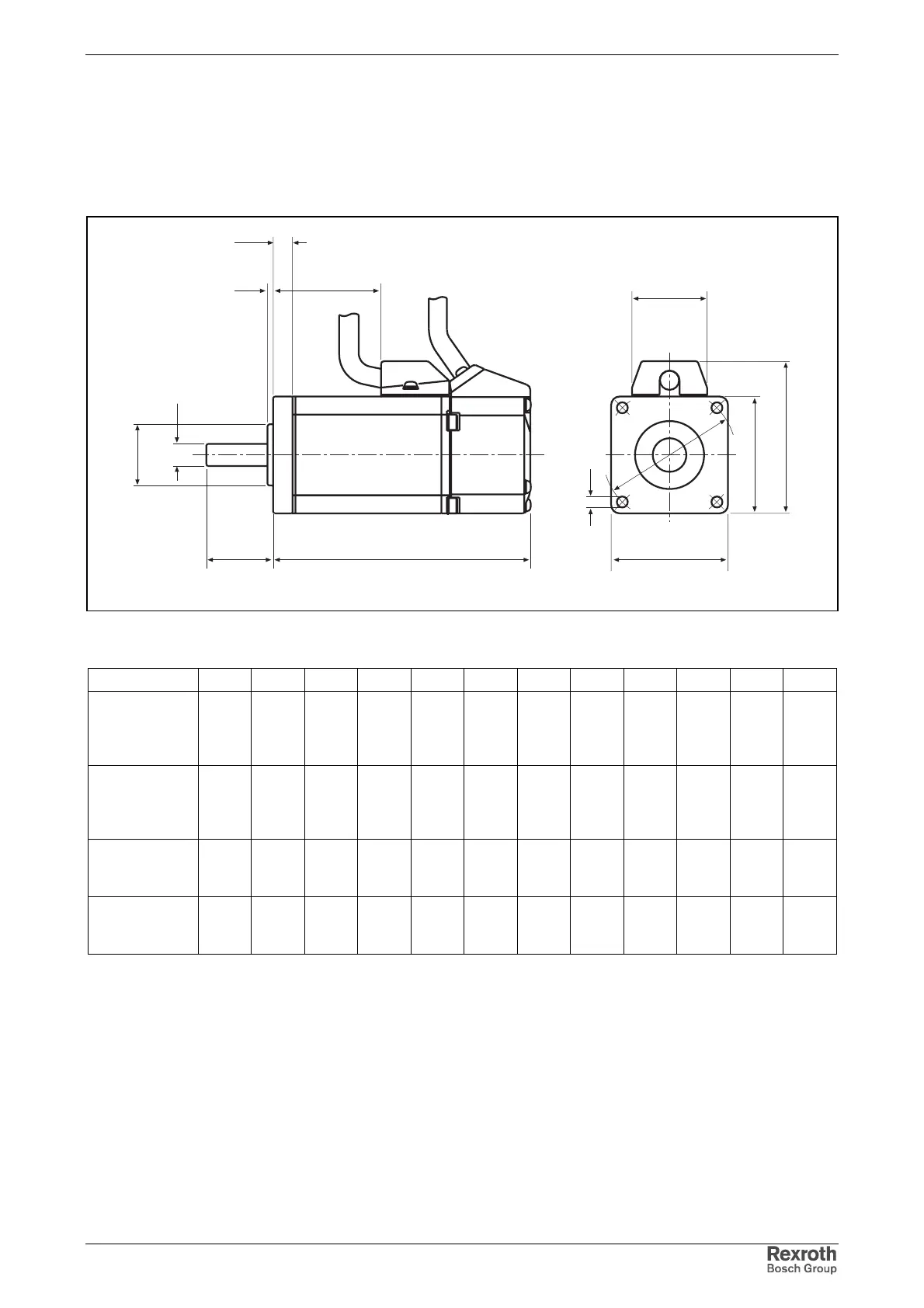

Fig. 8-12: Front and side view of a motor
Motor type ABCDEFGHKLMN
without brake
with
incremental
encoder
60 96.0 30
∅ 11
h6
∅ 50
h7
∅ 70 ∅ 4.5
73 34.0 27 3 7
with brake
with
incremental
encoder
60 129.0 30
∅ 11
h6
∅ 50
h7
∅ 70 ∅ 4.5
73 34.0 27 3 7
without brake
with absolute
encoder
60 111.0 30
∅ 11
h6
∅ 50
h7
∅ 70 ∅ 4.5
73 34.0 27 3 7
with brake
with absolute
encoder
60 144.0 30
∅ 11
h6
∅ 50
h7
∅ 70 ∅ 4.5
73 34.0 27 3 7
all data in mm
Fig. 8-13: Dimensions
