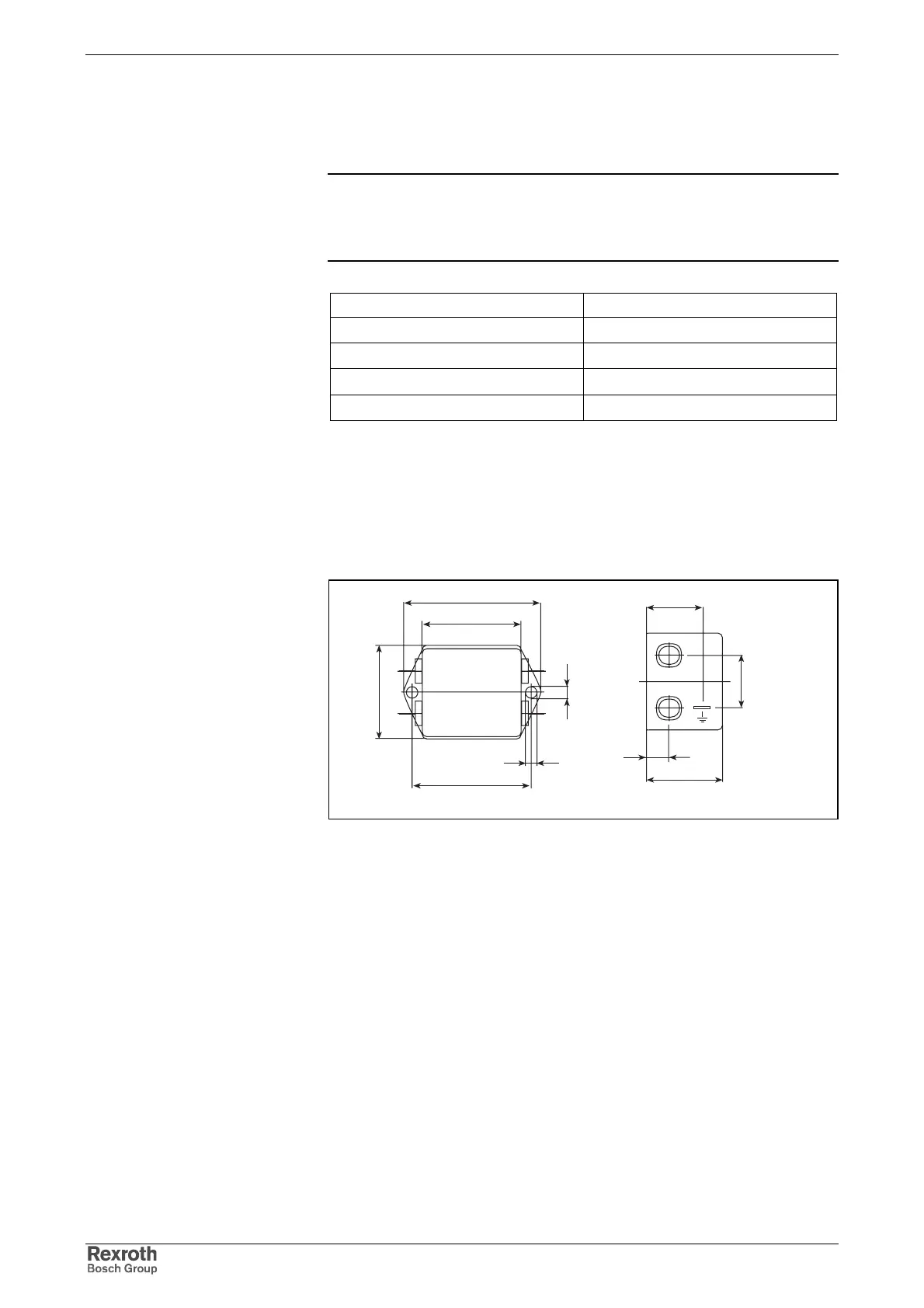

10-38 Additional Components Rexroth EcoDrive Cs Drives

DOK-ECODR3-DKC**.3-CS*-PR02-EN-P

10.6 Mains Filter

Note: Detailed information is available in the instructions in the

Project Planning Manual "Electromagnetic Compatibility (EMC)

in Drive and Control Systems", document typecode DOK-

GENERL-EMV********-PRxx-xx-P.

Mains filter Part no.

NFE02.1-230-008 R911266399

NFE01.1-250-006 R911267874

NFD03.1-480-007 R911286917

NFD03.1-480-016 R911286918

NFE: Single-phase filter

NFD: Three-phase filter

Fig. 10-56: Mains filter

NFE01.1

Dimensions

Mb5011f1.fh7

54 5.3

6.3

29.5

LINE

LOAD

Fig. 10-57: Dimensions
