DKC03.3 – Profibus-DP Interface
Note: How to proceed when replacing a master communication
module: see page 5-47.
Master Communication Card
ECM01.1-PB01

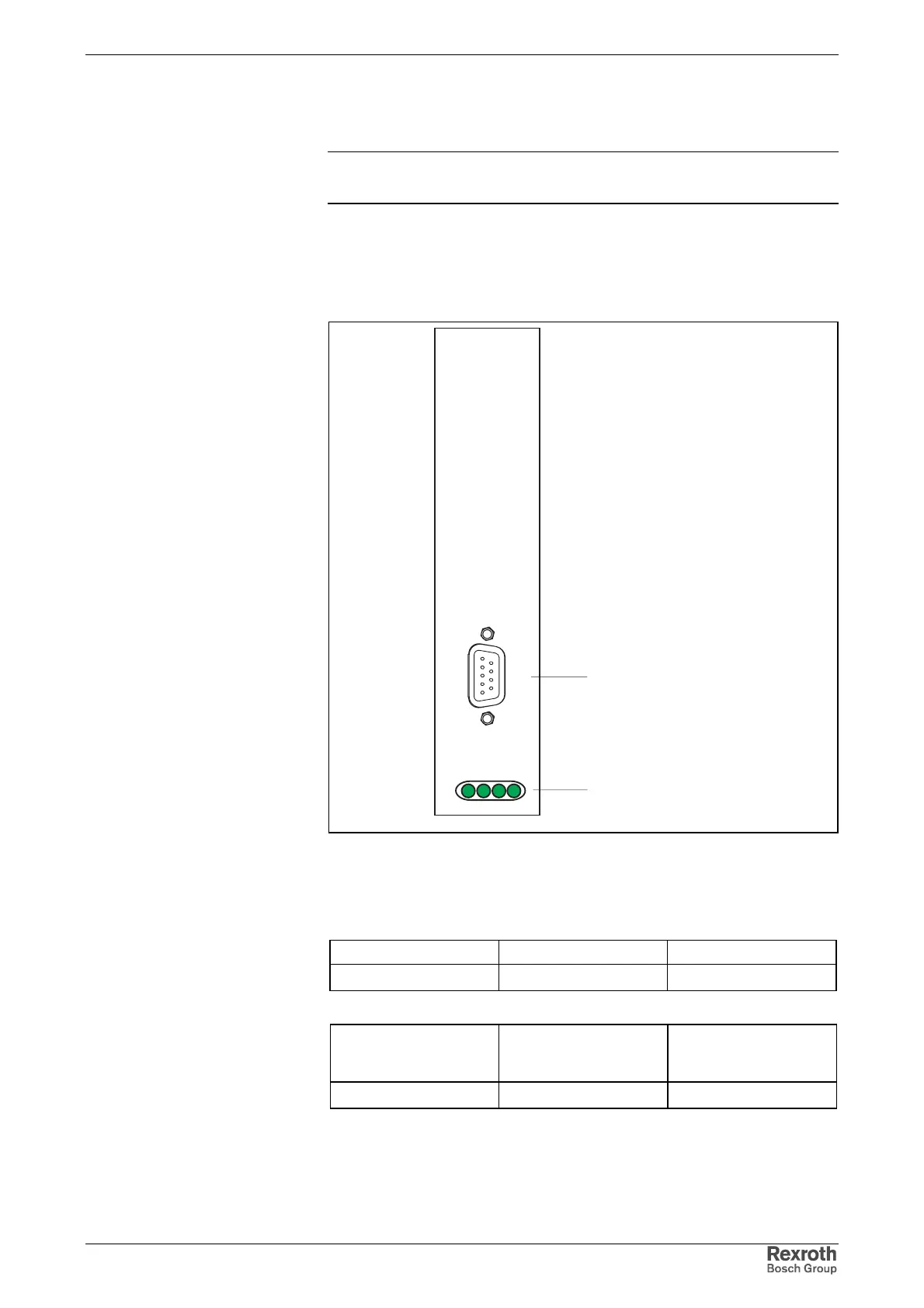

View of Interface to Master Communication
profibus_front.FH7
H33
H30
H31
H32
6
1
5
9
Diagnostic indicators
Profibus interface
(female, 9 pins)
Fig. 5-64: View of interface to master communication
Technical Data of the Terminal Connector
Type Number of poles Type of design
D-SUB 9 bushings on unit
Fig. 5-65: Design
Cross section
single-core
[mm²]
Cross section
multi-core
[mm²]
Cross section
in AWG
gauge No.
-- 0.08-0.5 --
Fig. 5-66: Connection cross section
Design
Connection Cross Section
