REXROTH EcoDrive Cs - Using Cooling Units in the Control Cabinet

Rexroth EcoDrive Cs Drives Designing the Control Cabinet 7-3
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
7.2 Using Cooling Units in the Control Cabinet
Unless the rated data are reduced the drive controller may only be
operated up to a specified maximum ambient temperature (see
chapter 4.3). It is therefore possible that a cooling unit will be required.
CAUTION
Possible damage to the controller
Operational safety of the machine endangered
⇒ Note the following instructions
Due to their operating principle condensation water is formed when
cooling units are used. For this reason, please observe the following
information:
• Always position cooling units in such a way that condensation water
cannot drip onto electronic equipment in the control cabinet.
• Position the cooling unit in such a way that the blower of the cooling
unit does not spray accumulated condensation water onto electronic
equipment.
Eb0001f1.fh7
incorrect
correct
warm cold
Cooling system
Cabinet
warm cold
Air duct
electronic
equipment
electronic
equipment
Cabinet
Cooling system

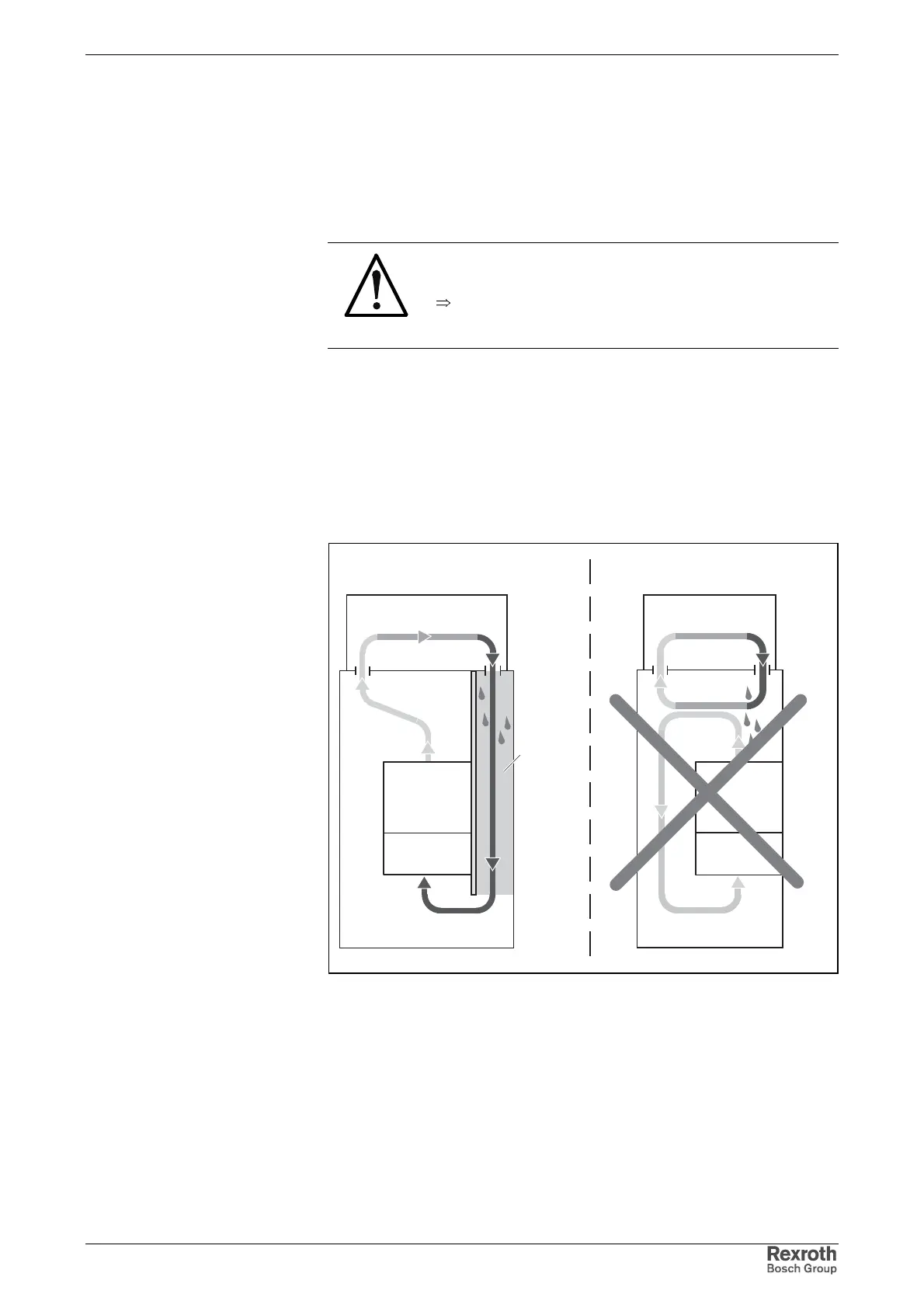

Fig. 7-3: Arranging the cooling unit on the control cabinet
Avoiding Dripping or Spraying
Water
