REXROTH EcoDrive Cs - DKC06.3 - Devicenet Interface with COMBICON Connector

Rexroth EcoDrive Cs Drives Electrical Connections 5-39
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
DKC06.3 – DeviceNet Interface with COMBICON Connector
Note: How to proceed when replacing a master communication
module: see page 5-47.
Master Communication Card
ECM01.1-DN01
View of Interface to Master Communication
devicenet_front.FH7
H65
H63
H61
H64
H62
H60
diagnostic indicators
DeviceNet Interface
(male, 5 pins)
5
1

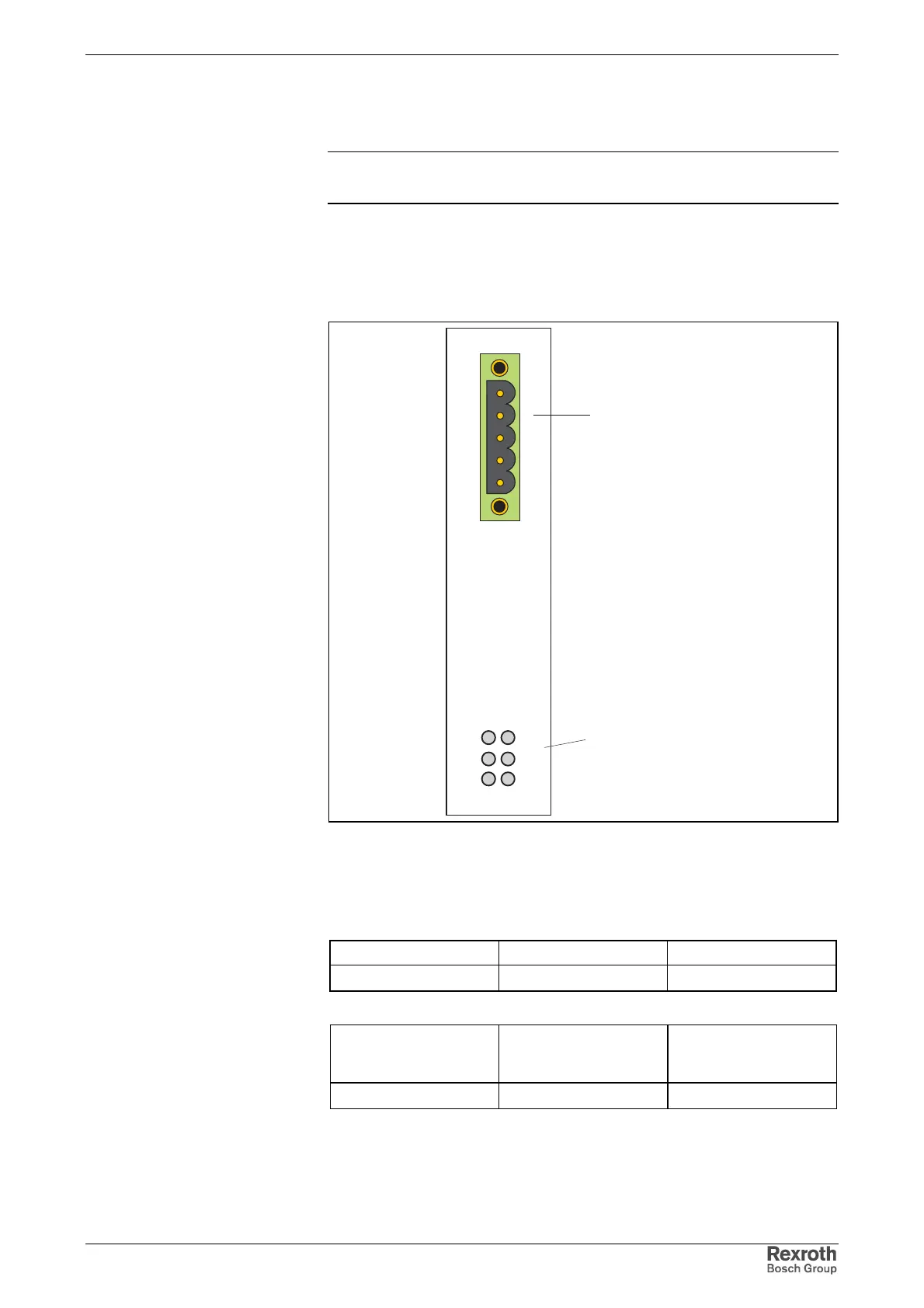

Fig. 5-75: View of interface to master communication
Technical Data of the Terminal Connector
Type Number of poles Type of design
COMBICON 5 sockets on connector
Fig. 5-76: Design
Cross section
single-core
[mm²]
Cross section
multi-core
[mm²]
Cross section
in AWG
gauge No.
0.2-2.5 0.2-1.5 24-16
Fig. 5-77: Connection cross section
Design
Connection Cross Section
