5-38 Electrical Connections Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Siemens Siemens
Ap5077f1.fh7
1
2
1
2
A B
A B
A B
A B
Siemens
on
off
Siemens
Terminating resistor is off
The cable shield must be placed bare on the metal guide

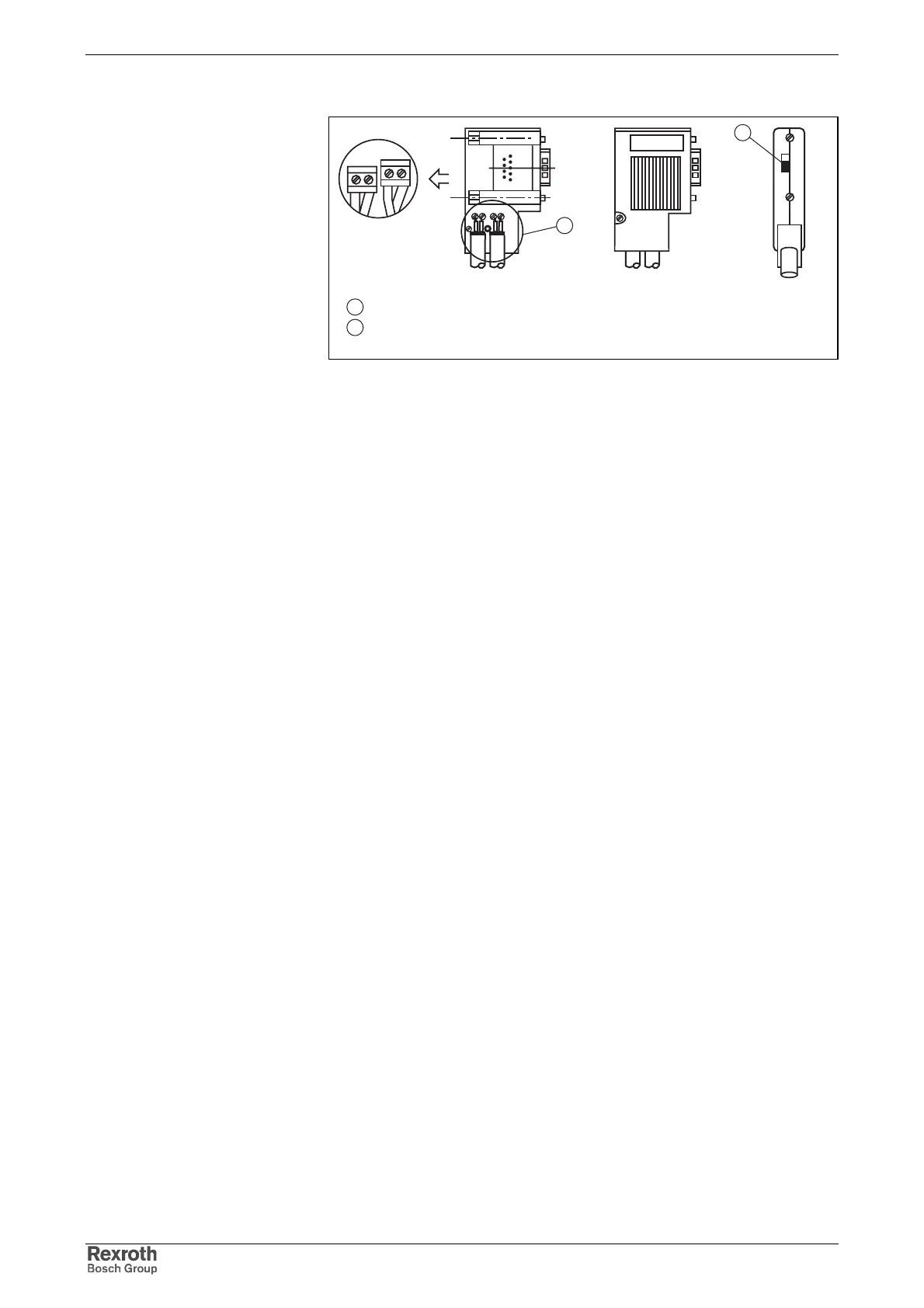

Fig. 5-74: Bus connection for all other slaves without 9-pin D-SUB socket, INS
0540
Connect the drive controller to a control unit using a shielded two-wire
conductor in accordance with DIN 19245/ section 1.
