REXROTH EcoDrive Cs - Mechanical Data

10-24 Additional Components Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Mechanical Data

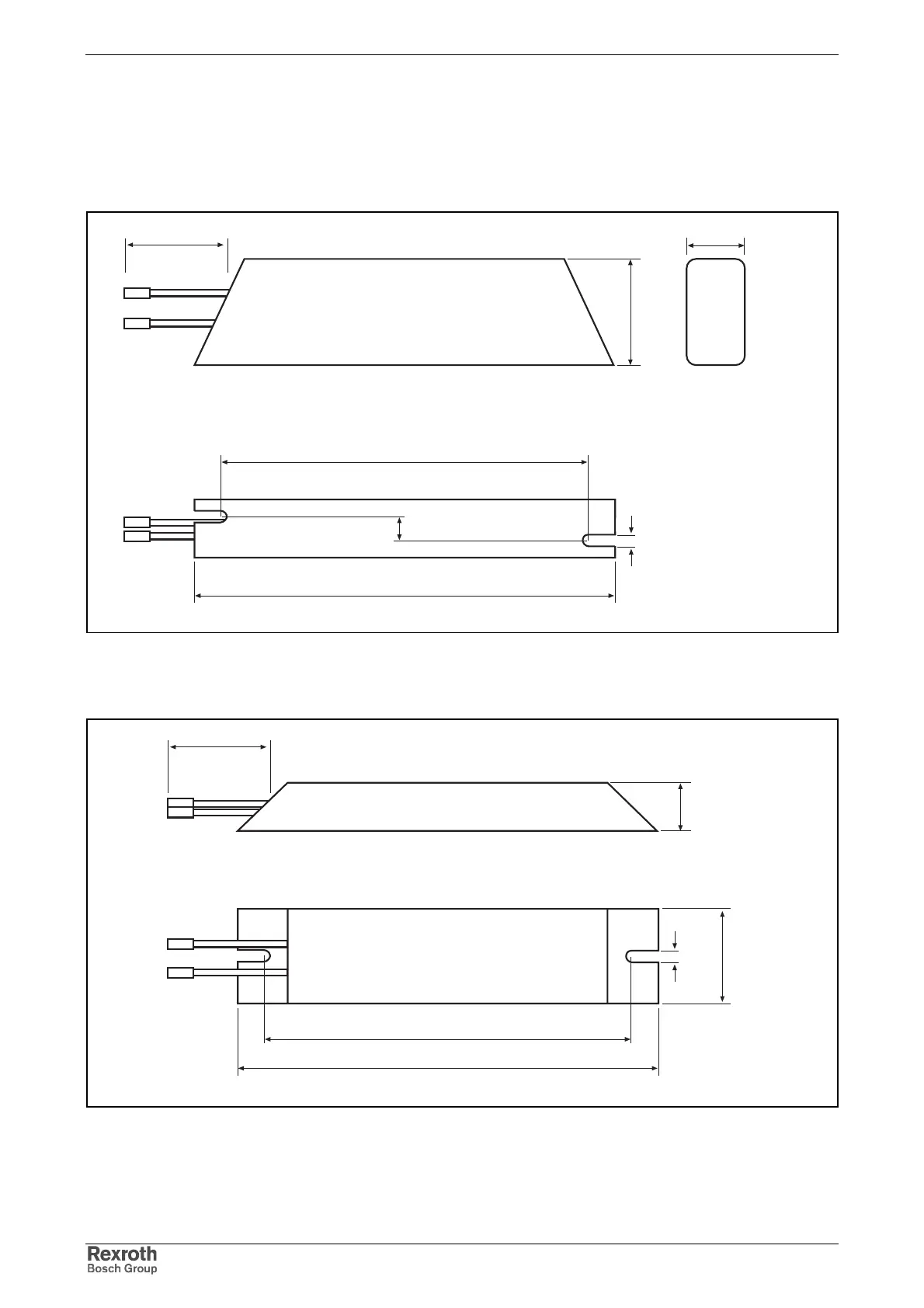

Dimensions
Upright Format
bremsw_ext_v_ecocs.fh7
5
222 ±2
240 ±2
4.3
40
20.6
400 ±5
all dimensions in mm
Fig. 10-33: Dimensions
Flat Format
bremsw_ext_h_ecocs.fh7
20.6
222 ±2
240 ±2
4.3 40
400 ±5
all dimensions in mm
Fig. 10-34: Dimensions
Weight
Approx. 400 g
