Rexroth EcoDrive Cs Drives Mains and Supply Voltage Connection 6-13
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Mains Connection with Phase Currents of Less than 25 A
netzanschluss_kl_25A.fh7
L1 L2 L3
L1C
L2C
L1 L2 L3
L1C
L2C
L1 L2 L3
L1C
L2C
L1 L2 L3
L1C
L2C
L1
L2
L3
max. 2.0 mm
2
F1
T1
F2
K1
A1
A1: mains filter
F1: fuse for transformer
F2: circuit breaker (max. 25 A)
K1: mains contactor
T1: transformer

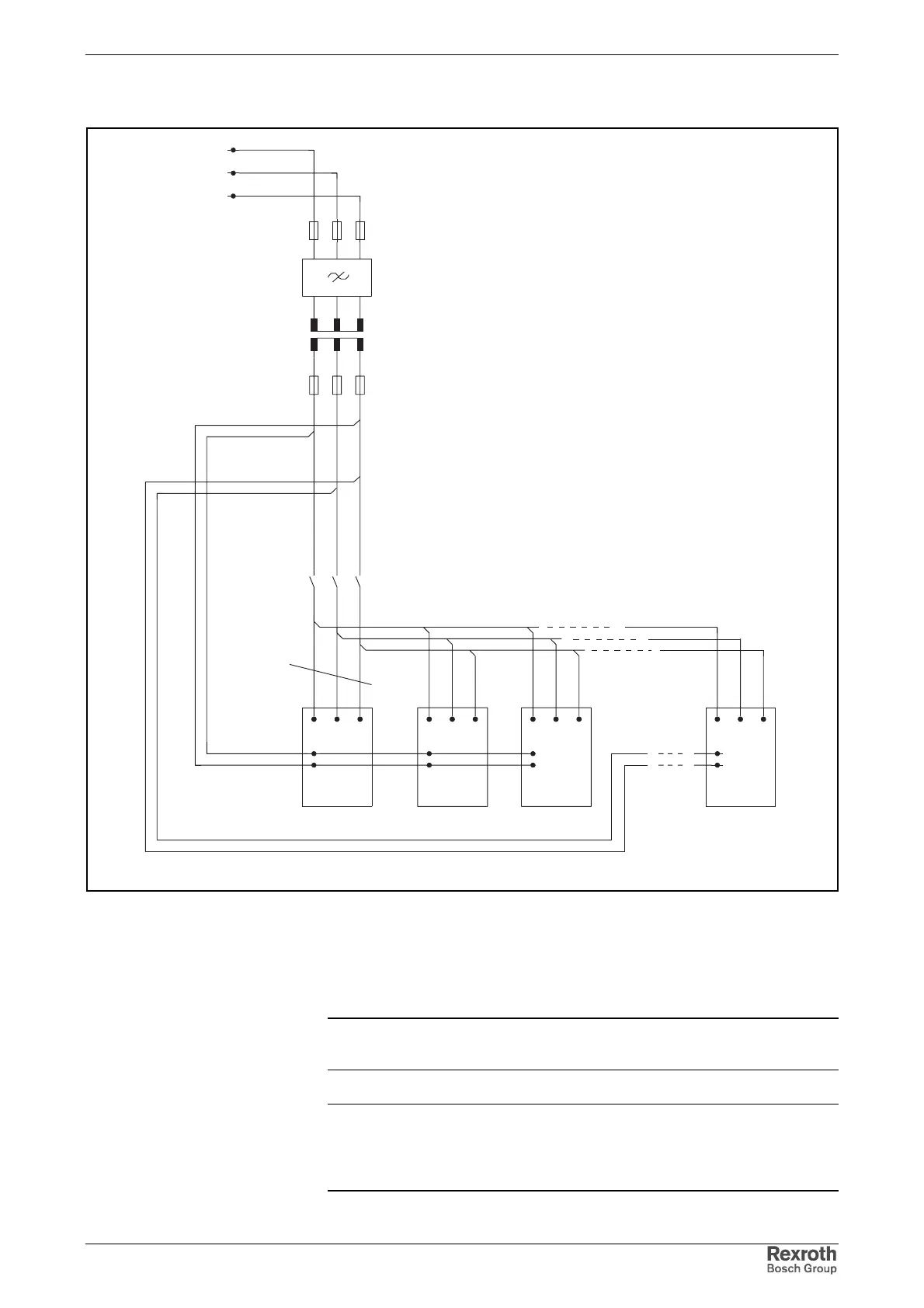

Fig. 6-17: Mains connection with phase currents of less than 25 A
Note: Distribute the control voltage connections symmetrical to the
three phases (see figure above).
Note: For TN systems only:
If you use an autotransformer, connect the star point of the
output side and the PE terminal of the autotransformer with a
common earthing bar.
