Characteristic: Torque - Speed

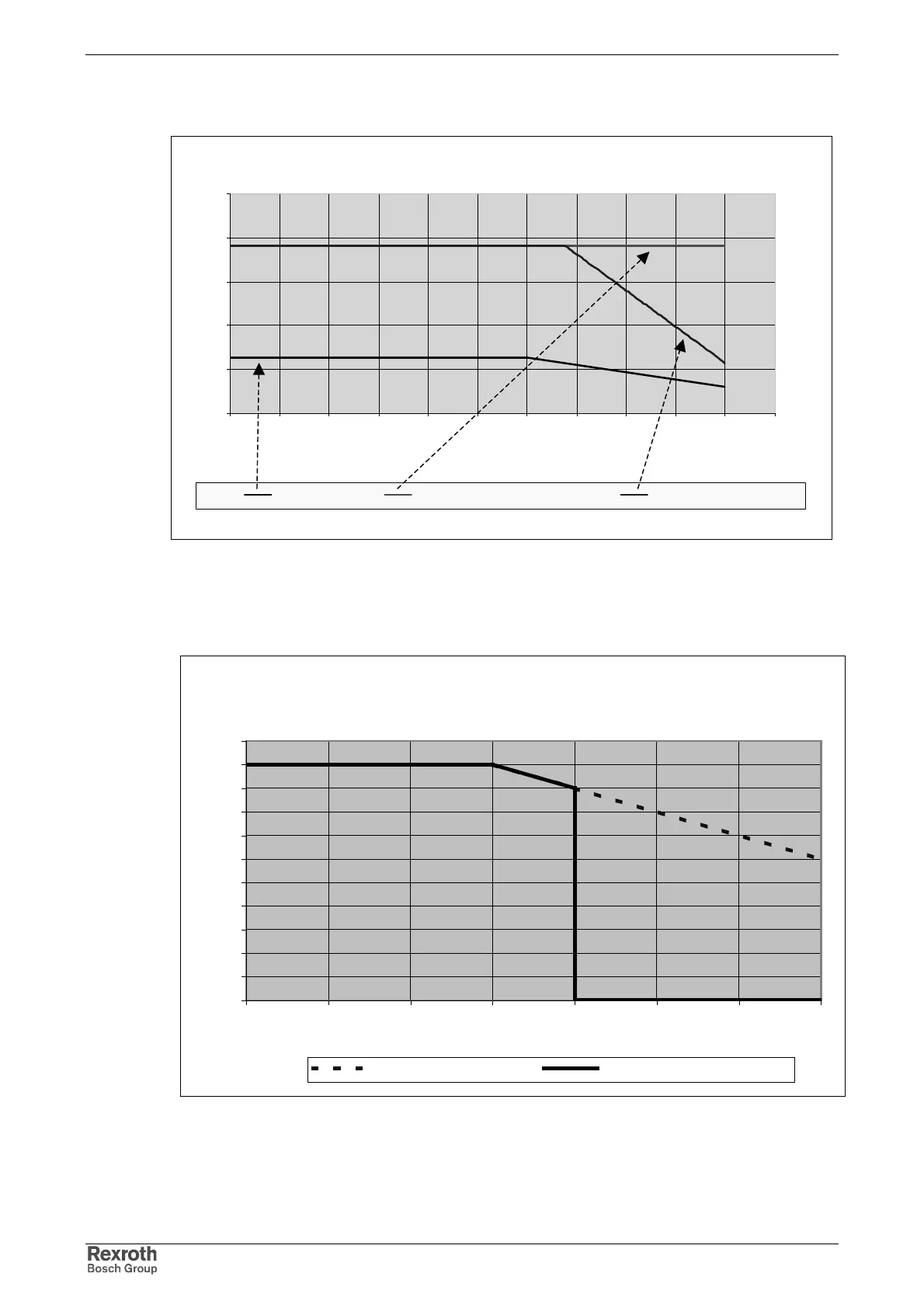

Fig. 8-17: MSM030B torque characteristic
Characteristic: Torque - Temperature
Higher ambient temperatures cause a derating of the available torque:
Fig. 8-18: MSM030B utilization depending on the ambient temperature
0
10
20
30
40
50
60
70
80
90
100
110
0 10203040506070
ambient temperature in °C
constant load in %
with reduced service life without reduced service life
MSM030B-0300-NN-... (ambient 30°C)
0
0,5
1
1,5
2
2,5
0
500
1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
Drehzahl/speed n in min-1
Drehmoment/Torque in Nm
Md Mmax[AC240V+10%] Mmax[AC200V-15%]
