REXROTH EcoDrive Cs - Page 142

8-20 Motors Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
MSM030C-0300-NN-... (ambient 30°C)
0
0,5
1
1,5
2
2,5
3
3,5
4
0
500
1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
Drehzahl/speed n in min-1
Drehmoment/Torque in Nm
Md Mmax[AC240V+10%] Mmax[AC200V-15%]
Characteristic: Torque - Speed

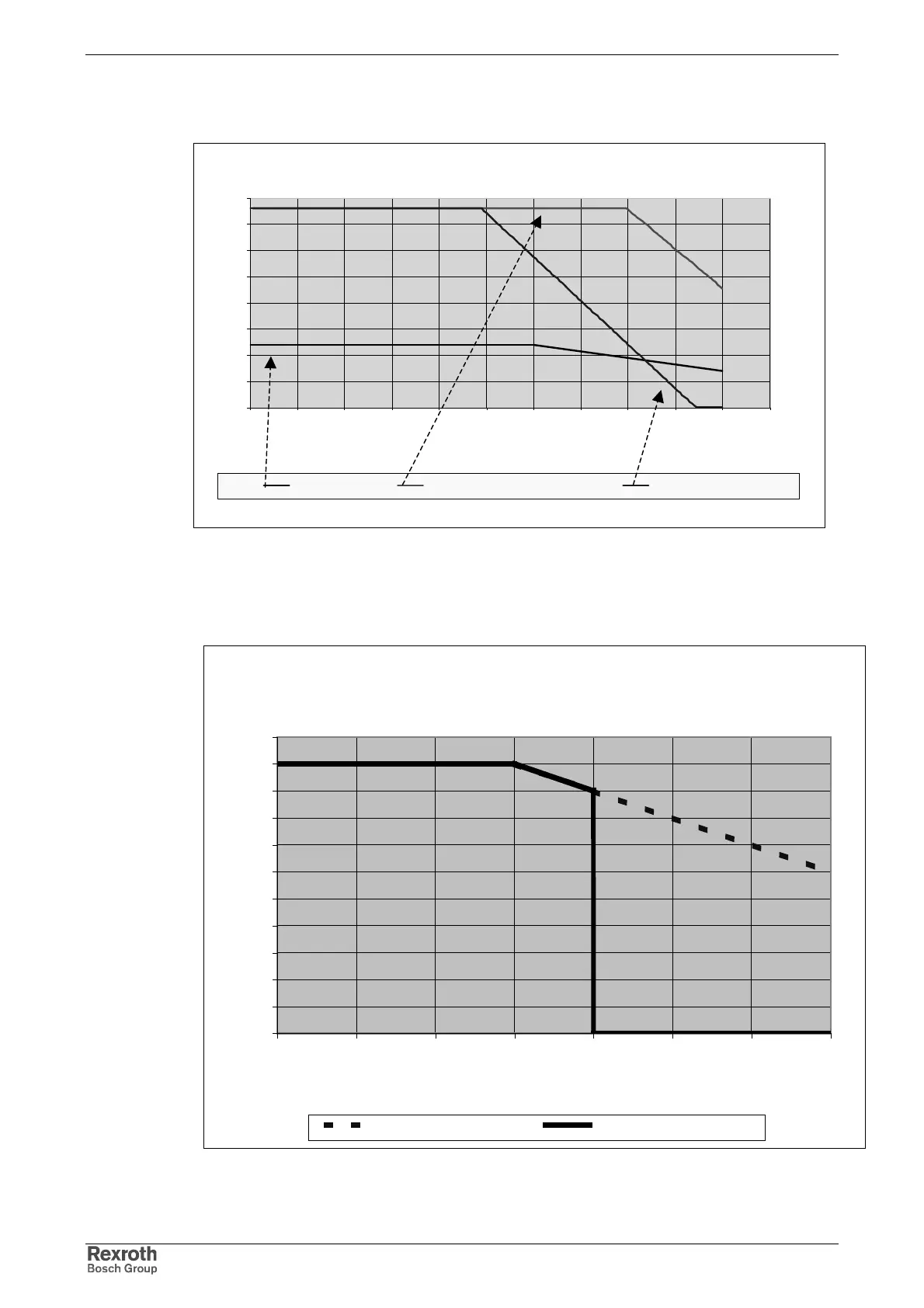

Fig. 8-24: MSM030C torque characteristic
Characteristic: Torque - Temperature
Higher ambient temperatures cause a derating of the available torque:
Fig. 8-25: MSM030C utilization depending on the ambient temperature
MSM030C
0
10
20
30
40
50
60
70
80
90
100
110
0 10203040506070
Ambient temperature in °C
Constant load in %
with reduced service life without reduced service life
