Battery
Motors with absolute encoders need a battery to back-up the encoder
signals. The battery is set into the drive controller (Exception: Rexroth
Cartesian Motion Systems (CMS)).
The drive controller observes voltage of battery and gives just in time a
warning “F248 Low battery voltage".
The service life of the battery depends on the ratio of switch-ON-duration
to switch-OFF-duration:
OFF
ON
t
t
I =
t
ON
: duration, the drive controller is switched on
t
OFF:
duration, the drive controller is switched off
I: ON/OFF ratio
Fig. 8-53: ON/OFF ratio
Service life of battery (Q = 1800 mAh)
0
2
4
6
8
10
12
14
16
18
20
012345678910
I (ON/OFF ratio)
Service life in years
Standby-
operation

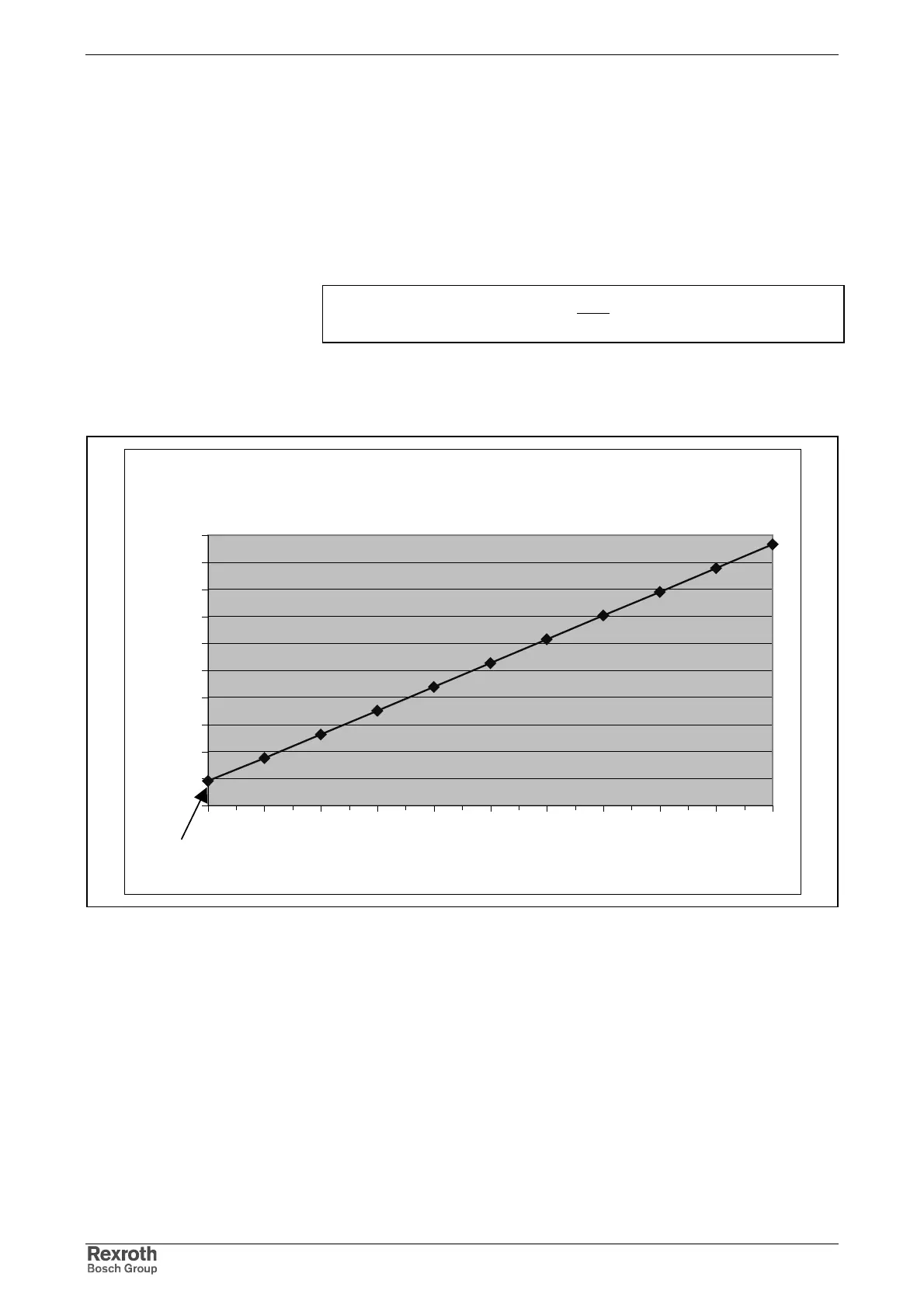

Fig. 8-54: Service life of battery
Thus, the longer the drive controller is switched on, the longer is the
service life of the battery.
Absolute encoders
Warning message
Service life
