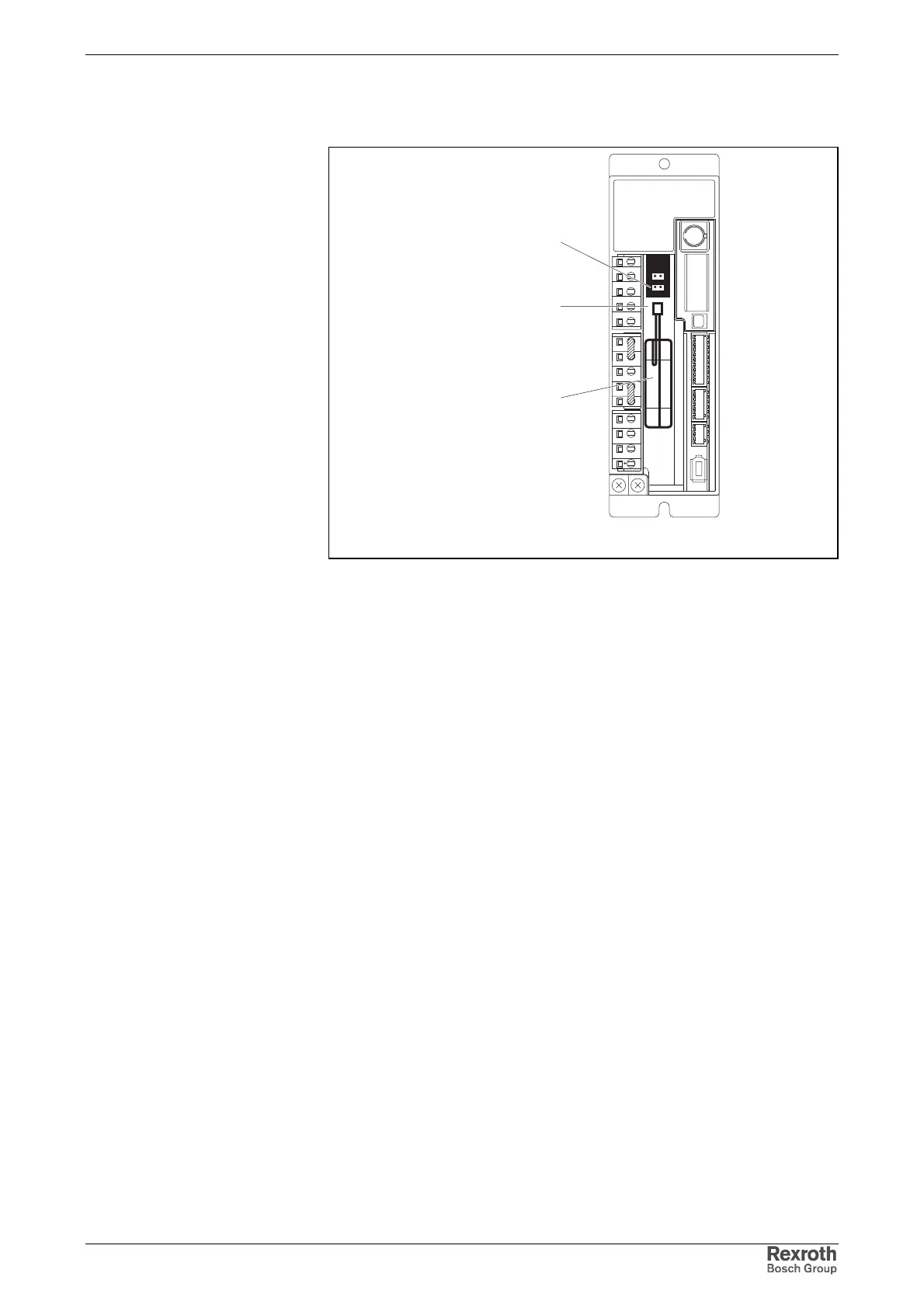

5. Connect connector attached to the battery to one of the two mating
connectors on the drive controller
batteriefach_front.fh7
W
V
U
RB2
RB3
RB1
DL2
DL1
L2C
L1C
L3
L2 L1
mating connector
connector
battery
6. Attach battery cover. Push cover upwards until it snaps in
7. Dispose old battery according to the valid directions of your country
