5-22 Electrical Connections Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
rs232_pc_regler_kabel.FH7
RxD
TxD
GND
DTR
DSR
RTS
CTS
3
2
7
20
6
4
5
max. 15 m
X6
TxD
RxD
GND
DTR
DSR
RTS
CTS
3
2
5
4
6
7
8
max. 15 m
PC with 9-pin
D-SUB connector
TxD
RxD
GND
5
3
4
X6
TxD
RxD
GND
5
3
4
PC with 25-pin
D-SUB connector

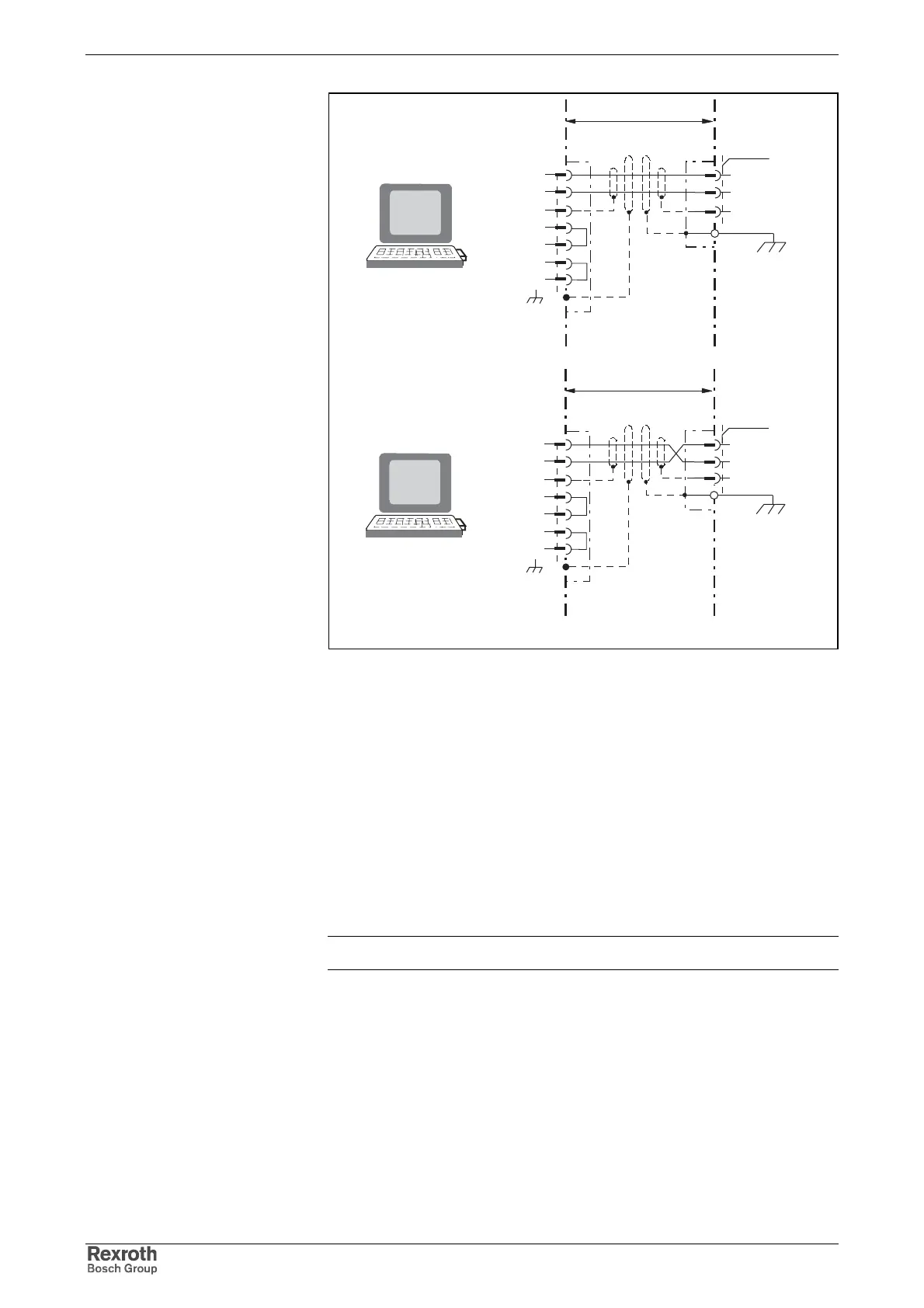

Fig. 5-44: Connecting a PC to the RS232 interface
• number of nodes: a maximum of 1
• transmission distance: a maximum of 15 m
• transmission rates: 9600 and 19200 baud
• 8-bit ASCII protocol
• no parity bit
• 1 stop bit
Using the RS232 interface it is possible to parameterize just one drive at
a time with the assistance of the DriveTop commissioning program.
Note: RS485 communication is impossible!
Features
Particularity
