5-36 Electrical Connections Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Bus Connectors
The PROFIBUS connectors each have a connectable terminating
resistor. The terminating resistor must always be active at both the first
and last bus node. Carry out the connection as shown in the figures
below.
AP5069f1.fh7
OFF
ON
OFF
ON
Bus connection and switch
position for the first and last stations
Bus connection and switch
position for all other stations
shield
A1 B1 A2 B2
5165
A1 B1 A2 B2

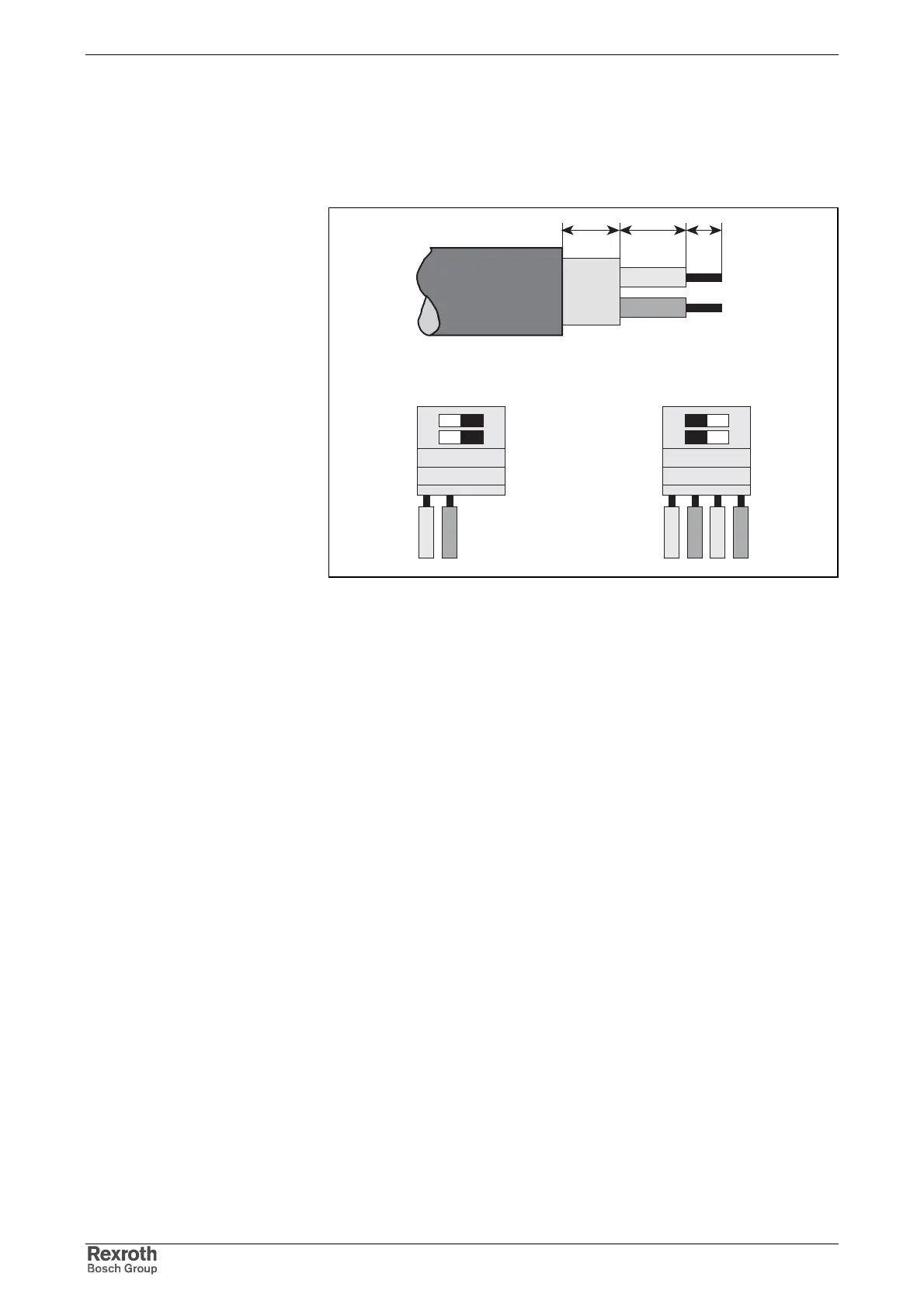

Fig. 5-70: Preparing a cable for connecting a bus connector
